Sony SRG-A40 4K PTZ w/ AI & 40x Zoom

$187.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

Sony SRG-A40 4K Camera
RMT-RC2 Remote
Insert
AC Adapter
Case
Non-Polarized Cable

Resources

Manual

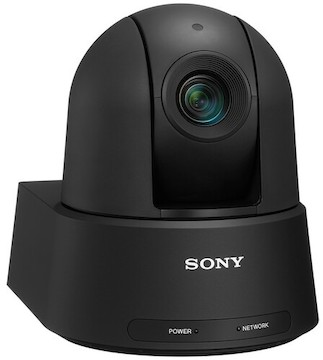

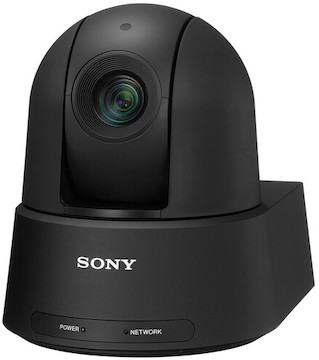

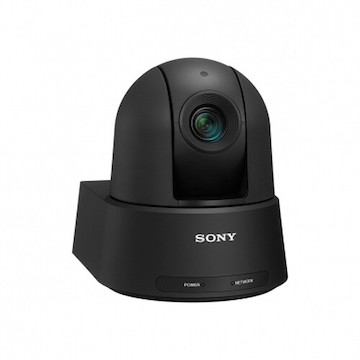

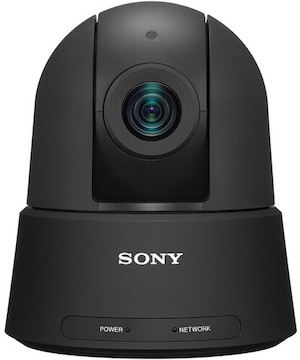

Sony SRG-A40 4K PTZ w/ AI & 40x Zoom

The Sony SRG-A40 4K PTZ w/ AI & 40x Zoom is a comprehensive PTZ camera with NDI|HX and VISCA protocol support designed to automatically frame and track your subject within frame. Key features include:

Up to UHD 4K resolution at 29.97 fps
Built-in AI framing & tracking analytics
Wide 70° angle of view
340° pan and 110° tilt

Audio Recording	2-Channel AAC LC Audio
Brand	Sony
Camera Mount	None
Camera Type	PTZ
Compatibility	Windows 10 to 11 (64-Bit Only) macOS 11 to 12
Compatible Media	External Storage
Control	Presets 256 via CGI 100 via VISCA Move Speed Pan: 0.5 to 300°/sec Tilt: 0.5 to 126°/sec Movement Range Pan: 340° (-170 to 170°) Tilt: 110° (-20 to 90°) Tally Light Yes Supported Control Protocols IR RS-422 VISCA
Environmental	Operating Temperature 32 to 72°F Storage Temperature -4 to 140°F
Exposure Control	Shutter Type Electronic Rolling Shutter Shutter Speed 1/10000 to 1 Second Gain 0 to 48 dB Minimum Illumination 1.6 Lux at 1/30 Shutter Speed Flip / Mirror Support Image Flip White Balance Presets: Auto, Indoors, Manual, One Push, Outdoors
External Video Recording Modes	4:4:4/4:2:2 8-Bit via HDMI 3840 × 2160 at 23.98/25/29.97 fps 1920 × 1080p at 23.98/25/29.97/50/59.94 fps 1920 × 1080i at 50/59.94 fps 1280 × 720 at 50/59.94 fps SDI/BNC / RJ45 3840 × 2160 at 23.98/25/29.97 fps 1920 × 1080p at 23.98/25/29.97/50/59.94 fps 1920 × 1080i at 50/59.94 fps 1280 × 720 at 50/59.94 fps
General	Sound Level NC30 (at Full Speed) Dimensions (W x H x D) 6.2 × 7.2 × 7.9″ Weight 4.4 lb
Imaging	Image Sensor 1/2.5"-Type CMOS Horizontal Resolution (TV Lines) 1700 TV Lines Sensor Resolution Effective: 8.5 Megapixel IR Cut Filter Yes Built-In ND Filter None Focus Control Autofocus Manual Focus

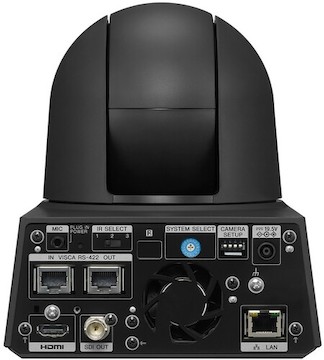

Interface	Video I/O 1 x HDMI Output 1 x BNC (3G-SDI) Output 1 x RJ45 Output Audio I/O 1 × 1/8" / 3.5 mm TRS Stereo Microphone Input Other I/O 1 x RJ45 (RS-422, VISCA) Control Input 1 x RJ45 (RS-422, VISCA) Control Output 1 x RJ45 (LAN) (Shared with Video Output)
Item Type	Camera
Lens	Focal Length 4.4 to 88mm Optical Zoom Ratio 20x Max Digital Zoom 30x ( in DCI 4K) 40x ( in 1080p) Field of View Horizontal: 70° Maximum Aperture f/2 to 3.8 Minimum Focus Distance Wide: 3.1" Telephoto: 31.5"
Maximum Video Resolution	4K
Mounting	1 × 1/4"-20 Female for Tripod
Power	PoE Support PoE++ 802.3bt Power I/O 1 x Barrel (19.5VDC) Input Power Consumption Device: 80 W PoE: 71.3 W
Screen Type	None
Sensor Size	1-Inch
Stabilization	Yes
Video Capture	Broadcast Output NTSC/PAL IP Streaming H.264, H.265, RTP, RTSP, SRT, TCP, UDP 3840 × 2160 at 60p (0.5 to 50.00 Mb/s) 1920 × 1080 at 60p (0.5 to 50.00 Mb/s) 1280 × 720 at 60p (0.5 to 50.00 Mb/s) 640 × 360 at 60p (0.5 to 50.00 Mb/s) IP Multi-Stream Support Simultaneous H.264, H.265, RTP, RTSP, TCP, UDP: UHD 4K, 1080p, 720p, 360p at 60p
Viewfinder Type	None
Weather Sealing	No
Wireless Connectivity	Wi-Fi

See All

Includes

Sony SRG-A40 4K Camera
RMT-RC2 Remote
Insert
AC Adapter
Case
Non-Polarized Cable

Specifications

Audio Recording	2-Channel AAC LC Audio
Brand	Sony
Camera Mount	None
Camera Type	PTZ
Compatibility	Windows 10 to 11 (64-Bit Only) macOS 11 to 12
Compatible Media	External Storage
Control	Presets 256 via CGI 100 via VISCA Move Speed Pan: 0.5 to 300°/sec Tilt: 0.5 to 126°/sec Movement Range Pan: 340° (-170 to 170°) Tilt: 110° (-20 to 90°) Tally Light Yes Supported Control Protocols IR RS-422 VISCA
Environmental	Operating Temperature 32 to 72°F Storage Temperature -4 to 140°F
Exposure Control	Shutter Type Electronic Rolling Shutter Shutter Speed 1/10000 to 1 Second Gain 0 to 48 dB Minimum Illumination 1.6 Lux at 1/30 Shutter Speed Flip / Mirror Support Image Flip White Balance Presets: Auto, Indoors, Manual, One Push, Outdoors
External Video Recording Modes	4:4:4/4:2:2 8-Bit via HDMI 3840 × 2160 at 23.98/25/29.97 fps 1920 × 1080p at 23.98/25/29.97/50/59.94 fps 1920 × 1080i at 50/59.94 fps 1280 × 720 at 50/59.94 fps SDI/BNC / RJ45 3840 × 2160 at 23.98/25/29.97 fps 1920 × 1080p at 23.98/25/29.97/50/59.94 fps 1920 × 1080i at 50/59.94 fps 1280 × 720 at 50/59.94 fps
General	Sound Level NC30 (at Full Speed) Dimensions (W x H x D) 6.2 × 7.2 × 7.9″ Weight 4.4 lb
Imaging	Image Sensor 1/2.5"-Type CMOS Horizontal Resolution (TV Lines) 1700 TV Lines Sensor Resolution Effective: 8.5 Megapixel IR Cut Filter Yes Built-In ND Filter None Focus Control Autofocus Manual Focus
Interface	Video I/O 1 x HDMI Output 1 x BNC (3G-SDI) Output 1 x RJ45 Output Audio I/O 1 × 1/8" / 3.5 mm TRS Stereo Microphone Input Other I/O 1 x RJ45 (RS-422, VISCA) Control Input 1 x RJ45 (RS-422, VISCA) Control Output 1 x RJ45 (LAN) (Shared with Video Output)
Item Type	Camera
Lens	Focal Length 4.4 to 88mm Optical Zoom Ratio 20x Max Digital Zoom 30x ( in DCI 4K) 40x ( in 1080p) Field of View Horizontal: 70° Maximum Aperture f/2 to 3.8 Minimum Focus Distance Wide: 3.1" Telephoto: 31.5"
Maximum Video Resolution	4K
Mounting	1 × 1/4"-20 Female for Tripod
Power	PoE Support PoE++ 802.3bt Power I/O 1 x Barrel (19.5VDC) Input Power Consumption Device: 80 W PoE: 71.3 W
Screen Type	None
Sensor Size	1-Inch
Stabilization	Yes
Video Capture	Broadcast Output NTSC/PAL IP Streaming H.264, H.265, RTP, RTSP, SRT, TCP, UDP 3840 × 2160 at 60p (0.5 to 50.00 Mb/s) 1920 × 1080 at 60p (0.5 to 50.00 Mb/s) 1280 × 720 at 60p (0.5 to 50.00 Mb/s) 640 × 360 at 60p (0.5 to 50.00 Mb/s) IP Multi-Stream Support Simultaneous H.264, H.265, RTP, RTSP, TCP, UDP: UHD 4K, 1080p, 720p, 360p at 60p
Viewfinder Type	None
Weather Sealing	No
Wireless Connectivity	Wi-Fi

See All

Resources

Manual

Reviews

See Reviews

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$32.00	$131.00	$163.00	$54.33
4 days	$34.00	$140.00	$174.00	$43.50
7 days	$45.00	$187.00	$232.00	$33.14
10 days	$61.00	$252.00	$313.00	$31.30
14 days	$79.00	$327.00	$406.00	$29.00
21 days	$106.00	$439.00	$545.00	$25.95
30 days	$133.00	$552.00	$685.00	$22.83
45 days	$173.00	$720.00	$893.00	$19.84
60 days	$203.00	$842.00	$1045.00	$17.42
90 days	$261.00	$1085.00	$1346.00	$14.96

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$21.00	$131.00	$152.00	$50.67
4 days	$23.00	$140.00	$163.00	$40.75
7 days	$30.00	$187.00	$217.00	$31.00
10 days	$41.00	$252.00	$293.00	$29.30
14 days	$53.00	$327.00	$380.00	$27.14
21 days	$71.00	$439.00	$510.00	$24.29
30 days	$89.00	$552.00	$641.00	$21.37
45 days	$116.00	$720.00	$836.00	$18.58
60 days	$135.00	$842.00	$977.00	$16.28
90 days	$174.00	$1085.00	$1259.00	$13.99

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$131.00	$43.67
4 days	$140.00	$35.00
7 days	$187.00	$26.71
10 days	$252.00	$25.20
14 days	$327.00	$23.36
21 days	$439.00	$20.90
30 days	$552.00	$18.40
45 days	$720.00	$16.00
60 days	$842.00	$14.03
90 days	$1085.00	$12.06
