Teradek Bolt 6 LT 1500 RX / TX w/ Antenna Array (V-Mount)

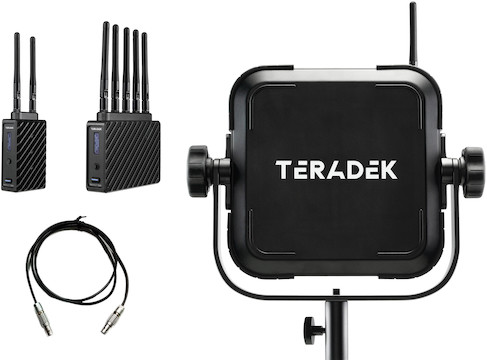

The Teradek Bolt 6 LT 1500 RX / TX w/ Antenna Array (V-Mount) package offers zero-delay transmission of 4K video across the 6 GHz frequency band. This package includes:

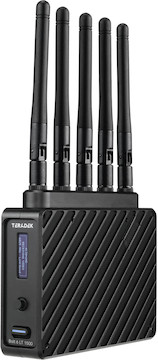

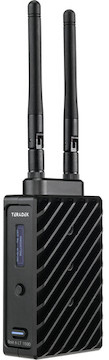

Powerful Transmission. The Teradek Bolt 6 LT 1500 3G-SDI/HDMI Receiver receives up to 4K30 video with 10-bit HDR. This receiver is compatible with all Bolt 6 transmitters, like the one included in this kit, using the newly available 6 GHz frequency band. It also works great with any Bolt 4K transmitter using the 5 GHz signal spectrum. Either transmitter can simultaneously transmit to up to six receivers from up to 1500 feet away.

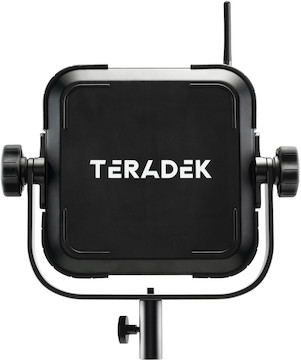

Give me a Boost. The Teradek Antenna Array is a 14-inch panel that boosts and focuses signal reception to establish a stronger connection between the transmitter and receiver. If you’re worried about crowds or other interference, you’re in the right place.

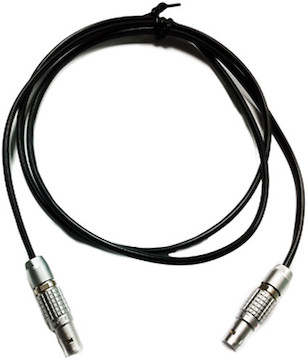

One Less Cable. The Bolt 6 transmitter is powered by a d-tap cable, but the receiver comes with a pre-installed V-Mount battery plate, and the antenna array has a plate for mounting the receiver. Thank us later. This package doesn’t include any batteries, so pick up a few, and maybe a charger, here. The antenna array has a 5/8" receiver for mounting to a lightstand, as well as the aforementioned mount for the receiver, and the transmitter comes with handy 1/4"-20 mounting threads so you can mount it…pretty much anywhere.

Q & A

  • Does this rental include a V-mount battery?
    • No, but you can satisfy your battery cravings here.

  • Specifications

    Brand

    Teradek

    Inputs/Outputs

    Transmitter
    Antenna I/O

    • 2 x RP-SMA Female
    Video I/O
    • 1 x HDMI 1.4b Input
    • 1 x BNC (3G-SDI) Input
    • 1 x BNC (3G-SDI) Loop Output
    Embedded Audio
    • HDMI: 2-Channel
    • SDI: 2-Channel
    Audio I/O
    • None
    Power I/O
    • 1 x LEMO 2-Pin (28 VDC) Input
    Other I/O
    • 1 x Micro-USB Input
    Encryption
    • 256-Bit AES
    Receiver
    Antenna I/O
    • 5 x RP-SMA Female
    Video I/O
    • 1 x HDMI 1.4b Output
    • 1 x BNC (3G-SDI) Output
    Embedded Audio
    • HDMI: 2-Channel
    • SDI: 2-Channel
    Audio I/O
    • None
    Power I/O
    • 1 x LEMO 2-Pin (28 VDC) Input
    Other I/O
    • 1 x Micro-USB Input
    Encryption
    • 256-Bit AES

    Item Type

    Monitoring and Wireless Video

    Monitoring Type

    Wireless

    Mounting

    Transmitter

    • 1 × 1/4"-20 Female
    Receiver
    • 1 × 1/4"-20 Female
    • 1 × 3/8"-16 Female

    Video Format

    HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)

    • UHD 4K: 30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 480p: 60/59.94
    • 576i: 50
    • 480i: 59.94
    SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 576i: 50
    • 480p: 60/59.94
    • 480i: 59.94

    Wireless

    Frequency Range

    • 4.9 – 7.5 GHz
    Gain
    • 14 dBi
    • 16 dBi
    Beam-width
    • Horizontal: 75°
    • Vertical: 35 °
    Impedance
    • 50 ohm

    Wireless Range

    1500’ Line-of-Sight

    Specifications

    Brand

    Teradek

    Inputs/Outputs

    Transmitter
    Antenna I/O

    • 2 x RP-SMA Female
    Video I/O
    • 1 x HDMI 1.4b Input
    • 1 x BNC (3G-SDI) Input
    • 1 x BNC (3G-SDI) Loop Output
    Embedded Audio
    • HDMI: 2-Channel
    • SDI: 2-Channel
    Audio I/O
    • None
    Power I/O
    • 1 x LEMO 2-Pin (28 VDC) Input
    Other I/O
    • 1 x Micro-USB Input
    Encryption
    • 256-Bit AES
    Receiver
    Antenna I/O
    • 5 x RP-SMA Female
    Video I/O
    • 1 x HDMI 1.4b Output
    • 1 x BNC (3G-SDI) Output
    Embedded Audio
    • HDMI: 2-Channel
    • SDI: 2-Channel
    Audio I/O
    • None
    Power I/O
    • 1 x LEMO 2-Pin (28 VDC) Input
    Other I/O
    • 1 x Micro-USB Input
    Encryption
    • 256-Bit AES

    Item Type

    Monitoring and Wireless Video

    Monitoring Type

    Wireless

    Mounting

    Transmitter

    • 1 × 1/4"-20 Female
    Receiver
    • 1 × 1/4"-20 Female
    • 1 × 3/8"-16 Female

    Video Format

    HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)

    • UHD 4K: 30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 480p: 60/59.94
    • 576i: 50
    • 480i: 59.94
    SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 576i: 50
    • 480p: 60/59.94
    • 480i: 59.94

    Wireless

    Frequency Range

    • 4.9 – 7.5 GHz
    Gain
    • 14 dBi
    • 16 dBi
    Beam-width
    • Horizontal: 75°
    • Vertical: 35 °
    Impedance
    • 50 ohm

    Wireless Range

    1500’ Line-of-Sight
