Teradek Bolt 6 LT 750 3G-SDI/HDMI Kit

$217.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

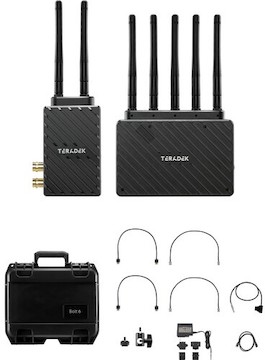

Includes

Bolt 6 LT 750 Transmitter
Bolt 6 LT 750 Receiver
USB Male to Micro B
2-pin LEMO to D-Tap
AC Adapter
Hot Shoe to 1/4-20"
5/8 Receiver w/ 1/4-20 Threading
(7) Antennas

Resources

Manual

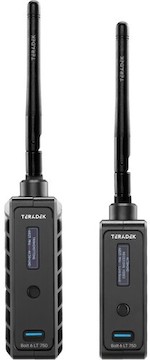

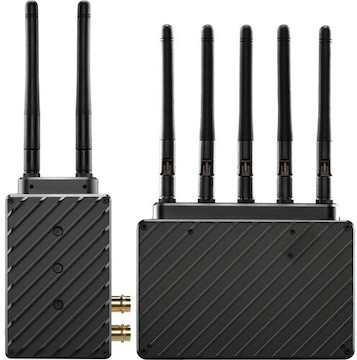

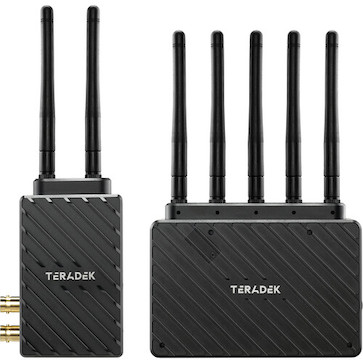

Teradek Bolt 6 LT 750 3G-SDI/HDMI Kit

The Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Kit features the Bolt 6 750 Transmitter & Bolt 6 750 Receiver. Key features include:

3G-SDI/HDMI transmitter and receiver set
Transmits up to 750 feet
Compatible with Bolt 4K series
Supports new 6 GHz frequency band

Q & A

Does this rental include cables?

Nah, just the power cables. We have a lengthy list of available SDI and HDMI cables listed under the recommended section of your screen!

Does this kit include a battery plate for external Gold Mount or V-Mount batteries?

No, not with this rental. We do have both the Gold Mount and V-Mount versions of this kit though!

Specifications

Brand	Teradek
Environmental	IP Rating None Operating Temperature 32 to 72°F
Format Support	Audio Format 2-Channel 24-Bit 48 kHz Timecode Support Yes
Frequency Range	Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz
General	Material of Construction Aluminum Polycarbonate Dimensions Transmitter: 4.1 × 2.4 × 1.3″ Receiver: 4.8 × 3.7 × 1.1″ Weight Transmitter: 7.3 oz Receiver: 10.3 oz

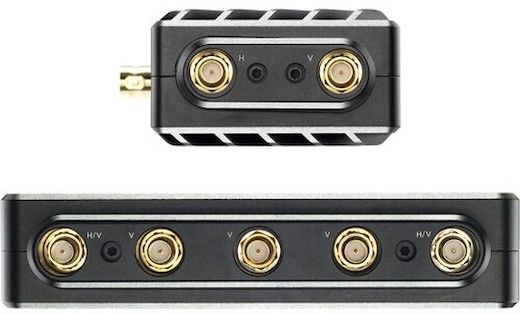

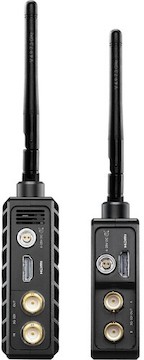

Inputs/Outputs	Antenna I/O Transmitter: 2 x RP-SMA Female Receiver: 5 x RP-SMA Female Video I/O Transmitter: 1 x HDMI 1.4b Input Transmitter: 1 x BNC (3G-SDI) Input Transmitter: 1 x BNC (3G-SDI) Loop Output Receiver: 1 x HDMI 1.4b Output Receiver: 1 x BNC (3G-SDI) Output Embedded Audio HDMI: 2-Channel SDI: 2-Channel Audio I/O None Power Transmitter/Receiver: 1 x LEMO 2-Pin Input Other I/O Transmitter/Receiver: 1 x Micro-USB Input Encryption 256-Bit AES
Item Type	Monitoring & Recording
Monitoring & Recording Type	Transmitter, Receiver, and Kit

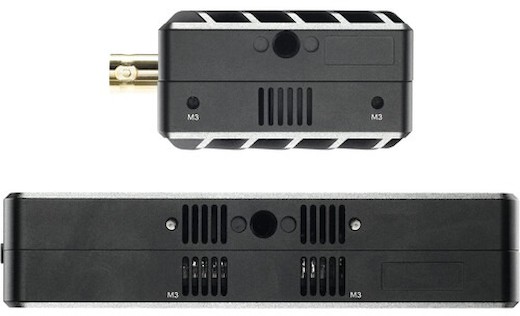

Mounting	1 × 1/4"-20 Female 1 × 3/8"-16 Female
Power	DC Input Power 6 to 28 VDC Power Consumption Transmitter: 9 W Receiver: 11 W
Video Format	HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94
Wireless	Wireless Range 750’ Channel Bandwidth 40 MHz, 20 MHz Latency <0.01 ms RF Power 23 dBm Wi-Fi None Bluetooth Yes

See All

Includes

Bolt 6 LT 750 Transmitter
Bolt 6 LT 750 Receiver
USB Male to Micro B
2-pin LEMO to D-Tap
AC Adapter
Hot Shoe to 1/4-20"
5/8 Receiver w/ 1/4-20 Threading
(7) Antennas

Specifications

Brand	Teradek
Environmental	IP Rating None Operating Temperature 32 to 72°F
Format Support	Audio Format 2-Channel 24-Bit 48 kHz Timecode Support Yes
Frequency Range	Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz
General	Material of Construction Aluminum Polycarbonate Dimensions Transmitter: 4.1 × 2.4 × 1.3″ Receiver: 4.8 × 3.7 × 1.1″ Weight Transmitter: 7.3 oz Receiver: 10.3 oz
Inputs/Outputs	Antenna I/O Transmitter: 2 x RP-SMA Female Receiver: 5 x RP-SMA Female Video I/O Transmitter: 1 x HDMI 1.4b Input Transmitter: 1 x BNC (3G-SDI) Input Transmitter: 1 x BNC (3G-SDI) Loop Output Receiver: 1 x HDMI 1.4b Output Receiver: 1 x BNC (3G-SDI) Output Embedded Audio HDMI: 2-Channel SDI: 2-Channel Audio I/O None Power Transmitter/Receiver: 1 x LEMO 2-Pin Input Other I/O Transmitter/Receiver: 1 x Micro-USB Input Encryption 256-Bit AES
Item Type	Monitoring & Recording
Monitoring & Recording Type	Transmitter, Receiver, and Kit
Mounting	1 × 1/4"-20 Female 1 × 3/8"-16 Female
Power	DC Input Power 6 to 28 VDC Power Consumption Transmitter: 9 W Receiver: 11 W
Video Format	HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94
Wireless	Wireless Range 750’ Channel Bandwidth 40 MHz, 20 MHz Latency <0.01 ms RF Power 23 dBm Wi-Fi None Bluetooth Yes

See All

Resources

Manual

Reviews

See Reviews
