Teradek Bolt 6 LT 750 3G-SDI/HDMI Receiver (V-Mount)

$118.00
/
7 Day

Rental

Interested in purchasing?

Includes

  • Teradek Bolt 6 LT 750 3G-SDI/HDMI Receiver (V-Mount)
  • 5/8 Receiver w/ 1/4-20 Threading
  • V-Mount Plate (Female)
  • V-Mount Plate (Male)
  • (5) Antenna
  • 2-pin LEMO AC Adapter
  • D-Tap cable
  • USB 2.0 A Male to Micro B cable

Resources

  • Manual
  • Teradek Bolt 6 LT 750 3G-SDI/HDMI Receiver (V-Mount)

    The Teradek Bolt 6 LT 750 3G-SDI/HDMI Receiver (V-Mount) enables you to receive 4K30 HD video from up to 750-feet away. Key features include:

    • V-Mount battery plate

    • Compatible with all Bolt 4K transmitters

    • 3G-SDI and HDMI outputs

    • Receives 4K30 video

    Read More

    Q & A

  • What transmitters can I use with this thing?
    • This receiver is compatible with all Bolt 6 & Bolt 4K transmitters!

  • Does this rental include V-Mount batteries?
    • This rental does not include V-Mount batteries or a charger, but they can be rented separately here.

  • Specifications

    Brand

    Teradek

    Environmental

    IP Rating

    • None
    Operating Temperature
    • 32 to 72°F

    Format Support

    Video Format
    HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)

    • UHD 4K: 30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 480p: 60/59.94
    • 576i: 50
    • 480i: 59.94
    SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 576i: 50
    • 480p: 60/59.94
    • 480i: 59.94
    Audio Format
    • 2-Channel 24-Bit 48 kHz
    Timecode Support
    • Yes

    General

    Material of Construction

    • Aluminum, Polycarbonate
    Dimensions
    • 4.8 × 3.7 × 1.1″ (Excluding Battery Plate)
    Weight
    • 10.3 oz (Excluding Battery Plate)

    Inputs/Outputs

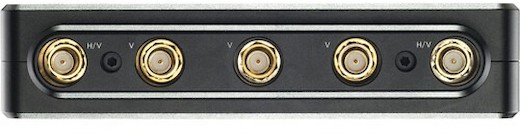

    Antenna I/O

    • 5 x RP-SMA Female
    Video I/O
    • 1 x HDMI 1.4b Output
    • 1 x BNC (3G-SDI) Output
    Embedded Audio
    • HDMI: 2-Channel
    • SDI: 2-Channel
    Audio I/O
    • None
    Power I/O
    • 1 x LEMO 2-Pin (28 VDC) Input
    Other I/O
    • 1 x Micro-USB Input
    Encryption
    • 256-Bit AES

    Item Type

    Monitoring

    Monitoring Type

    Wireless

    Mounting

  • 1 × 1/4"-20 Female
  • 1 × 3/8"-16 Female

  • See All

    Includes

    • Teradek Bolt 6 LT 750 3G-SDI/HDMI Receiver (V-Mount)
    • 5/8 Receiver w/ 1/4-20 Threading
    • V-Mount Plate (Female)
    • V-Mount Plate (Male)
    • (5) Antenna
    • 2-pin LEMO AC Adapter
    • D-Tap cable
    • USB 2.0 A Male to Micro B cable

    Specifications

    Brand

    Teradek

    Environmental

    IP Rating

    • None
    Operating Temperature
    • 32 to 72°F

    Format Support

    Video Format
    HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)

    • UHD 4K: 30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 480p: 60/59.94
    • 576i: 50
    • 480i: 59.94
    SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 576i: 50
    • 480p: 60/59.94
    • 480i: 59.94
    Audio Format
    • 2-Channel 24-Bit 48 kHz
    Timecode Support
    • Yes

    General

    Material of Construction

    • Aluminum, Polycarbonate
    Dimensions
    • 4.8 × 3.7 × 1.1″ (Excluding Battery Plate)
    Weight
    • 10.3 oz (Excluding Battery Plate)

    Inputs/Outputs

    Antenna I/O

    • 5 x RP-SMA Female
    Video I/O
    • 1 x HDMI 1.4b Output
    • 1 x BNC (3G-SDI) Output
    Embedded Audio
    • HDMI: 2-Channel
    • SDI: 2-Channel
    Audio I/O
    • None
    Power I/O
    • 1 x LEMO 2-Pin (28 VDC) Input
    Other I/O
    • 1 x Micro-USB Input
    Encryption
    • 256-Bit AES

    Item Type

    Monitoring

    Monitoring Type

    Wireless

    Mounting

  • 1 × 1/4"-20 Female
  • 1 × 3/8"-16 Female

  • See All

    Resources

  • Manual
