Teradek Spark 4K Transmitter / Receiver Set

$109.00
/
7 Day

Rental

Includes

  • Spark 4K TX
  • Spark 4K RX
  • Hot shoe to 1/4-20 adapter
  • 5/8 receiver w/ 1/4-20 threading
  • AC adapter
  • USB-C cable
  • Type-C 9V/3A 1-Port QC USB charger

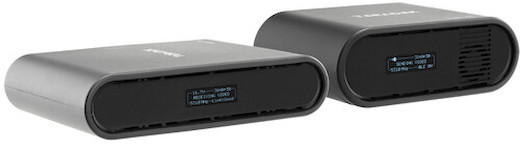

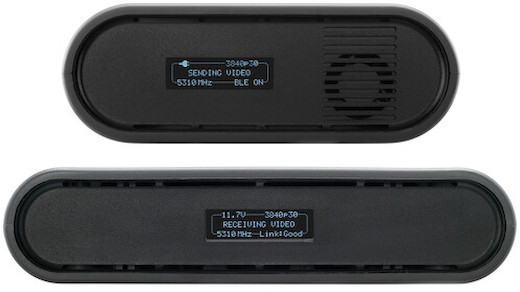

Teradek Spark 4K Transmitter / Receiver Set

The Teradek Spark 4K Transmitter / Receiver Set is an affordable wireless video system capable of outputting 4K30 10-bit 4:2:2 HDR video with zero delay. Key features include:

  • Transmit wireless, encrypted 4K video without delay up to 500-feet line-of-sight

  • Compact, lightweight design

  • 10-Bit 4:2:2 color sampling

  • Visually lossless transmission for up to 2 hours

Read More

Q & A

  • Will the transmitter and receiver come paired?
    • No. For best performance, the transmitter and receiver should be paired on location, and you can do so with the Teradek Launchpad app (iOS) (Android).

  • Does this rental include an HDMI cable?
    • No. If you need an extra HDMI cable for your workflow, you can find more here or on the left-hand side of the screen.

  • Can one Spark transmitter be used with multiple receivers?
    • Yes! Each Spark 4K transmitter can send its signal to up to 2 different receivers.

    • If you need multiple transmitters for your shoot, the Spark 4K system allows up to 4 kits to operate in the same area at once.

  • Specifications

    Brand

    Teradek

    Item Type

    Monitoring

    Monitoring Type

    Wireless

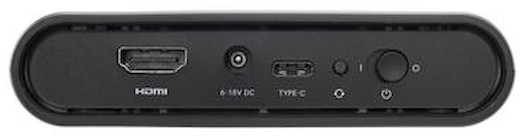

    Receiver

    Outputs

    • HDMI Type A (1x)
    Dimensions
    • 4.4 × 3.2 × 1″
    Weight (RX Only)
    • 6.6 oz
    Mount Compatibility
    • 1/4"-20
    • M3
    Multicast Capable
    • 2 (RX):1 (TX)

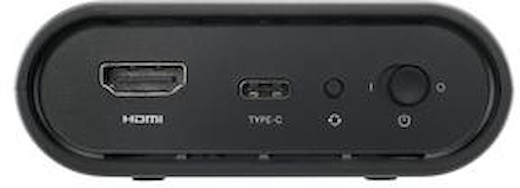

    Transmitter

    Inputs

    • HDMI Type A (1x)
    • USB Type-C (1x)
    • Micro-USB (1x)
    Dimensions
    • 3.4 × 2.7 × 0.05″
    Weight (TX Only)
    • 5.6 oz
    Multicast Capable
    • 1 (TX):2 (RX)

    Video Processing

    Color Sampling

    • RGB 4:2:2, 10-bit
    Supported Formats
    • 4K: 23.98/24/25/29.97/30
    • 1080p: 23.98/24/25/29.97/30/50/59.94/60
    • 1080i: 50/59.94/60
    • 720p: 50/59.94/60

    Wireless

    Latency

    • <0.001 sec
    Range
    • Up to 500’ line of sight (under ideal conditions)
    Non-DFS Frequencies
    • 5.19 ~ 5.23 GHz
    • 5.755 ~ 5.795 GHz (US only)
    DFS Frequencies
    • US: 5.27 ~ 5.55 GHz and 5.67 GHz
    • EU & JP: 5.27 ~ 5.67 GHz

    Includes

    • Spark 4K TX
    • Spark 4K RX
    • Hot shoe to 1/4-20 adapter
    • 5/8 receiver w/ 1/4-20 threading
    • AC adapter
    • USB-C cable
    • Type-C 9V/3A 1-Port QC USB charger

    Specifications

    Brand

    Teradek

    Item Type

    Monitoring

    Monitoring Type

    Wireless

    Receiver

    Outputs

    • HDMI Type A (1x)
    Dimensions
    • 4.4 × 3.2 × 1″
    Weight (RX Only)
    • 6.6 oz
    Mount Compatibility
    • 1/4"-20
    • M3
    Multicast Capable
    • 2 (RX):1 (TX)

    Transmitter

    Inputs

    • HDMI Type A (1x)
    • USB Type-C (1x)
    • Micro-USB (1x)
    Dimensions
    • 3.4 × 2.7 × 0.05″
    Weight (TX Only)
    • 5.6 oz
    Multicast Capable
    • 1 (TX):2 (RX)

    Video Processing

    Color Sampling

    • RGB 4:2:2, 10-bit
    Supported Formats
    • 4K: 23.98/24/25/29.97/30
    • 1080p: 23.98/24/25/29.97/30/50/59.94/60
    • 1080i: 50/59.94/60
    • 720p: 50/59.94/60

    Wireless

    Latency

    • <0.001 sec
    Range
    • Up to 500’ line of sight (under ideal conditions)
    Non-DFS Frequencies
    • 5.19 ~ 5.23 GHz
    • 5.755 ~ 5.795 GHz (US only)
    DFS Frequencies
    • US: 5.27 ~ 5.55 GHz and 5.67 GHz
    • EU & JP: 5.27 ~ 5.67 GHz
