Teradek Bolt 6 LT 750 3G-SDI/HDMI Kit (V-Mount)

$237.00
/
7 Day

Rental

Available Tuesday

Renting this item will adjust your rental dates.

Interested in purchasing?

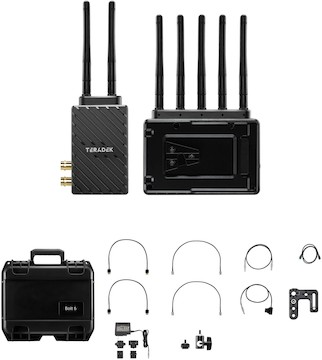

Includes

  • Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter
  • Receiver
  • USB 2.0 A Male to Micro B
  • Hot Shoe to 1/4-20" Adapter
  • (7) Antenna
  • D-Tap Cable
  • 2-pin LEMO AC adapter
  • 5/8 Receiver w/ 1/4-20 Threading
  • V-Mount Plate (Female)
  • V-Mount Plate (Male)

Teradek Bolt 6 LT 750 3G-SDI/HDMI Kit (V-Mount)

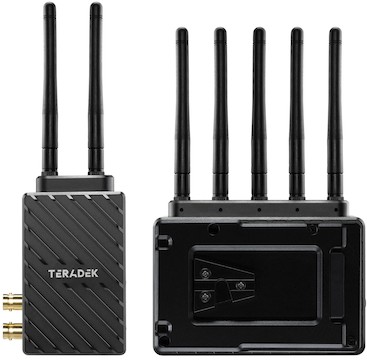

The Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Kit (V-Mount) consists of a wireless transmitter and receiver that can wirelessly receive up to 4K30 video with an included V-Mount battery plate for fuel. Key features include:

  • HDMI and 3G-SDI inputs and outputs

  • Powered by V-Mount

  • Transmit up to 4K30 video

  • Compatible with Bolt 4K LT TX/RX units

Read More

Q & A

  • Does this rental include battery plates or batteries?
    • This kit does include the plates needed for V-Mount power, but not the batteries. You can find our large selection for rent here!

  • Is this compatible with previous Teradek Bolt Pro models?
    • Yes! This kit is compatible with all Bolt 6 and Bolt 4K models.

  • Specifications

    Brand

    Teradek

    Environmental

    IP Rating

    • None
    Operating Temperature
    • 32 to 72°F

    Format Support Video Format
    HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
    • UHD 4K: 30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 480p: 60/59.94
    • 576i: 60
    • 480i: 59.94
    SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
    • 1080p: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 576i: 50
    • 480p: 60/59.94
    • 480i: 59.94
    Audio Format
    • 2-Channel 24-Bit 48 kHz
    Timecode Support
    • Yes
    General

    Material of Construction

    • Aluminum, Polycarbonate
    Dimensions
    • Transmitter: 4.1 × 2.4 × 1.3″
    • Receiver: 4.8 × 3.7 × 1.1″
    Weight
    • Transmitter: 7.3 oz
    • Receiver: 10.3 oz

    Inputs/Outputs

    Antenna I/O

    • Transmitter: 2 x RP-SMA Female
    • Receiver: 5 x RP-SMA Female
    Video I/O
    • Transmitter: 1 x HDMI 1.4b Input
    • Transmitter: 1 x BNC (3G-SDI) Input
    • Transmitter: 1 x BNC (3G-SDI) Loop Output
    • Receiver: 1 x HDMI 1.4b Output
    • Receiver: 1 x BNC (3G-SDI) Output
    Embedded Audio
    • HDMI: 2-Channel
    • SDI: 2-Channel
    Audio I/O
    • None
    Power
    • Transmitter/Receiver: 1 x LEMO 2-Pin Input
    Other I/O
    • Transmitter/Receiver: 1 x Micro-USB Input
    Encryption
    • 256-Bit AES

    Item Type

    Monitoring

    Monitoring Type

    Wireless

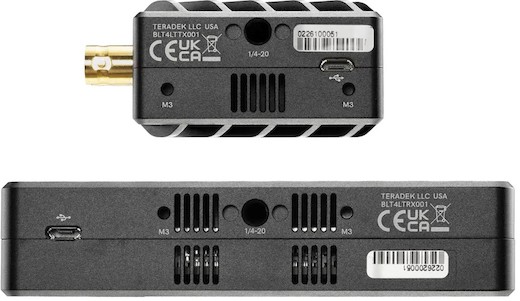

    Mounting

  • 1 × 1/4"-20 Female
  • 1 × 3/8"-16 Female

  • See All

    Includes

    • Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter
    • Receiver
    • USB 2.0 A Male to Micro B
    • Hot Shoe to 1/4-20" Adapter
    • (7) Antenna
    • D-Tap Cable
    • 2-pin LEMO AC adapter
    • 5/8 Receiver w/ 1/4-20 Threading
    • V-Mount Plate (Female)
    • V-Mount Plate (Male)

    Specifications

    Brand

    Teradek

    Environmental

    IP Rating

    • None
    Operating Temperature
    • 32 to 72°F

    Format Support Video Format
    HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
    • UHD 4K: 30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 480p: 60/59.94
    • 576i: 60
    • 480i: 59.94
    SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
    • 1080p: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 576i: 50
    • 480p: 60/59.94
    • 480i: 59.94
    Audio Format
    • 2-Channel 24-Bit 48 kHz
    Timecode Support
    • Yes
    General

    Material of Construction

    • Aluminum, Polycarbonate
    Dimensions
    • Transmitter: 4.1 × 2.4 × 1.3″
    • Receiver: 4.8 × 3.7 × 1.1″
    Weight
    • Transmitter: 7.3 oz
    • Receiver: 10.3 oz

    Inputs/Outputs

    Antenna I/O

    • Transmitter: 2 x RP-SMA Female
    • Receiver: 5 x RP-SMA Female
    Video I/O
    • Transmitter: 1 x HDMI 1.4b Input
    • Transmitter: 1 x BNC (3G-SDI) Input
    • Transmitter: 1 x BNC (3G-SDI) Loop Output
    • Receiver: 1 x HDMI 1.4b Output
    • Receiver: 1 x BNC (3G-SDI) Output
    Embedded Audio
    • HDMI: 2-Channel
    • SDI: 2-Channel
    Audio I/O
    • None
    Power
    • Transmitter/Receiver: 1 x LEMO 2-Pin Input
    Other I/O
    • Transmitter/Receiver: 1 x Micro-USB Input
    Encryption
    • 256-Bit AES

    Item Type

    Monitoring

    Monitoring Type

    Wireless

    Mounting

  • 1 × 1/4"-20 Female
  • 1 × 3/8"-16 Female

  • See All
