Blackmagic URSA Mini Pro 12K OLPF Gold Mount Kit (PL)

$380.00

7 Day

Rental

Available Tomorrow

Renting this item will adjust your rental dates.

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

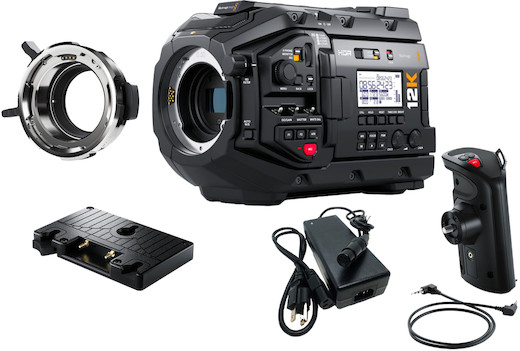

Includes

URSA Mini Pro 12K OLPF
URSA Mini Handgrip
Gold Mount Battery Plate
PL Lens Mount
URSA Mini LANC Cable
3 Prong Power Cord 6ft
AC Adapter
Phillips Screwdriver #0
Molex Cover Plate 30 × 71mm
Battery Plate Hardware

Blackmagic URSA Mini Pro 12K OLPF Gold Mount Kit (PL)

The Blackmagic URSA Mini Pro 12K OLPF Gold Mount Kit (PL) is a kit that we here at LensRentals put together to add a handgrip and Gold Mount power to your URSA Mini Pro 12K OLPF. Key features include:

User-changeable PL lens mount
Dual CFast 2.0 or SD card recording
4K Super16 up to 220 fps
Updated IR filtering

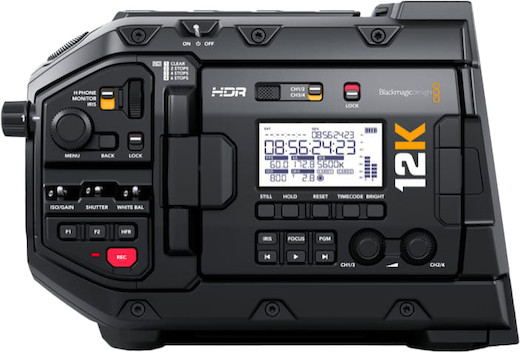

What’s Changed? The external body of the Blackmagic Design URSA Mini Pro 12K OLPF is mostly unchanged in this update, and instead, the sensor is the star of the show. Blackmagic has implemented their own sensor design that can record up to 12K at 60fps. That quite a jump from the previous 4.6K sensor used in the Mini Pro G2. Recording and control options remain largely the same aside from the removal of any codecs other than Blackmagic RAW. You’ll find no ProRes options here.

Professional Features. With the URSA Mini Pro 12K, you get a raft of external controls that eliminate menu diving for focus assist, frame rate, and exposure settings. There’s an exterior LCD that provides at-a-glance shooting data, a four-position ND filtration wheel (0/2/4/6-stops), and dual CFast 2.0 and UHS-II capable SD memory card slots. Carried over from the Mini Pro G2 is recording to USB Type-C SSD drives, and a new Blackmagic Design URSA Mini Pro 12K Recorder allows for full-quality 12K recording to compatible 2.5-inch SSDs.

PL Mount & OLPF. This camera is compatible with cinema lenses that utilize ARRI’s PL (positive lock) mount. There is also an added layer of lens communication with lenses capable of sharing lens data via Cooke i/Technology. The included optical low pass filter (OLPF) is a new addition to this series, and helps minimize unwanted image interface.

Handgrip Talk. The Blackmagic Design URSA Mini Handgrip is an add-on accessory compatible with all versions of the URSA Mini and URSA Mini Pro cameras. It provides record start/stop, iris control, and focus control buttons in an ergonomic design with a rubber thumb rest. It attaches to the side of the camera via a standard rosette mount and over an included LANC cable, and it’s powered over the cable.

Gold Mount Plate. This Blackmagic Design URSA/URSA Mini Gold Mount Battery Plate enables Gold Mount power to your Blackmagic URSA or URSA Mini/Mini Pro, and features both a Molex connector and D-Tap output.

Looking for an SSD? If you’re looking for an SSD recording solution for this camera, check out the Blackmagic Design URSA Mini Pro 12K Recorder.

Q & A

Does this rental include a battery?

Nah, just the battery plate. Check out the Recommended section of your screen for available battery options.

Do I need specific media to capture 12K?

Yes. Please refer to Blackmagic’s Support Page for the most recent list of approved media or contact us and a tech will be happy to help you determine which storage solution is right for you.

Specifications

Brand	Blackmagic
Environmental	Operating Temperature 32.0 to 104.0°F Storage Temperature -4 to 113°F Operating Humidity 0 to 90%
Exposure Control	Shutter Type Electronic Rolling Shutter ISO Sensitivity 125 to 3200 Advertised Dynamic Range 14 Stops
Focus Modes	Automatic, Manual Focus
Focus Type	Auto and Manual Focus
General	Accessory Mount 4 × 1/4"-20 Female 1 x ARRI/Hirth Rosette Dimensions (W x H x D) 9.2 × 5.92 × 5.87″ Weight 5.62 lb
Imaging	Lens Mount ARRI PL Lens Communication Yes Sensor Resolution Effective: 79.6 Megapixel (12,288 × 6480) Image Sensor 27.03 × 14.25 mm (Super35) CMOS Image Stabilization None Built-In ND Filter Mechanical Filter Wheel with Clear 2-Stop (1/4) 4-Stop (1/16) 6-Stop (1/64) ND Filters Capture Type Stills & Video
Interface	Media/Memory Card Slot Dual Slot: CFast (CFast 2.0) Dual Slot: SD/SDHC/SDXC (UHS-II) Video I/O 1 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Output 1 x BNC (3G-SDI) Output Audio I/O 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Output 1 × 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output Power I/O 1 x XLR 4-Pin Input 1 x Molex 12-Pin Input/Output 1 x XLR 4-Pin (12VDC) Output Other I/O 1 x USB-C (USB 3.2 / 3.1 Gen 2) 1 x USB-C Data Input Wireless None Mobile App Compatible Yes *As of January, 2023: Check with manufacturer for the most up-to-date compatibility Global Positioning (GPS, GLONASS, etc.) None
Item Type	Package
Monitor	Size 4.0" Display Type Articulating Touchscreen LCD Secondary Display Side: Status Display
Package Type	Blackmagic Video
Still Image Capture	Aspect Ratio 1:1 2:1 4:3 4:5 16:9 Image File Format Raw
Video Capture	Internal Recording Modes Blackmagic RAW 12-Bit 12288 × 6480 up to 60.00 fps [72 to 578 Mb/s] 11520 × 6480 up to 60.00 fps 12288 × 5112 up to 75 fps 7680 × 6408 8192 × 4320 [32 to 258 Mb/s] 7680 × 4320 8192 × 3408 up to 160 fps 5120 × 4272 up to 160 fps 6144 × 3240 [18 to 145 Mb/s] 4096 × 2160 up to 240 fps [8 to 65 Mb/s] 3840 × 2160 4096 × 1704 up to 160 fps 2560 × 2136 up to 160 fps External Recording Modes Raw via USB 12288 × 6480 8192 × 4320 6144 × 3240 4096 × 2160 Sensor Crop Modes Super35 / APS-C Fast-/Slow-Motion Support Yes Broadcast Output NTSC/PAL Built-In Microphone Type Stereo Audio Recording 2-Channel 24-Bit 48 kHz IP Streaming None

See All

Includes

URSA Mini Pro 12K OLPF
URSA Mini Handgrip
Gold Mount Battery Plate
PL Lens Mount
URSA Mini LANC Cable
3 Prong Power Cord 6ft
AC Adapter
Phillips Screwdriver #0
Molex Cover Plate 30 × 71mm
Battery Plate Hardware

Specifications

Brand	Blackmagic
Environmental	Operating Temperature 32.0 to 104.0°F Storage Temperature -4 to 113°F Operating Humidity 0 to 90%
Exposure Control	Shutter Type Electronic Rolling Shutter ISO Sensitivity 125 to 3200 Advertised Dynamic Range 14 Stops
Focus Modes	Automatic, Manual Focus
Focus Type	Auto and Manual Focus
General	Accessory Mount 4 × 1/4"-20 Female 1 x ARRI/Hirth Rosette Dimensions (W x H x D) 9.2 × 5.92 × 5.87″ Weight 5.62 lb
Imaging	Lens Mount ARRI PL Lens Communication Yes Sensor Resolution Effective: 79.6 Megapixel (12,288 × 6480) Image Sensor 27.03 × 14.25 mm (Super35) CMOS Image Stabilization None Built-In ND Filter Mechanical Filter Wheel with Clear 2-Stop (1/4) 4-Stop (1/16) 6-Stop (1/64) ND Filters Capture Type Stills & Video
Interface	Media/Memory Card Slot Dual Slot: CFast (CFast 2.0) Dual Slot: SD/SDHC/SDXC (UHS-II) Video I/O 1 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Output 1 x BNC (3G-SDI) Output Audio I/O 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Output 1 × 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output Power I/O 1 x XLR 4-Pin Input 1 x Molex 12-Pin Input/Output 1 x XLR 4-Pin (12VDC) Output Other I/O 1 x USB-C (USB 3.2 / 3.1 Gen 2) 1 x USB-C Data Input Wireless None Mobile App Compatible Yes *As of January, 2023: Check with manufacturer for the most up-to-date compatibility Global Positioning (GPS, GLONASS, etc.) None
Item Type	Package
Monitor	Size 4.0" Display Type Articulating Touchscreen LCD Secondary Display Side: Status Display
Package Type	Blackmagic Video
Still Image Capture	Aspect Ratio 1:1 2:1 4:3 4:5 16:9 Image File Format Raw
Video Capture	Internal Recording Modes Blackmagic RAW 12-Bit 12288 × 6480 up to 60.00 fps [72 to 578 Mb/s] 11520 × 6480 up to 60.00 fps 12288 × 5112 up to 75 fps 7680 × 6408 8192 × 4320 [32 to 258 Mb/s] 7680 × 4320 8192 × 3408 up to 160 fps 5120 × 4272 up to 160 fps 6144 × 3240 [18 to 145 Mb/s] 4096 × 2160 up to 240 fps [8 to 65 Mb/s] 3840 × 2160 4096 × 1704 up to 160 fps 2560 × 2136 up to 160 fps External Recording Modes Raw via USB 12288 × 6480 8192 × 4320 6144 × 3240 4096 × 2160 Sensor Crop Modes Super35 / APS-C Fast-/Slow-Motion Support Yes Broadcast Output NTSC/PAL Built-In Microphone Type Stereo Audio Recording 2-Channel 24-Bit 48 kHz IP Streaming None

See All
