VRI Phantom VEO4K 990S High Speed Camera (PL)

$3256.00
/
7 Day

Rental

Available 10/20/21

Renting this item will adjust your rental dates.

Includes

  • VRI Phantom VEO4K PL-RLS (72GB)
  • VRI Phantom VEO4K PL Mount
  • VRI 24V / 80W for Phantom VEO4K AC Adapter
  • 3 Prong Universal Power Cord 6ft
  • VRI AD-CBL-VEO-BATT-T2 Power Adapter
  • VRI Trigger Pickle Switch 6- foot
  • VRI-CBL-DIN-BNC Adapter 12-inch

VRI Phantom VEO4K 990S High Speed Camera (PL)

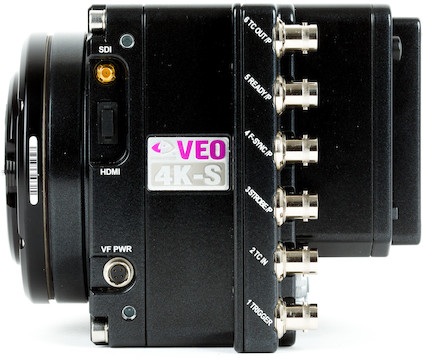

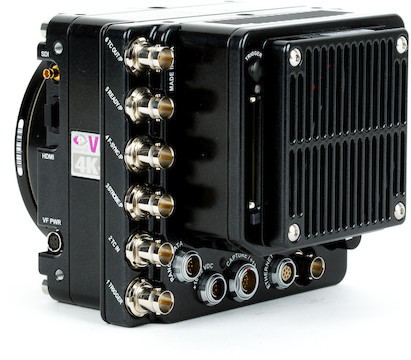

The VRI Phantom VEO4K 990S High Speed Camera (PL) is a high speed camera boasting the same image and frame rate performance as a Flex4K-GS camera, in a compact form. This rental is for the camera body and PL mount only. Key features include:

  • Super35, 31.7mm, 12-bit CMOS sensor with dual shutter

  • Capture 4K up to 1000 fps, 2K up to 1970 fps

  • 72GB RAM for longer record times

  • VEO4K, PL mount, powering accessories, and trigger switch included

Read More

Q & A

  • Do you carry this in an EF mount?
    • Yes! We carry the VEO4K in an EF mount as well as in several kit configurations.

  • Does this rental include the 10Gb ethernet option?
    • This camera does have the 10Gb Ethernet option installed, but we do not send the required cable by default. If you require this feature, make the request in the special instructions box at checkout.

  • What are the benefits of the dual shutter?
    • The Global Shutter is recommended for scientific measurements, light synchronization, or reducing shutter artifacts. When using the GS, black shading becomes imperative before each capture, you lose approximately 9 stops from your dynamic range, and the base ISO raises to 640, making it more prone to noise.

    • The Rolling Shutter broadens your dynamic range to 12.5 stops, has low noise with a base ISO of 320, but as with most rolling shutters, is more prone to digital artifacts, especially when using low quality lights.

  • What workflow challenges should I expect?
    • Data Management: The VEO4K records to an internal 72GB RAM and has intentional limited bandwidth to ensure proper in-camera processing. Once the RAM is full, you are able to transfer an entire clip or set ins and outs and transfer portions of the clip to a CFast card (not included). Saving the full 72GB RAM takes approximately 12 minutes so plan your shots accordingly.

    • Sensor Calibration: Due to pixel sensitivity drift that is inherent to CMOS sensors, it is imperative to calibrate the sensor through the black reference process anytime the camera boots up or any changes are made to camera parameters like resolution, exposure, or frame rate. Black reference is also recommended anytime there is a substantial lapse of time of operation or change in operating temperatures.

    • Syncing: Incorrect sync settings will result in a scrambled or non-responsive image. If you encounter this issue on set, you will need to switch the camera to internal sync or attach an appropriate external sync source.

    • Lighting: You will need plenty and should plan for more than you think you need. An exposure calculator can be found under the Resources section of this page.

    • Interface: This rental does not include a monitor to interface with the camera but they are available to rent here.

  • Specifications

    Brand

    VRI

    Camcorder Type

    Cinema

    Camera Type

    Camcorder and Camcorder

    Imaging

    Maximum Resolution

    • 4096 × 2304
    Sensor
    • Type: S35, 31.7mm diagonal, CMOS
    • Rolling Shutter
    ISO
    • Maximum ISO: 20,000
    • Base ISO: 320

    Inputs/Outputs

    Audio Inputs

    • None
    Audio Output
    • None
    Video Out
    • HDMI Type-A
    • 3G HD-SDI (1x front, 1x rear)
    Additional Inputs/Outputs
    • 2-pin LEMO out (12V)
    • Fischer-3 R/S output

    Item Type

    Camera

    Mfr. Part Number

    VRI-VEO4K-PL-72G-C-RLS

    Physical

    Dimensions

    • 5 × 5.5 × 6″
    Weight
    • 6 lb (brain only)
    Operating Temperature
    • 14°-122°F

    See All

    Includes

    • VRI Phantom VEO4K PL-RLS (72GB)
    • VRI Phantom VEO4K PL Mount
    • VRI 24V / 80W for Phantom VEO4K AC Adapter
    • 3 Prong Universal Power Cord 6ft
    • VRI AD-CBL-VEO-BATT-T2 Power Adapter
    • VRI Trigger Pickle Switch 6- foot
    • VRI-CBL-DIN-BNC Adapter 12-inch

    Specifications

    Brand

    VRI

    Camcorder Type

    Cinema

    Camera Type

    Camcorder and Camcorder

    Imaging

    Maximum Resolution

    • 4096 × 2304
    Sensor
    • Type: S35, 31.7mm diagonal, CMOS
    • Rolling Shutter
    ISO
    • Maximum ISO: 20,000
    • Base ISO: 320

    Inputs/Outputs

    Audio Inputs

    • None
    Audio Output
    • None
    Video Out
    • HDMI Type-A
    • 3G HD-SDI (1x front, 1x rear)
    Additional Inputs/Outputs
    • 2-pin LEMO out (12V)
    • Fischer-3 R/S output

    Item Type

    Camera

    Mfr. Part Number

    VRI-VEO4K-PL-72G-C-RLS

    Physical

    Dimensions

    • 5 × 5.5 × 6″
    Weight
    • 6 lb (brain only)
    Operating Temperature
    • 14°-122°F

    See All
