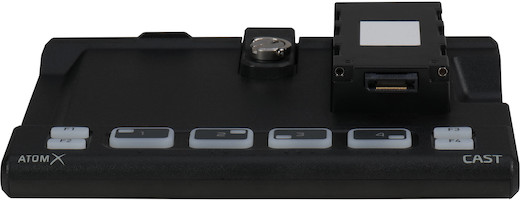

The AtomX CAST is a compact, quad HDMI expansion module that adds four-channel live switching up to 1080p60 and single-channel streaming up to 1080p30 to compatible Atomos Ninja V recorders. Key features include:
Add switching capabilities to Atomos Ninja V / V+
Offers four channels of HDMI switching with a single HDMI output
Stream as a USB webcam from the unit’s USB Type-C output
Simultaneous recording, streaming, and monitoring
Switch It Up. The Atomos AtomX CAST for Ninja V is a switching dock for Ninja V and Ninja V+ (pending a future firmware update) recorders that allows four 1080/60p sources to be ingested, recorded, viewed, & streamed as a USB webcam. The CAST integrates seamlessly with a Ninja V, providing an all-in-one switcher, monitor, and recorder solution with a compact footprint.

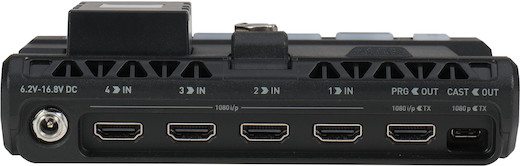

Inputs & Outputs. The four HDMI inputs can process up to 1080/60p footage and can accept a mix of interlaced and progressive signals, resolutions, and frame rates. An on-board HDMI output sends a 1080p signal out to an external monitor and can be configured for program, preview, or multiview. Simultaneous streaming up to 1080p30 is supported when plugging in the CAST to a computer via the included USB Type C cable. The signal is received by computers as a UVC streaming source for universal compatibility across nearly all popular streaming platforms.
Effect Modes. Single image, picture-in-picture, and four-pane display modes provide options for monitoring. The dock also enables the use of logos and lower thirds overlays that can be uploaded by the user. Switching between sources and adjusting graphics elements can all be done through the touch screen.
