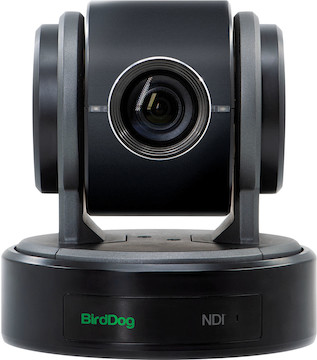

The BirdDog Eyes P100 is an entry-level, full-NDI capable PTZ camera that can transmit 140 Mbps 1080/60p video from its 1/2.86” CMOS sensor. Key features include:
1/2.86" CMOS sensor with 2.2 MP
10x optical zoom with a 4.7mm to 47mm focal length
Simultaneous full NDI & SDI output
Maximum 1080/60p resolution at a 140 Mbps bitrate via full NDI streaming
Entry-Level Full-NDI PTZ Camera. The BirDog Eyes P100 is an entry-level remote controlled PTZ camera that uses the NewTek NDI protocol for 140 Mbps video over IP. Resolution peaks at 1920 × 1080 with a frame rate of up to 60 fps. For imaging, the P200 uses a 2.2 MP, 1/2.8", sensor.
Control & Switching Options. NDI cameras can be controlled with a variety of software and hardware. For hardware control, we rent the BirdDog PTZ Keyboard, but note that control is only available over a network and not with a direct connection. The BirdDog Keyboard will need to be updated to v4.5.203-LTS in order to work with this camera. The P100 will need to be updated to v4.5.3787-LTS, but all copies will be fully updated before your rental.
Integrated 10x Zoom Lens. The Bird Dog P100 features a 10x optical zoom lens that will reach from 4.7mm to 47mm. The lens can be moved at up to 150°/s with a 350° pan and -15 to 90° tilt range. If you need a longer zoom range or focal length, we also rent the BirdDog Eyes P200 NDI PTZ Camera and BirdDog P120 NDI PTZ Camera.
Powered by AC or PoE+. This camera can be powered by the included AC adapter or via PoE+ provided by compatible network switches like the TP-LINK 8-Port Gigabit Ethernet Poe+ Switch.
Inputs & Outputs. The camera uses an RJ45 ethernet port for NDI, but also features simultaneous video output via SDI. The camera also features 3.5mm stereo audio input and output and RCA video out if needed. For additional ouput capability, including HDMI, we carry the BirdDog P110 NDI PTZ Camera.
