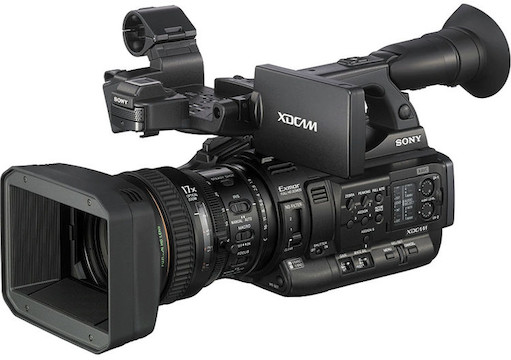

Sony PXW-X200 XDCAM

The PXW-X200 builds on the success of Sony’s PMW-200 by upgrading the lens and expanding shooting options. Key features include:

3-chip 1/2" Full HD CMOS sensor
29-499mm F/1.9-16 17x optical zoom lens
Capture 4:2:2 10-bit in exFAT or UDF recording modes
Wireless network functions and automatic back focus adjustment

These accessories are also available separately:

LR's Take

In General

Has a good zoom and lots of external controls, great 1080p image recorded in high quality Sony video codecs. The camera body is heavy but has a nearly perfect balance between the battery and the le...

Battery	Compatibility BP-U60 (included) Life 150 mins. (BP-U60)
Brand	Sony
Camcorder Type	ENG-style
Camera Type	Camcorder
Dimensions	6.6 × 6.3 × 13.3″ (17 × 16 × 33 cm)
Inputs/Outputs	Audio Inputs 2x XLRs for audio input: 3-pin female, line, mic, mic +48 V selectable Audio Output 1x A/V multi-connector (10-pin) for audio output: -10 dBu (reference level), 47 kΩ 1x Stereo mini-jack for earphone output 1x Monitor speaker: monaural, 250 mW Video Outputs 1x BNC for HD/SD-SDI output: SMPTE 292M/259M 1x HDMI output (type A) Additional Inputs/Outputs 1x BNC for genlock input (switchable to HD-Y, composite video output) 1x BNC for timecode input (switchable to timecode output), SMPTE-12M-2008, 0.5-1.8 Vp-p, 10kΩ 1x 4-pin IEEE 1394 i.Link for HDV (HDV 1080i) / DV input/output, S400 1x USB 2.0 (device), mini-B type 1x DC jack for DC input
Iris	f/1.9, auto/manual selectable
Item Type	Camera
Lens Focal Length Equivalent	29-499 mm
Memory Type	2 x slots for SxS Cards and 1 x slot for SD cards (Proxy recording only)
Mount	Fixed Lens
Recording Time	*exFAT Mode, XAVC-I (30p): Approx. 59 min with 64 GB memory card, and XAVC-L (30p): Approx. 130 min with 64 GB memory card
Sensor	(3) 1/2" Exmor CMOS
Shutter Speed	1/32 to 1/2000 seconds
UDF Mode	50 Mb/s MPEG HD422: Approx. 120 min with 64 GB memory card and 35 Mb/s: Approx. 180 min with 64 GB memory card
Video Formats	*exFAT Mode, XAVC-Intra (MPEG-4 H.264/AVC), XAVC-Long 50 (MPEG-4 H.264/AVC), XAVC-Long 35 (MPEG-4 H.264/AVC), XAVC-Long 25 (MPEG-4 H.264/AVC), MPEG HD422 (MPEG-2 422P@HL), and MPEG HD420 HQ (MPEG-2 MP@HL)
