Atomos NEON 17" 4K HDR Monitor/Recorder

$325.00
/
7 Day

Rental

Interested in purchasing?

Learn More

Includes

  • Atomos NEON 17-inch
  • Master control unit
  • SDI module
  • AC adapter
  • 3-prong power cable

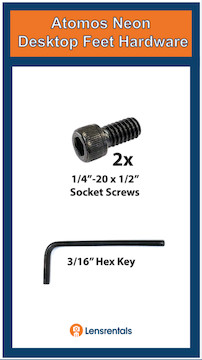

  • Desktop feet w/ hardware
  • SSD master caddy
  • Hard case
574905559130
855618038025584881383111

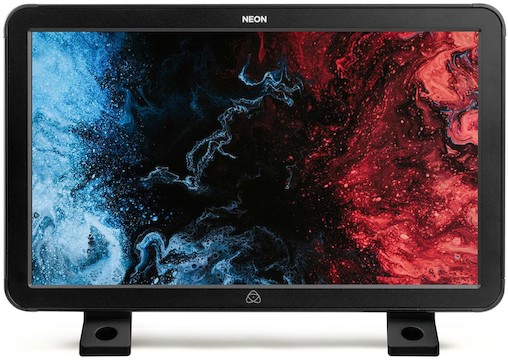

Atomos NEON 17" 4K HDR Monitor/Recorder

The Atomos NEON 17" 4K HDR Monitor/Recorder is a large, 17-inch 1080p production monitor with an integrated single channel recorder capable of recording ProRes RAW and CinemaDNG up to DCI 4K/60p. Key features include:

  • 17-inch 1920 × 1080 HDR display

  • Records up to 4K/60p or 1080/240p to 2.5" SSD

  • ProRes RAW support up to 4K/60p

  • Monitor functions controlled by Atomos mobile app

Read More

Q & A

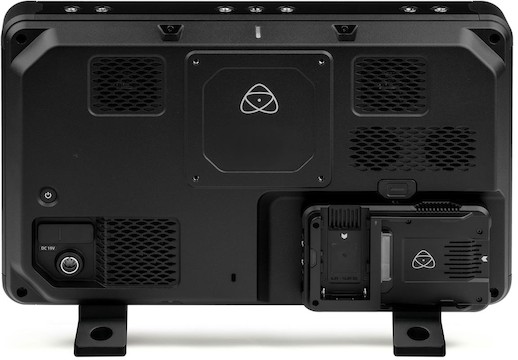

  • Does the NP-F slot on the back of the monitor accept NP-F-style batteries for power?
    • No. The NP-F slot on the monitor is only for communication with Atomos expansion modules. Do not attach an NP-F battery to this slot.

  • Is the AtomRemote iOS app required?
    • Yes. The AtomRemote will be required to make settings changes on the monitor. If you do not have an iOS device, we rent iPads separately here.

  • Does this monitor/recorder display images in 4K?
    • No. This 17-inch NEON monitor is capable of recording up to DCI 4K, but it will only display input images in up to 1080p.

  • Specifications

    Brand

    Atomos

    Inputs/Outputs

    Audio Inputs

    • (2) 3.5mm stereo mini-jack
    Audio Input Controls
  • Mic/Line
  • Audio Output
    • 3.5mm stereo mini-jack
    Video Input
    • BNC (12G-SDI)
    • HDMI Type-A 2.0b
    Video Out
    • BNC (12G-SDI)
    • HDMI Type-A 2.0

    Item Type

    Recorder

    Monitoring

    LCD Panel

    • 17”
    • Resolution: 1920 × 1080
    • PPI: 142
    • Aspect Ratio: 16:9 native

    Physical

    Dimensions

    • 16.26 × 9.96 × 2.81″
    Weight
    • 9.92 lb
    Materials
    • Aluminium, Polycarbonate

    Power Supply

    AC Adapter

    • Supplied

    Recording

    Formats

    • ProRes RAW, 422HQ, 422, 422LT, DNxHR HQX, HQ, SQ, LB, CinemaDNG RAW
    Modes
    • 4K DCI; 24/25/30/50/60p
    • 4K UHD; 24/25/30/50/60p
    • DCI 2K; 120/100/60/50/30/25/24
    • 1080p; 240/200/120/100/60/50/30/25/24
    • 1080i; 50/60i, 720p; 50/60p
    Media
    • 2.5" SSD (SATA III)

    Includes

    • Atomos NEON 17-inch
    • Master control unit
    • SDI module
    • AC adapter
    • 3-prong power cable
    • Desktop feet w/ hardware
    • SSD master caddy
    • Hard case

    Specifications

    Brand

    Atomos

    Inputs/Outputs

    Audio Inputs

    • (2) 3.5mm stereo mini-jack
    Audio Input Controls
  • Mic/Line
  • Audio Output
    • 3.5mm stereo mini-jack
    Video Input
    • BNC (12G-SDI)
    • HDMI Type-A 2.0b
    Video Out
    • BNC (12G-SDI)
    • HDMI Type-A 2.0

    Item Type

    Recorder

    Monitoring

    LCD Panel

    • 17”
    • Resolution: 1920 × 1080
    • PPI: 142
    • Aspect Ratio: 16:9 native

    Physical

    Dimensions

    • 16.26 × 9.96 × 2.81″
    Weight
    • 9.92 lb
    Materials
    • Aluminium, Polycarbonate

    Power Supply

    AC Adapter

    • Supplied

    Recording

    Formats

    • ProRes RAW, 422HQ, 422, 422LT, DNxHR HQX, HQ, SQ, LB, CinemaDNG RAW
    Modes
    • 4K DCI; 24/25/30/50/60p
    • 4K UHD; 24/25/30/50/60p
    • DCI 2K; 120/100/60/50/30/25/24
    • 1080p; 240/200/120/100/60/50/30/25/24
    • 1080i; 50/60i, 720p; 50/60p
    Media
    • 2.5" SSD (SATA III)

    Reviews
