Atomos Ninja V Pro Kit

$103.00

7 Day

Rental

Available Wednesday

Renting this item will adjust your rental dates.

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

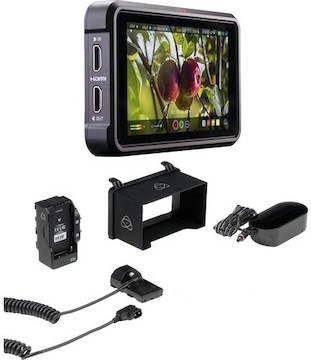

Includes

Ninja V w/ SDI RAW activation
Dummy battery
Locking AC adapter
(2) Hawk-Woods DV-F590 batteries
Fast battery charger w/ AC adapter
USB 3.0 SSD Dock
D-Tap to DC cable
Sunhood w/ mounting bracket
(2) Master Caddy
12G-SDI Module
Connect 4K
Case

Resources

Manual

Data Sheet

Camera Compatibility List

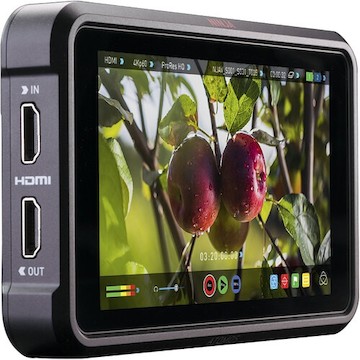

Atomos Ninja V Pro Kit

The Atomos Ninja V Pro Kit expands upon the abilities of the original Ninja V by activating SDI RAW for a compact HDMI/SDI recorder solution capable of capturing up to 6K30 ProRes RAW. Key features include:

Pre-Activated SDI RAW for capturing up to 6K30 / 4K60 ProRes RAW

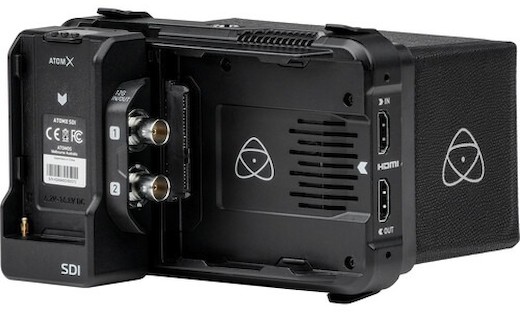

HDMI/SDI cross-conversion using included SDI module
10-bit, 1000 cd/m², 1920 × 1080, touchscreen display
Records to SSD media (not included)

Q & A

Can this recorder capture SDI RAW from Sony camcorders?

The Ninja V Pro kit can capture SDI RAW from the Sony FX6 and Sony FX9 (with XDCA on the FX9).
Please note that the Ninja V Pro may not work with legacy Sony FS camcorders with SDI RAW outputs. If you need a recorder that can capture all the Sony SDI RAW outs, we recommend the newer Atomos Ninja V+ 8K HDMI/SDI Monitor/Recorder Pro Kit.

Does this rental include powering accessories?

Yes! This rental includes two DV-590 batteries, a dual charger, AC adapter, and d-tap cable for powering off of brick batteries.

Does this rental include an SSD?

This rental doesn’t include an SSD, but they’re available as separate rental items. You can see some options under Recommended on the left-hand side of this page.

Does this rental include mounting hardware?

No. Since everyone’s mounting needs differ, we decided to make mounting a la carte. We have a wide variety of support gear to choose from, including ball head mounts and monitor arms.

Does this rental include HDMI or SDI cables?

This rental doesn’t include any HDMI or SDI cables. You can find our cables here. If you’re unsure about which cord is right for your application, please contact us for verification.

Specifications

Brand	Atomos

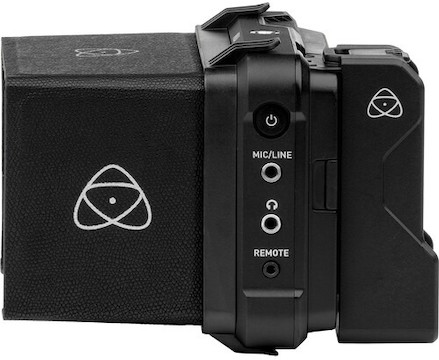

Inputs/Outputs	Audio Inputs 3.5mm stereo mini-jack Audio Input Controls Mic/Line Audio Output 3.5mm stereo mini-jack Video Input HDMI Type-A 2.0 12G-SDI In (via SDI module) Video Out HDMI Type-A 2.0 12G-SDI Out (via SDI module) Additional Inputs/Outputs LANC
Item Type	Recorder
Monitoring	LCD Panel 5” IPS LCD Resolution: 1920 × 1080 Touchscreen PPI: 427 Aspect Ratio: 16:9 native LUT Support 3D LUT (.cube format) Anamorphic De-Squeeze 2x, 1.5x, 1.33x, Panasonic 8:3
Physical	Dimensions (W x H x D) 5.94 × 3.6 × 1.22″ Accessory Mounts ¼-20 (center top and bottom) Weight 11.28 oz Materials Aluminium alloy chassis with ABS polycarbonate back plate
Power	AC Adapter Supplied Battery Type: Sony L (Hawk-Woods battery supplied) Operating Time: Approximately 1.5 hr Additional Battery Compatibility Type: NP-F950

Includes

Ninja V w/ SDI RAW activation
Dummy battery
Locking AC adapter
(2) Hawk-Woods DV-F590 batteries
Fast battery charger w/ AC adapter
USB 3.0 SSD Dock
D-Tap to DC cable
Sunhood w/ mounting bracket
(2) Master Caddy
12G-SDI Module
Connect 4K
Case

Specifications

Brand	Atomos
Inputs/Outputs	Audio Inputs 3.5mm stereo mini-jack Audio Input Controls Mic/Line Audio Output 3.5mm stereo mini-jack Video Input HDMI Type-A 2.0 12G-SDI In (via SDI module) Video Out HDMI Type-A 2.0 12G-SDI Out (via SDI module) Additional Inputs/Outputs LANC
Item Type	Recorder
Monitoring	LCD Panel 5” IPS LCD Resolution: 1920 × 1080 Touchscreen PPI: 427 Aspect Ratio: 16:9 native LUT Support 3D LUT (.cube format) Anamorphic De-Squeeze 2x, 1.5x, 1.33x, Panasonic 8:3
Physical	Dimensions (W x H x D) 5.94 × 3.6 × 1.22″ Accessory Mounts ¼-20 (center top and bottom) Weight 11.28 oz Materials Aluminium alloy chassis with ABS polycarbonate back plate
Power	AC Adapter Supplied Battery Type: Sony L (Hawk-Woods battery supplied) Operating Time: Approximately 1.5 hr Additional Battery Compatibility Type: NP-F950

Resources

Manual

Data Sheet

Camera Compatibility List

Reviews

See Reviews

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$21.00	$78.00	$99.00	$33.00
4 days	$23.00	$82.00	$105.00	$26.25
7 days	$30.00	$103.00	$133.00	$19.00
10 days	$41.00	$132.00	$173.00	$17.30
14 days	$53.00	$165.00	$218.00	$15.57
21 days	$71.00	$215.00	$286.00	$13.62
30 days	$89.00	$265.00	$354.00	$11.80
45 days	$116.00	$340.00	$456.00	$10.13
60 days	$135.00	$394.00	$529.00	$8.82
90 days	$174.00	$501.00	$675.00	$7.50

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$12.00	$78.00	$90.00	$30.00
4 days	$13.00	$82.00	$95.00	$23.75
7 days	$17.00	$103.00	$120.00	$17.14
10 days	$23.00	$132.00	$155.00	$15.50
14 days	$30.00	$165.00	$195.00	$13.93
21 days	$40.00	$215.00	$255.00	$12.14
30 days	$50.00	$265.00	$315.00	$10.50
45 days	$65.00	$340.00	$405.00	$9.00
60 days	$77.00	$394.00	$471.00	$7.85
90 days	$99.00	$501.00	$600.00	$6.67

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$78.00	$26.00
4 days	$82.00	$20.50
7 days	$103.00	$14.71
10 days	$132.00	$13.20
14 days	$165.00	$11.79
21 days	$215.00	$10.24
30 days	$265.00	$8.83
45 days	$340.00	$7.56
60 days	$394.00	$6.57
90 days	$501.00	$5.57
