Atomos Sumo 19-inch SE HDR Monitor/Recorder/Switcher

$183.00

7 Day

Rental

Available Friday

Renting this item will adjust your rental dates.

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

Atomos Sumo 19 SE HDR
3 Prong Power Cord 6ft
Protective Case and Insert
BattWing Adapter
AC Adapter
(2) Desktop Feet
SSD Master Caddy III
Hardware

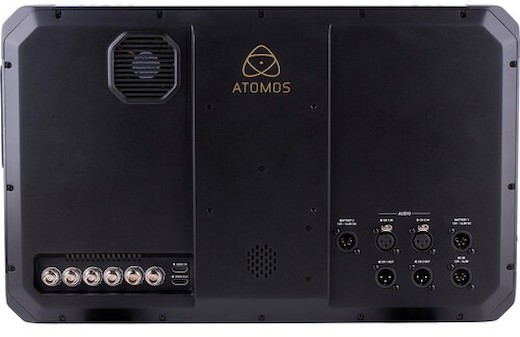

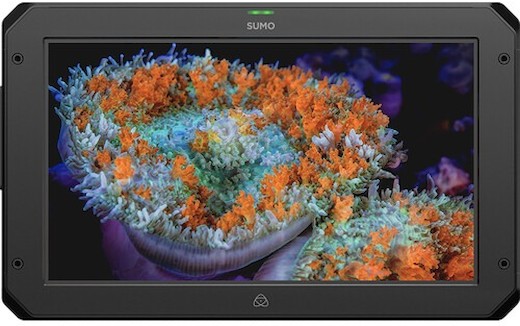

Atomos Sumo 19-inch SE HDR Monitor/Recorder/Switcher

The Atomos Sumo 19-inch SE HDR Monitor/Recorder/Switcher is an upgraded monitor of the Sumo 19 series. Key features include:

Quad-HD live switching
Two XLR inputs with +48V
ProRes RAW support
HDMI 2.0 & 12G-SDI inputs/outputs

Q & A

What do I use to hold this big monitor?

We offer a few solutions for this issue. The first one is a mobile work station we’ve put together for shoots where you’re going to be moving around frequently on set and don’t want to continuously need to pick up and move a heavy monitor and stand combo. The Inovativ Voyager 36 EVO Equipment Cart Premium Kit gives you everything you need to make this happen.
Alternatively, if you’re going to be stationary most of the time, check out our Avenger 7.3ft Turtle Base C-Stand Twin Kit or the Kupo 6.7-foot Low Mighty Combo Stand for a rock-solid platform on which to mount this monitor.
If you have questions or need help with your setup, please contact us and one of our production experts can get you pointed in the right direction.

Does this rental include HDMI or SDI cables?

This rental doesn’t include any HDMI or SDI cables. You can find our cables here. If you’re unsure about which cord is right for your application, please contact us for verification.

Specifications

Brand	Atomos
Display	Panel Type Quantum Dot OLED Display Size 19.00" Resolution 1920 × 1080 Aspect Ratio 16:9 Touchscreen Yes Maximum Brightness 1200 cd/m2 Bit Depth / Color Support 8-Bit+FRC (1.07 Billion Colors) HDR Compatibility Hybrid Log Gamma Pixels Per Inch (ppi) 120 ppi Real-Time LUT Monitoring SDR, HDR Image Controls Anamorphic De-Squeeze False Color Focus Peaking OSD Flip Pixel Zoom RGB Parade Vectorscope Waveform Zebra Video I/O 1 x HDMI 2.0 Input 1 x HDMI 2.0 Output 4 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Output Embedded Audio HDMI: 8-Channel SDI: 12-Channel Audio I/O 2 x XLR Input 2 x XLR Output 1 × 1/8" / 3.5 mm Headphone Output Built-In Speaker 2 × 5 W Power I/O 2 x XLR 4-Pin (14.4 VDC) Input 1 x XLR 4-Pin (16.8 VDC) Input Other I/O 1 x BNC (Genlock) Input 1 × 2.5 mm (LANC) Input Media/Memory Card Slot None File System Support exFAT
Environmental	Operating Temperature 72°F
Format Support	Video Format HDMI/SDI (10-Bit 4:2:2) UHD 4K: 60 DCI 4K: 60 Gamma Curve DCI-P3 DCI-P3+ Panasonic V-Gamut Rec709 Video Signal Conversion HDMI to SDI SDI to HDMI Timecode Support Yes
General	Material of Construction Aluminum, Polycarbonate Dimensions 19.8 × 13 × 7.1″ Including Feet 19.8 × 12.2 × 2.5″ Excluding Feet Weight 12.02 lb
Item Type	Monitoring and Recorder
Monitoring Type	Monitor
Mounting	Mounting-Hole Pattern 100 × 100 mm Mounting 10 × 1/4"-20 Female 5 × 3/8"-16 Female
Power	DC Input Power 12 to 16.8 VDC Built-In Battery None Battery Type 2 x V-Mount, Gold Mount Power Consumption 75 W
Recording	Pulldown Conversion 2:2, 3:2 Camera Trigger SDI HDMI Pre-Roll Record Full HD: 8 Seconds 4K: 2 Seconds Encoding Formats ProRes Raw ProRes 422 HQ 10-Bit DNxHR 422 HQ 10-Bit Closed Caption Support None Reference Input None Phantom Power +48 V

See All

Includes

Atomos Sumo 19 SE HDR
3 Prong Power Cord 6ft
Protective Case and Insert
BattWing Adapter
AC Adapter
(2) Desktop Feet
SSD Master Caddy III
Hardware

Specifications

Brand	Atomos
Display	Panel Type Quantum Dot OLED Display Size 19.00" Resolution 1920 × 1080 Aspect Ratio 16:9 Touchscreen Yes Maximum Brightness 1200 cd/m2 Bit Depth / Color Support 8-Bit+FRC (1.07 Billion Colors) HDR Compatibility Hybrid Log Gamma Pixels Per Inch (ppi) 120 ppi Real-Time LUT Monitoring SDR, HDR Image Controls Anamorphic De-Squeeze False Color Focus Peaking OSD Flip Pixel Zoom RGB Parade Vectorscope Waveform Zebra Video I/O 1 x HDMI 2.0 Input 1 x HDMI 2.0 Output 4 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Output Embedded Audio HDMI: 8-Channel SDI: 12-Channel Audio I/O 2 x XLR Input 2 x XLR Output 1 × 1/8" / 3.5 mm Headphone Output Built-In Speaker 2 × 5 W Power I/O 2 x XLR 4-Pin (14.4 VDC) Input 1 x XLR 4-Pin (16.8 VDC) Input Other I/O 1 x BNC (Genlock) Input 1 × 2.5 mm (LANC) Input Media/Memory Card Slot None File System Support exFAT
Environmental	Operating Temperature 72°F
Format Support	Video Format HDMI/SDI (10-Bit 4:2:2) UHD 4K: 60 DCI 4K: 60 Gamma Curve DCI-P3 DCI-P3+ Panasonic V-Gamut Rec709 Video Signal Conversion HDMI to SDI SDI to HDMI Timecode Support Yes
General	Material of Construction Aluminum, Polycarbonate Dimensions 19.8 × 13 × 7.1″ Including Feet 19.8 × 12.2 × 2.5″ Excluding Feet Weight 12.02 lb
Item Type	Monitoring and Recorder
Monitoring Type	Monitor
Mounting	Mounting-Hole Pattern 100 × 100 mm Mounting 10 × 1/4"-20 Female 5 × 3/8"-16 Female
Power	DC Input Power 12 to 16.8 VDC Built-In Battery None Battery Type 2 x V-Mount, Gold Mount Power Consumption 75 W
Recording	Pulldown Conversion 2:2, 3:2 Camera Trigger SDI HDMI Pre-Roll Record Full HD: 8 Seconds 4K: 2 Seconds Encoding Formats ProRes Raw ProRes 422 HQ 10-Bit DNxHR 422 HQ 10-Bit Closed Caption Support None Reference Input None Phantom Power +48 V

See All
