Canon EOS C200B Gimbal-Ready Kit

$309.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Learn More

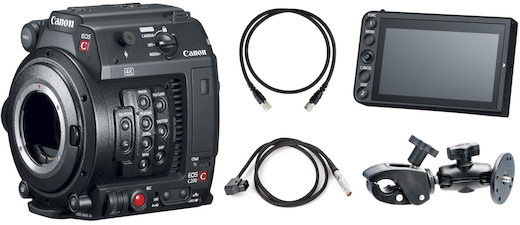

Includes

Canon EOS C200B EF Cinema Camera
Canon LM-V1 monitor

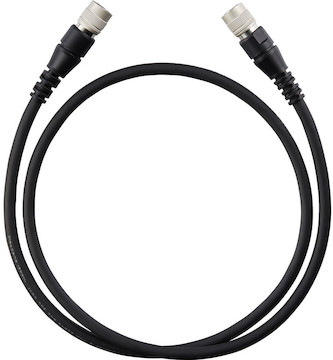

Canon UN-10 3.3ft Monitor Cable
Wooden D-Tap to Canon C200 / C300II 3ft Braided Flex Cable

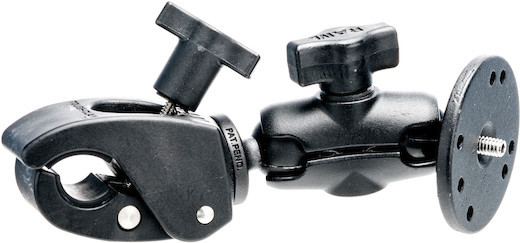

RAM Mounts Accessory Clamp

Resources

C200B Manual

Memory Card Compatibility List

Canon EOS C200B Gimbal-Ready Kit

The Canon EOS C200B Gimbal-Ready Kit provides gimbal users a starting point for building out a setup based on their needs. There are additional add-on options available, but these are the essentials. This kit includes:

Canon EOS C200B EF Cinema Camera
Canon LM-V1 4-inch LCD Monitor
Canon UN-10 Unit Cable
RAM Mounts Accessory Clamp
Wooden D-Tap to Canon C200 / C300II 3-ft. Braided Flex Cable

Gimbal-Ready Camcorder. The foundation of this package is Canon’s 4K RAW capable C200B camcorder. It was designed with gimbals in mind, having no built-in EVF to muck with a gimbal tilt radius. An EF lens mount means wide lens compatibility, and Canon’s dual-pixel auto focus is still best camcorder autofocus we’ve seen. If in-camera audio is a must, XLR and 3.5mm mic connections provide options. Don’t forget media, and if you plan to shoot RAW, you’ll need plenty. Recording 4K RAW will fill a 128GB card in about 15 minutes.

Monitor, Mount, and 3.3-foot Cable. In this kit, we include the Canon LM-V1 touchscreen monitor Canon usually pairs with the C200 plus a clamp-on RAM mount and 3.3 foot cable for flexible mounting.

Power Camera Via Gimbal’s D-Tap Port. Simplify camera power by using the included 3-foot Wooden dtap cable to power the C200B from a compatible gimbal’s D-Tap accessory port. Running your camera off of the gimbal’s battery means less downtime and a more productive shoot.

LR's Take

In General

This box-like camera is essentially a C200 without the EVF making it easier to balance for gimbal work, but the regular C200 may work perfectly for you as is. We recommend calling us to determine w...

Q & A

Does this include a top handle our LCD attachment for off-gimbal use?

No. The standard C200 accessories used for off-gimbal work have been substituted in this kit for accessories that streamline the C200B for gimbal use. If you would like to add a top handle for off-gimbal work, the Canon HDU-2 Handle Unit for EOS C200/C200B is available for rent separately and can be used along with the included RAM Mount Clamp to securely attach the LCD on camera.

Are there any known third-party lens-compatibility issues with this camera?

In-house testing has confirmed that this camera will not recognize several Tamron G2 lenses. We recommend sticking with native Canon lenses if you need electronic focus or iris control for your shoot.
If you have any questions or concerns regarding lens compatibility with this camera, please contact us. support@lensrentals.com | 901-754-9100

Is this camera compatible with light-duty gimbals like the M5?

While a combination of skill, compact lenses, and/or extension arms may make it possible to accurately balance the C200 on gimbals designed for DSLR and Mirrorless systems, we only recommend flying this camera on larger gimbals like the Movi Pro.

Is there an option to add / use the Canon GR-V1 Camera Grip with this kit?

Yes! We offer the Wooden Canon C200B Grip Relocator Add-On as a separate rental product for users who want this type of setup.

Can I use compatible Canon batteries to power this camera?

Batteries that sit flush inside the battery compartment work and can even help with balance, but larger batteries like the Canon BP-A60 stick out and restrict the tilt axis of some gimbals.

Is a gimbal included in this kit?

No. This kit is designed to be rented or used alongside a gimbal of your choosing. Recommend gimbals can be found in the “Works Well With” column on this page or check out the Freefly Movi Pro Gimbal w/o Mimic and the DJI Ronin 3-Axis Brushless Gimbal Stabilizer.

Specifications

Brand	Canon and Wooden Camera
Camera Type	Camcorder
Imaging	Sensor Type: CMOS Size: 24.6 × 13.8 Effective Pixels: 8.85 MP Maximum Resolution 4096 × 2160 Crop Factor Approximately x1.5 Bit Depth Raw: 10-bit/12-bit MP4/XF-AVC: 4:2:0 8-bit External 4:2:2 10-bit (additional recording device required) ISO Dynamic Range: Approximately 13 stops Default Sensitivity Range: 160-25,600 Expanded Sensitivity Range: 100-102,400 Native ISO: 800
Inputs/Outputs	Audio Inputs 2x XLR 3-pin MIC 3.5mm mini-jack Monaural mic Audio Output Headphone out 3.5mm mini-jack Video Outputs 3G/HD-SDI BNC HDMI Additional Inputs/Outputs USB: mini-B Remote: 2.5mm sub-mini jack Ethernet Video terminal (Canon unit control) Camera grip connection terminal (Canon proprietary)
Item Type	Camera and Package
Monitoring	Viewfinder None LCD Panel Not included Internal Microphone Monaural
Mount	Canon EF
Package Type	Canon Video
Physical	Dimensions 5.7” x 5.7” x 5.4” Weight Approximately 2.9 lbs. Accessory Mounts: Tripod:¼-20 & ⅜-16 Additional: ¼-20 compatible modular attachment points
Power Supply	AC Adapter CA-A10 Battery Type: BP-A30 (included)/BP-A60 (available as a separate rental item) Operating Time: Approximately 125 min (BP-A30)/270 min. (BP-A60) Recharge Time: Approximately 170 min. (BP-A30)/300 min. (BP-A60)
Recording	Media 1x Cfast 2.0 VPG-130 (RAW only) 2x SDXC (MP4/XF-AVC) Formats Video: RAW, MPEG-4 AVC/H.264 Audio: Linear PCM, MPEG-4 AAC-LC File: CRM, MP4, MXF Modes 1 Gbps (RAW): 4096×2160 10-bit (50p/59.94p)/12-bit (23.98p/24p/25p/29.97p) 160 Mbps (MXF): 3840×2160 (23.98p/24p/25p/29.97p/59.94p/50i) 45 Mbps (MXF): 1920×1080 (23.98p/24p/25p/29.97p/50p/59.94p/50i/59.94i) 150 Mbps (MP4): 3840×2160 (23.98p/24p/25p/29.97p/50p/59.94p) 35 Mbps (MP4): 1920×1080 (23.98p/24p/25p/29.97p/50p/59.94p) Approximate Record Times 1 Gbps: 0.12 Min/GB 160 Mbps: 0.82 Min/GB 150 Mbps: 0.86 Min/GB 45 Mbps: 2.93 Min/GB 35 Mbps: 3.79 Min/GB Special Recording Modes Slow Motion Recording (1920×1080 up to 120P) Pre-Recording Frame Recording Interval Recording

See All

Includes

Canon EOS C200B EF Cinema Camera
Canon LM-V1 monitor
Canon UN-10 3.3ft Monitor Cable
Wooden D-Tap to Canon C200 / C300II 3ft Braided Flex Cable
RAM Mounts Accessory Clamp

Specifications

Brand	Canon and Wooden Camera
Camera Type	Camcorder
Imaging	Sensor Type: CMOS Size: 24.6 × 13.8 Effective Pixels: 8.85 MP Maximum Resolution 4096 × 2160 Crop Factor Approximately x1.5 Bit Depth Raw: 10-bit/12-bit MP4/XF-AVC: 4:2:0 8-bit External 4:2:2 10-bit (additional recording device required) ISO Dynamic Range: Approximately 13 stops Default Sensitivity Range: 160-25,600 Expanded Sensitivity Range: 100-102,400 Native ISO: 800
Inputs/Outputs	Audio Inputs 2x XLR 3-pin MIC 3.5mm mini-jack Monaural mic Audio Output Headphone out 3.5mm mini-jack Video Outputs 3G/HD-SDI BNC HDMI Additional Inputs/Outputs USB: mini-B Remote: 2.5mm sub-mini jack Ethernet Video terminal (Canon unit control) Camera grip connection terminal (Canon proprietary)
Item Type	Camera and Package
Monitoring	Viewfinder None LCD Panel Not included Internal Microphone Monaural
Mount	Canon EF
Package Type	Canon Video
Physical	Dimensions 5.7” x 5.7” x 5.4” Weight Approximately 2.9 lbs. Accessory Mounts: Tripod:¼-20 & ⅜-16 Additional: ¼-20 compatible modular attachment points
Power Supply	AC Adapter CA-A10 Battery Type: BP-A30 (included)/BP-A60 (available as a separate rental item) Operating Time: Approximately 125 min (BP-A30)/270 min. (BP-A60) Recharge Time: Approximately 170 min. (BP-A30)/300 min. (BP-A60)
Recording	Media 1x Cfast 2.0 VPG-130 (RAW only) 2x SDXC (MP4/XF-AVC) Formats Video: RAW, MPEG-4 AVC/H.264 Audio: Linear PCM, MPEG-4 AAC-LC File: CRM, MP4, MXF Modes 1 Gbps (RAW): 4096×2160 10-bit (50p/59.94p)/12-bit (23.98p/24p/25p/29.97p) 160 Mbps (MXF): 3840×2160 (23.98p/24p/25p/29.97p/59.94p/50i) 45 Mbps (MXF): 1920×1080 (23.98p/24p/25p/29.97p/50p/59.94p/50i/59.94i) 150 Mbps (MP4): 3840×2160 (23.98p/24p/25p/29.97p/50p/59.94p) 35 Mbps (MP4): 1920×1080 (23.98p/24p/25p/29.97p/50p/59.94p) Approximate Record Times 1 Gbps: 0.12 Min/GB 160 Mbps: 0.82 Min/GB 150 Mbps: 0.86 Min/GB 45 Mbps: 2.93 Min/GB 35 Mbps: 3.79 Min/GB Special Recording Modes Slow Motion Recording (1920×1080 up to 120P) Pre-Recording Frame Recording Interval Recording

See All

Resources

C200B Manual

Memory Card Compatibility List

Reviews

See Reviews

Lensrentals.com offers rentals ranging in length from 1 to 90 days. The shopping cart will automatically update the quoted price as you adjust the length of your rental. Our most common rental periods are shown below:

No Coverage

Lenscap

LenscapPlus

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$52.00	$223.00	$275.00	$91.67
4 days	$56.00	$237.00	$293.00	$73.25
7 days	$74.00	$309.00	$383.00	$54.71
10 days	$100.00	$410.00	$510.00	$51.00
14 days	$130.00	$525.00	$655.00	$46.79
21 days	$174.00	$698.00	$872.00	$41.52
30 days	$218.00	$871.00	$1089.00	$36.30
45 days	$285.00	$1130.00	$1415.00	$31.44
60 days	$333.00	$1317.00	$1650.00	$27.50
90 days	$429.00	$1691.00	$2120.00	$23.56

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$35.00	$223.00	$258.00	$86.00
4 days	$38.00	$237.00	$275.00	$68.75
7 days	$50.00	$309.00	$359.00	$51.29
10 days	$68.00	$410.00	$478.00	$47.80
14 days	$88.00	$525.00	$613.00	$43.79
21 days	$118.00	$698.00	$816.00	$38.86
30 days	$148.00	$871.00	$1019.00	$33.97
45 days	$193.00	$1130.00	$1323.00	$29.40
60 days	$225.00	$1317.00	$1542.00	$25.70
90 days	$290.00	$1691.00	$1981.00	$22.01

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$223.00	$74.33
4 days	$237.00	$59.25
7 days	$309.00	$44.14
10 days	$410.00	$41.00
14 days	$525.00	$37.50
21 days	$698.00	$33.24
30 days	$871.00	$29.03
45 days	$1130.00	$25.11
60 days	$1317.00	$21.95
90 days	$1691.00	$18.79
