Convergent Design Apollo

$307.00
/
7 Day

Rental

Interested in purchasing?

Learn More

Includes

  • Convergent Design Apollo
  • Sony battery plate
  • Sony NP-F970 battery
  • Sony VQD-1051D charger
  • AC adapter
  • StarTech USB 3.0 SSD Reader
  • 15" Cinevate Proteus Grip Stick
  • Redrock microMount
781043660508
854374273950974038825150

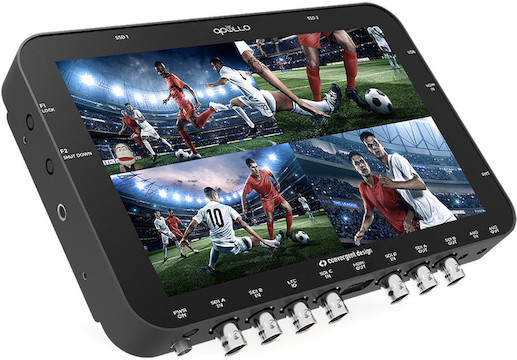

Convergent Design Apollo

Convergent Design’s Apollo is an all-in-one type solution serving as not only an OLED monitor and video recorder, but also functioning as a video switcher with support for up to four HD sources. Key features include:

  • Four-input switching and recording

  • 7.7-inch, 1280 × 800 OLED monitor

  • 3G-SDI inputs/outputs, HDMI Mini input/output

  • Battery and AC adapter included

Read More

Q & A

  • Does the Apollo record RAW?
    • The Apollo doesn’t record RAW. If you’re looking for a RAW recording solution, you’d be better off with the Convergent Design Odyssey7Q+.

  • Is this product compatible with all SSDs and is one included with the rental?
    • This product is only guaranteed to be compatible with Convergent Design SSDs and warrantied Samsung SSDs. Warrantied Samsung SSDs include 256GB, 512GB, and 1TB 2.5” 850 PRO SSDs.

    • Approved Convergent Design/Samsung SSDs are available as separate rental items.
  • Does this rental include HDMI or SDI cables?
    • This rental doesn’t include HDMI or SDI cables, but you can find recommended cables on the left-hand side of this page. If you have any questions regarding cable compatibility, please contact us. support@lensrentals.com | 901-754-9100

  • Specifications

    Audio

    Digital I/O: 2-channel SDI or HDMI embedded audio (48 kHz, 24-bit)

    Analog I/O: 1 × 3.5 mm input (line level, 2-channel unbalanced or 1-channel balanced input up to -10 dB, 48 kHz, 24-bit)
    1 × 3.5 mm headphone output

    Battery Life (approximate)

    71 min with supplied Sony NP-F970 battery

    Brand

    Convergent Design

    Display Resolution

    1280 × 800

    Display Type

    7.7" OLED (19.5 cm)

    Downscaling

    Yes. Output 1080p HD via HDMI or SDI from DCI 4K / UHD source (allows for additional on-set monitoring)

    Frame Adjust

    Anamorphic Desqueeze, 17:9 letterbox, Automatic Image Flip (defeatable) , Programmable Aspect Ratio Guides

    Item Type

    Monitoring and Recorder

    See All

    Includes

    • Convergent Design Apollo
    • Sony battery plate
    • Sony NP-F970 battery
    • Sony VQD-1051D charger
    • AC adapter
    • StarTech USB 3.0 SSD Reader
    • 15" Cinevate Proteus Grip Stick
    • Redrock microMount

    Specifications

    Audio

    Digital I/O: 2-channel SDI or HDMI embedded audio (48 kHz, 24-bit)

    Analog I/O: 1 × 3.5 mm input (line level, 2-channel unbalanced or 1-channel balanced input up to -10 dB, 48 kHz, 24-bit)
    1 × 3.5 mm headphone output

    Battery Life (approximate)

    71 min with supplied Sony NP-F970 battery

    Brand

    Convergent Design

    Display Resolution

    1280 × 800

    Display Type

    7.7" OLED (19.5 cm)

    Downscaling

    Yes. Output 1080p HD via HDMI or SDI from DCI 4K / UHD source (allows for additional on-set monitoring)

    Frame Adjust

    Anamorphic Desqueeze, 17:9 letterbox, Automatic Image Flip (defeatable) , Programmable Aspect Ratio Guides

    Item Type

    Monitoring and Recorder

    See All
