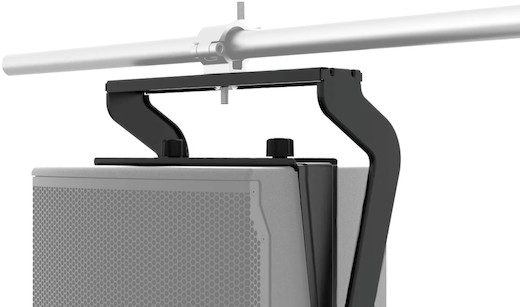

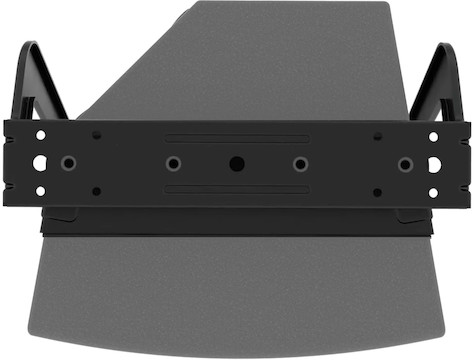

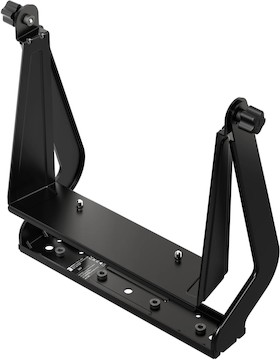

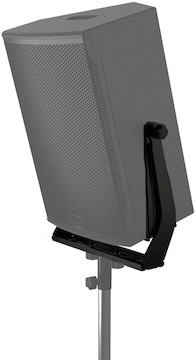

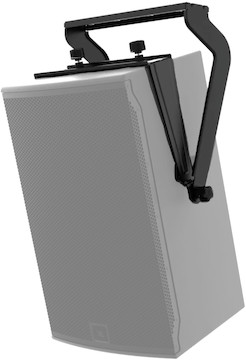

The JBL Vertical U-Bracket mounts to the JBL SRX912M, expanding your speaker positioning options and allowing you to tilt the speaker rather than it being in a fixed position via the top hat. This bracket attaches to either the speaker’s two top or two bottom M10 points and the suspension portion of the bracket has several M12 through-holes for using with pipe or truss clamp adapters. There are two additional M10 attachment points on this bracket for installing optional eyebolts (not included).
JBL Vertical U-Bracket for the SRX912M
Includes
- JBL 16 × 15″ SRX912M UBV bracket
- JBL 15 × 12″ SRX912M UBV bracket
- (4) JBL M10 x 22mm partially-threaded knobs
JBL Vertical U-Bracket for the SRX912M
Q & A
It does not.
No. While the M12 through-holes are fairly universal for hanging from a truss clamp, the bracket itself is designed just for the JBL SRX912M loudspeaker.
Specifications
| Brand | JBL |
| Dimensions | 19.5 × 18.4 × 3.1″ |
| Grip & Rigging Type | Bracket |
| Item Type | Grip & Rigging |
| Load Capacity | 57.0 lb. |
| Mfr. Model Number | JBL-P3495 |
| Weight | 11.0 lb. |
Includes
- JBL 16 × 15″ SRX912M UBV bracket
- JBL 15 × 12″ SRX912M UBV bracket
- (4) JBL M10 x 22mm partially-threaded knobs
