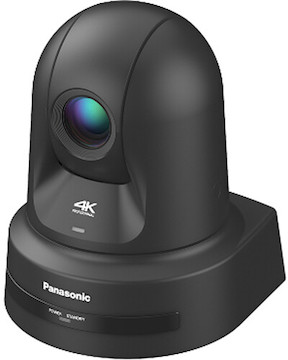

The Panasonic AW-UE80KPJ 4K Pro PTZ Camera is a compact, professional-grade, remotely controlled camera that’s equally great for a range of applications. Key features include:

1/2.5-inch 4K CMOS sensor
HDMI, SDI, and IP video output
Up to UHD 4K60/1080p60 video capture
Built-in NDI | HX support, 24x zoom, PoE+

Pro-Grade 4K PTZ Camera. The Panasonic AW-UE80KPJ 4K Pro PTZ Camera fits right into professional productions, conferences, or classrooms. It outputs UHD 4K video at up to 60p over HDMI, Full HD at up to 60p over SDI, and supports live streaming up to Full HD 60p.

Built-In 24x Optical Zoom Lens. The built-in 4.1 to 98.9mm (25 to 600mm 35mm equivalent) 24x optical zoom lens gives you a wide 74° viewing angle. At its wide end, the lens lets you capture cinematic wide shots when you’re shooting in confined spaces. Its optical design includes aspherical elements to combat aberrations while producing 4K image quality. This camera features smooth, responsive pan and tilt, with a -175° to +175° panning angle and a -30 to 90° tilt range. In addition to the 24x optical zoom, there are also two extended digital zoom options: 28x UHD 4K digital zoom and 36x Full HD digital zoom.

Inputs and Outputs. This camera uses an RJ45 ethernet port for NDI, but also features simultaneous video output via SDI and HDMI. A single 3.5mm mini jack allows for an unpowered line-in audio source.

Control and Switching Options. The AW-UE80KPJ 4K Pro includes NDI | HX2 and High Bandwidth NDI support without requiring a separate license, so you can drop it into your existing NDI network. This camera gives you IP and RS-422 serial remote-control options, and NDI cameras can be controlled with a variety of software and hardware. We recommend NewTek’s NDI Tools as a starting point for free, software-based NDI control. Hardware control is possible with the BirdDog PTZ Keyboard and the Panasonic RP150G Touchscreen Remote Camera Controller. For software motor control and NDI switching, we rent the Roland V-160HD SDI/HDMI Streaming Video Switcher. Please contact us for any hardware or software compatibility concerns.

Monitoring Options. You can monitor camera view via webUI, SDI / HDMI, and compatible third-party software. This camera uses NDI | HX2 or High Bandwidth NDI protocol, so we recommend making sure all third-party software is up to date.

PoE+ Power. You can power this camera with Power-Over-Ethernet (PoE+) via its LAN port, meaning that it’ll fit right into your existing PoE+ network without the need for local power. It can also be powered by the included AC adapter.

Q & A

How do I access the camera upon initial startup?

Upon initial startup, you must follow these steps:
1. Access the camera via the webUI. The IP address is 192.168.0.10 and the Subnet is 255.255.255.0
2. Assign an account name and password.
3. Reboot the camera to log back in. You’ll be prompted to enter the initial network settings.

How do I activate NDI or NDI|HX?

Access the webUI and go to setup at the top
Enter username and password if prompted
Select the Video over IP tab
Select Streaming Mode
Select High Bandwidth NDI or NDI|HX2 under the drop-down menu and set.

How can I perform a factory reset?

Turn off the camera and flip up the first IR switch and first Settings switch on the back of the camera and power cycle. Once power cycled, unplug the camera and flip the switches back off. Once camera is powered back on it will be at its original factory settings.

What is the difference between NDI and NDI|HX?

NDI is a high quality/high bandwidth streaming output while NDI|HX is high efficiency/low bandwidth streaming output. Use depends on your network setup.

How do I monitor camera view?

You can monitor camera view via webUI, SDI / HDMI, and compatible third-party software.
This camera uses NDI HX2 or High Bandwidth NDI protocols, so we recommend making sure all third-party software is up to date.

Does this camera support microSD recording?

No, this camera doesn’t support microSD recording.

Specifications

Brand	Panasonic
Camcorder Type	PTZ
Camera	Shutter Speed 1/60 to 1/10,000 sec (In 50p/50i/60p/60i Mode) 1/30 to 1/10,000 sec (In 30p Mode) 1/25 to 1/10,000 sec (In 25p Mode) Max Digital Zoom 36x ( in 1080p) Built-In ND Filter None
Camera Type	Camcorder
Control	Move Speed Pan: 0.08 to 180°/sec Tilt: 0.08 to 180°/sec Movement Range Pan: 350° (-175 to 175°) Tilt: 120° (-30 to 90°) Tally Light Yes Supported Control Protocols RS-422
Environmental	Operating Temperature 32 to 104°F Storage Temperature -4 to 122°F Operating Humidity 20 to 90%
Image Sensor	Image Sensor 1-Chip 1/2.5" MOS Sensor Horizontal Resolution (TV Lines) 1500 TV Lines Gain 0 to 36 dB (Native) White Balance 2000 to 15,000K
Interfaces	Video Output Connectors 1x HDMI Type A (HDMI 1.4) Female 1x BNC (3G-SDI / HD-SDI) Female 1x RJ45 (HX / NDI) Female Audio I/O 1x 1/8" / 3.5 mm Stereo Mic/Line Level Input Control Interface 1x RJ45 (IP Control, LAN) Input 1x RJ45 (RS-422) Input
Item Type	Camera
Lens	Optical Zoom Ratio 24x Focal Length 4.1 to 98.9mm (35mm Equivalent Focal Length: 25 to 600mm) Field of View Horizontal: 74.1 to 3.3° Vertical: 46 to 1.9° Vertical: 81.8 to 3.8° Maximum Aperture f/1.8 to 4 Minimum Focus Distance Wide: 3.9" / 9.9 cm Telephoto: 47.2" / 120.0 cm Image Stabilization Optical Focus Control Autofocus Manual Focus
Mfr. Model Number	AW-UE80KPJ
Physical	Dimensions (L x W x H) 8.3 × 6.7 × 6.7″ Weight 4.4 lbs.
Power	PoE Support PoE+ 802.3at Power Connectors 1x JEITA (10.8 to 13.2 VDC) Power Consumption Power Supply: 10.8 to 13.2 VDC at 1.8 A</li PoE: 42 to 57 VDC at 0.6 A
Video Output	Broadcast System Compatibility NTSC, PAL HDMI Output 3840 × 2160p at 24, 25, 29.97, 50, 59.94 fps 1920 × 1080p at 25, 29.97, 50, 59.94 fps 1920 × 1080i at 50, 59.94 fps 1280 × 720p at 50, 59.94 fps SDI Output 1920 × 1080p at 24, 25, 29.97, 50, 59.94, 60 fps 1920 × 1080PsF at 23.98, 25, 29.97 fps 1920 × 1080i at 50, 59.94 fps 1280 × 720p at 50, 59.94 fps RJ45 Output 1920 × 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1280 × 720p at 25, 30, 50, 59.94, 60 fps 640 × 360p at 25, 30, 60 fps 320 × 180p at 25, 30, 50, 60 fps Embedded Audio HDMI/SDI IP Streaming H.264, H.265, MJPEG: 1080p, 720p at 25p, 30p, 50p, 60p (0.51 to 24.00 Mb/s)

See All

Includes

Panasonic AW-UE80KPJ Camera
Clip-on lens cap
AC Adapter
Non-polarized cable
Case
