PreSonus StudioLive 32SC Digital Mixer Console

$202.00

7 Day

Rental

Available 05/24/24

Renting this item will adjust your rental dates.

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

PreSonus StudioLive 32SC Series III S
USB 2.0 A Male to Standard-B 6-foot
3-prong cable (6’)
Cat6A cable (7’)
Case

Resources

Manual

Downloads

PreSonus StudioLive 32SC Digital Mixer Console

The Presonus StudioLive 32SC is a compact, 32-channel, 26-bus digital mixer with AVB networking and dual-core FLEX DSP Engine. Key features include:

Rack-mountable frame

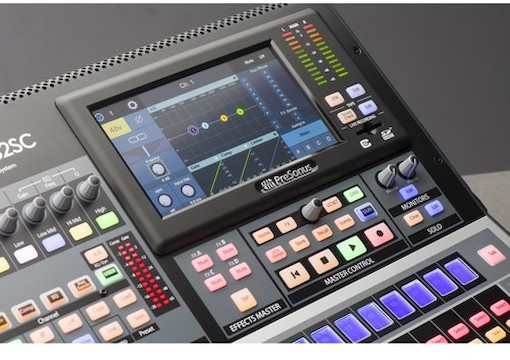

Full-color touchscreen
Includes StudioLive Software Library
17 touch-sensitive motorized faders

Q & A

Can this be mounted onto a rack?

Yes! This can be mounted onto a standard 19 inch rack (not included).

What computers is this compatible with?

This product is compatible with Windows 10 or later (64-Bit Only) and with macOS version 10.13 or later.

Specifications

Audio Type	Other Audio
Brand	PreSonus
Channels	32 Analog Input Channels
Compatibility	OS Compatibility macOS 10.8.5 or Later Windows 7 Windows 8.1 Windows 10 iOS 10 or Later Android 5.0 or Later *As of July, 2019: Check with manufacturer for the most up-to-date compatibility Processor Requirement Intel Core 2 Duo RAM Requirements 4 GB, 8 GB Recommended Storage Requirements 30 GB Mobile Device Compatibility iPad Android Smartphone Android Tablet Minimum Display Resolution 1366 × 768 Internet Connection Yes Required Hardware Available USB 2.0 Port

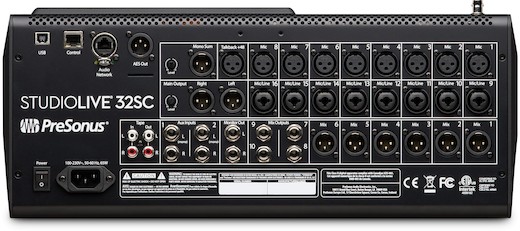

Connectivity	Analog Inputs 1 x Stereo RCA Tape Input (1 Stereo Pair) 1 x XLR Talkback Input 4 × 1/4" TRS Aux Return (2 Stereo Pairs) 8 x XLR 3-Pin Mic Input 8 x Combo XLR-1/4" TRS Mic/Line Input Analog Outputs 1 x Stereo RCA Tape Output (1 Stereo Pair) 2 x XLR 3-Pin Main Output 1 x XLR 3-Pin Mono-Summed Output 2 × 1/4" TRS Monitor Output 1 × 1/4" TRS Headphone Output 6 x XLR 3-Pin Aux/Matrix/Subgroup Output 4 × 1/4" TRS Aux/Matrix/Subgroup Output MIDI I/O None USB 1 x USB-B 2.0() Bluetooth 4.1
Digital Audio	Sample Rates 44.1 / 48 kHz Bit Depth AD/DA Conversion: 24-Bit DSP Dual-Core 32-Bit Floating Point Converter Dynamic Range 115 dBA at 48 kHz Jitter <20 ps RMS Jitter Attenuation >60 dB Latency 1.9 ms (Analog Input to Analog Output)
Digital I/O	1 x RJ45 (Control, 1 Gb/s) 1 x RJ45 AVB (I/O) 1 x XLR AES3 Output
Item Type	Audio
Performance	dBFS Reference Level 18 dBu = 0 dBFS Frequency Response Headphone Output: 20 Hz to 20 kHz ±0.5 dB Mic/Line Input to Main Output: 20 Hz to 20 kHz ±0.5 dBu (2901653073) Max Input Level Mic Input: +12 dBu Line Input: +18 dBu Tape Input:12 dBu Output Level Line Output: 18 dBu (2901653168) Tape/Record Output: +18 dBu (2901653168) XLR Output: +24 dBu (2901653168) Headphone Output Power 100 mW per Channel into 60 Ohms I/O Impedance Mic Input: 1 Kilohms Line Input: 10 Kilohms XLR Output: 100 Ohms Line Output: 100 Ohms Tape Output:100 Ohms Crosstalk Input to Output: -90 dB Adjacent Channels: -87 dB CMRR 65 dB at Unity Gain SNR Mic/Line Input to Main Output: 94 dBA at Unity Gain (4 dBu Reference) Headphone Output: 96 dB at Max Gain THD Mic/Line Input to Main Output: <0.005% at Unity Gain (4 dBu, 2901653246) THDN Headphone Output: 0.01% at Max Gain (Unweighted)
Phantom Power	+48 V ±2 V (Selectable on Individual Inputs)
Physical	Dimensions: 17.6 × 23 × 6.5″ Weight: 23.2 lb
Power	AC Input Power 90 to 230 VAC, 50 / 60 Hz Power Consumption 85 W Lamp Power 12 VDC
Sample Rate	44.1 / 48 kHz
Signal Processing	Gain/Trim Range Mic: 0 dB to +60 dB EQ Input Channels: 4-Band EQ Outputs: 6-Band EQ Solo/Mute Solo, Mute per Input Channel

See All

Includes

PreSonus StudioLive 32SC Series III S
USB 2.0 A Male to Standard-B 6-foot
3-prong cable (6’)
Cat6A cable (7’)
Case

Specifications

Audio Type	Other Audio
Brand	PreSonus
Channels	32 Analog Input Channels
Compatibility	OS Compatibility macOS 10.8.5 or Later Windows 7 Windows 8.1 Windows 10 iOS 10 or Later Android 5.0 or Later *As of July, 2019: Check with manufacturer for the most up-to-date compatibility Processor Requirement Intel Core 2 Duo RAM Requirements 4 GB, 8 GB Recommended Storage Requirements 30 GB Mobile Device Compatibility iPad Android Smartphone Android Tablet Minimum Display Resolution 1366 × 768 Internet Connection Yes Required Hardware Available USB 2.0 Port
Connectivity	Analog Inputs 1 x Stereo RCA Tape Input (1 Stereo Pair) 1 x XLR Talkback Input 4 × 1/4" TRS Aux Return (2 Stereo Pairs) 8 x XLR 3-Pin Mic Input 8 x Combo XLR-1/4" TRS Mic/Line Input Analog Outputs 1 x Stereo RCA Tape Output (1 Stereo Pair) 2 x XLR 3-Pin Main Output 1 x XLR 3-Pin Mono-Summed Output 2 × 1/4" TRS Monitor Output 1 × 1/4" TRS Headphone Output 6 x XLR 3-Pin Aux/Matrix/Subgroup Output 4 × 1/4" TRS Aux/Matrix/Subgroup Output MIDI I/O None USB 1 x USB-B 2.0() Bluetooth 4.1
Digital Audio	Sample Rates 44.1 / 48 kHz Bit Depth AD/DA Conversion: 24-Bit DSP Dual-Core 32-Bit Floating Point Converter Dynamic Range 115 dBA at 48 kHz Jitter <20 ps RMS Jitter Attenuation >60 dB Latency 1.9 ms (Analog Input to Analog Output)
Digital I/O	1 x RJ45 (Control, 1 Gb/s) 1 x RJ45 AVB (I/O) 1 x XLR AES3 Output
Item Type	Audio
Performance	dBFS Reference Level 18 dBu = 0 dBFS Frequency Response Headphone Output: 20 Hz to 20 kHz ±0.5 dB Mic/Line Input to Main Output: 20 Hz to 20 kHz ±0.5 dBu (2901653073) Max Input Level Mic Input: +12 dBu Line Input: +18 dBu Tape Input:12 dBu Output Level Line Output: 18 dBu (2901653168) Tape/Record Output: +18 dBu (2901653168) XLR Output: +24 dBu (2901653168) Headphone Output Power 100 mW per Channel into 60 Ohms I/O Impedance Mic Input: 1 Kilohms Line Input: 10 Kilohms XLR Output: 100 Ohms Line Output: 100 Ohms Tape Output:100 Ohms Crosstalk Input to Output: -90 dB Adjacent Channels: -87 dB CMRR 65 dB at Unity Gain SNR Mic/Line Input to Main Output: 94 dBA at Unity Gain (4 dBu Reference) Headphone Output: 96 dB at Max Gain THD Mic/Line Input to Main Output: <0.005% at Unity Gain (4 dBu, 2901653246) THDN Headphone Output: 0.01% at Max Gain (Unweighted)
Phantom Power	+48 V ±2 V (Selectable on Individual Inputs)
Physical	Dimensions: 17.6 × 23 × 6.5″ Weight: 23.2 lb
Power	AC Input Power 90 to 230 VAC, 50 / 60 Hz Power Consumption 85 W Lamp Power 12 VDC
Sample Rate	44.1 / 48 kHz
Signal Processing	Gain/Trim Range Mic: 0 dB to +60 dB EQ Input Channels: 4-Band EQ Outputs: 6-Band EQ Solo/Mute Solo, Mute per Input Channel

See All

Resources

Manual

Downloads

Reviews

See Reviews

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$38.00	$155.00	$193.00	$64.33
4 days	$41.00	$163.00	$204.00	$51.00
7 days	$54.00	$202.00	$256.00	$36.57
10 days	$73.00	$257.00	$330.00	$33.00
14 days	$95.00	$320.00	$415.00	$29.64
21 days	$127.00	$414.00	$541.00	$25.76
30 days	$159.00	$508.00	$667.00	$22.23
45 days	$208.00	$649.00	$857.00	$19.04
60 days	$243.00	$752.00	$995.00	$16.58
90 days	$313.00	$956.00	$1269.00	$14.10

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$27.00	$155.00	$182.00	$60.67
4 days	$29.00	$163.00	$192.00	$48.00
7 days	$38.00	$202.00	$240.00	$34.29
10 days	$51.00	$257.00	$308.00	$30.80
14 days	$67.00	$320.00	$387.00	$27.64
21 days	$89.00	$414.00	$503.00	$23.95
30 days	$112.00	$508.00	$620.00	$20.67
45 days	$146.00	$649.00	$795.00	$17.67
60 days	$171.00	$752.00	$923.00	$15.38
90 days	$220.00	$956.00	$1176.00	$13.07

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$155.00	$51.67
4 days	$163.00	$40.75
7 days	$202.00	$28.86
10 days	$257.00	$25.70
14 days	$320.00	$22.86
21 days	$414.00	$19.71
30 days	$508.00	$16.93
45 days	$649.00	$14.42
60 days	$752.00	$12.53
90 days	$956.00	$10.62
