RED DIGITAL CINEMA DSMC2 Base I/O V-Lock Expander

$134.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

RED DIGITAL CINEMA DSMC2 Base I/O V-Lock Expander

RED DIGITAL CINEMA DSMC2 Base I/O V-Lock Expander

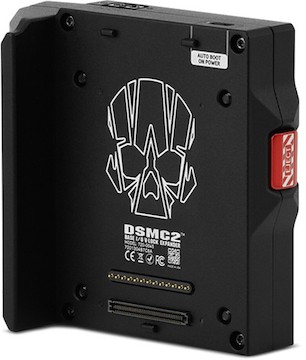

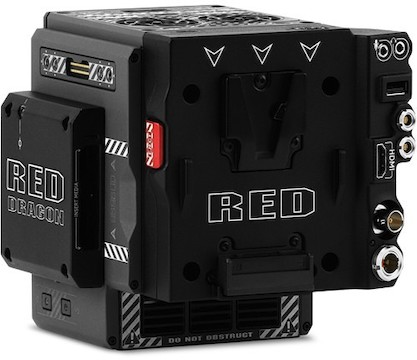

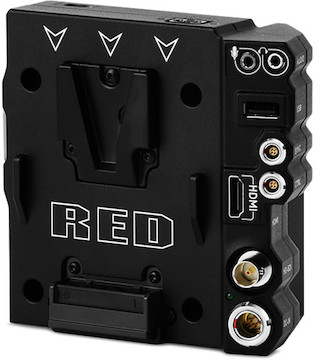

The RED DIGITAL CINEMA DSMC2 Base I/O V-Lock Expander brings V-Mount power and additional 3G-SDI, HDMI, control, and sync outputs to your RED DSMC2 brain of choice. Key features include:

DC power input
Lightweight magnesium construction
For DSMC2 brains
Audio and video I/O

Q & A

I want to rent this with a RED Brain- do I need to install it?

If you rent this expander with one of our RED Brains, we’ll install the expander at HQ for you!
If you’re renting this to add to a camera you already own, you’ll need the RED Sidewinder Multitool to properly install it.

Does this rental include a V-Mount battery?

Nah, just the expander and DC power cable to connect to your RED brain. Check out the Recommended section on your screen if you’d like to add a battery to your order!

Specifications

Audio	24-bit, 48 kHz Uncompressed Unbalanced mic level
Brand	RED
Dimensions	4.57 × 4.94 × 2.25″
Environmental	Operating Temperature: 32 to 104°F / 0 to 40°C Humidity: 0% to 85%, non-condensing Storage Temperature: -4 to 122°F / -20 to 50°C Humidity: 0% to 85%, non-condensing
Interface	Expander-to-BRAIN Power delivery via rear pogo connector (13-pin) Communication via rear I/O connector (4×40-pin) Expander DC In: 1 × 6-pin 1B LEMO socket 3G-SDI Output: 1 × 75 Ohm BNC, 60 Hz max frame rate HDMI 1.2 Output: 1 x USB Type-A socket, 60 Hz max frame rate Sync: 1 × 4-pin 00B LEMO socket (genlock in/timecode in/sync in) Control: 1 × 4-pin 00B LEMO socket (tally out/RS-232 RX and TX) USB Power Output: 1 x USB Type-A socket, 1.5 A D-Tap Aux Power Output: 3.0 A Microphone Input: 1 × 3.5 mm stereo jack Headphone Output: 1 × 3.5 mm jack
Item Type	Power
Material	Magnesium
Mounting	BRAIN: 4 x M4 mounting Screws
Power Compatibility	RED
Power Type	Other
Weight	1.0 lb

See All

Includes

RED DIGITAL CINEMA DSMC2 Base I/O V-Lock Expander

Specifications

Audio	24-bit, 48 kHz Uncompressed Unbalanced mic level
Brand	RED
Dimensions	4.57 × 4.94 × 2.25″
Environmental	Operating Temperature: 32 to 104°F / 0 to 40°C Humidity: 0% to 85%, non-condensing Storage Temperature: -4 to 122°F / -20 to 50°C Humidity: 0% to 85%, non-condensing
Interface	Expander-to-BRAIN Power delivery via rear pogo connector (13-pin) Communication via rear I/O connector (4×40-pin) Expander DC In: 1 × 6-pin 1B LEMO socket 3G-SDI Output: 1 × 75 Ohm BNC, 60 Hz max frame rate HDMI 1.2 Output: 1 x USB Type-A socket, 60 Hz max frame rate Sync: 1 × 4-pin 00B LEMO socket (genlock in/timecode in/sync in) Control: 1 × 4-pin 00B LEMO socket (tally out/RS-232 RX and TX) USB Power Output: 1 x USB Type-A socket, 1.5 A D-Tap Aux Power Output: 3.0 A Microphone Input: 1 × 3.5 mm stereo jack Headphone Output: 1 × 3.5 mm jack
Item Type	Power
Material	Magnesium
Mounting	BRAIN: 4 x M4 mounting Screws
Power Compatibility	RED
Power Type	Other
Weight	1.0 lb

See All
