Roland P-20HD Video Instant Replayer

$150.00
/
7 Day

Rental

Interested in purchasing?

Includes

  • P-20HD Instant Replayer
  • AC adapter
  • Power cable
  • Case

Roland P-20HD Video Instant Replayer

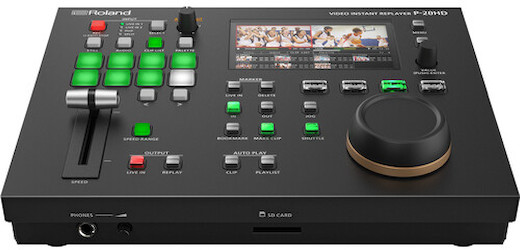

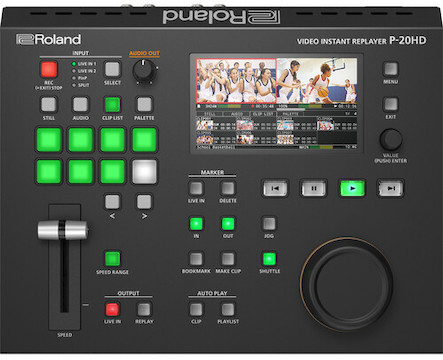

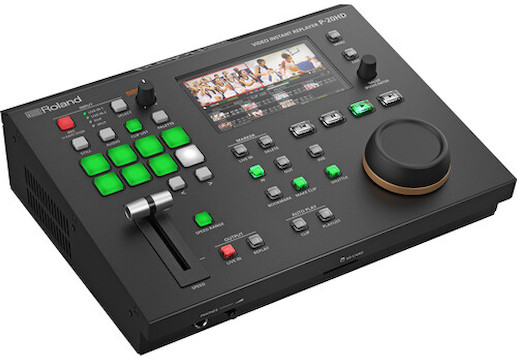

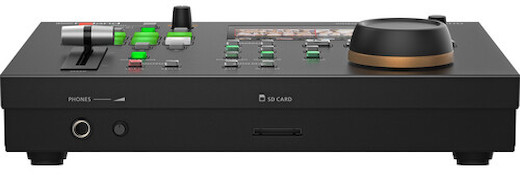

The Roland P-20HD Video Instant Replayer is a standalone, easy-to-use production tool that offers a 1080p workflow for instant replays, transitions, and voiceovers. Key features include:

  • Direct-access controller with large integrated display

  • Simultaneous record and replay using SD cards

  • Simple playlist builder for easy highlight reel access

  • Built-in input scaling and switching for upstream or downstream workflows

Read More

Q & A

  • Does the P-20HD support wired LAN control?
    • No. The P-20HD does not currently support control over ethernet but the feature is expected in a future firmware update.

  • Can I still capture new footage while replaying saved clips?
    • Yes, new footage can be saved to an SD card in the background while replaying old footage.

  • Can I connect other switchers to the P-20HD?
    • Yes, extra switchers or cameras can be connected for expanded workflows.

  • Specifications

    Audio Type

    Switching

    Brand

    Roland

    Dimensions

    10.4 × 8.5 × 3.4″

    Display

    4.3" TFT Color LCD: 480 × 272 Resolution

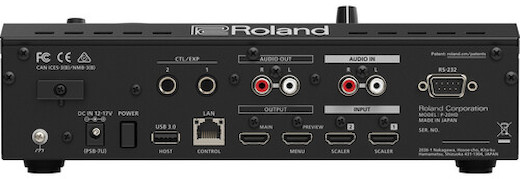

    Inputs/Outputs

    Video Inputs

    • (2) HDMI Type A
    Video Outputs
    • HDMI Type A
    • HDMI Type A (Preview)
    Audio Inputs
    • Embedded HDMI Audio
    • RCA R/L
    Audio Outputs
    • Embedded HDMI Audio
    • RCA R/L
    • 1/4" Headphone Jack
    Other Connectors
    • USB Type-A (for Flash Drives)
    • DC Power Input (12 to 17 V)
    • RJ-45, 1000BaseT for Remote Control (via Future Update)
    • RS-232 DB-9 for Remote Control (via Future Update)
    • CTL/EXP 1, 2: 1/4" TRS (via Future Update)

    Item Type

    Recorder and Switcher

    Video Formats

    1080p60/59.94
    1080i59.94/50
    720p60/59.94
    1920 × 1200 at 60 Hz (WUXGA, Reduced Blanking)
    1600 × 1200 at 60 Hz (UXGA)
    1400 × 1050 at 60 Hz (SXGA+)
    1366 × 768 at 60 Hz (FWXGA)
    1280 × 1024 at 60 Hz (SXGA)
    1280 × 800 at 60 Hz (WXGA)
    1024 × 768 at 60 Hz (XGA)
    800 × 600 at 60 Hz (SVGA)

    Weight

    4.63 lb

    Includes

    • P-20HD Instant Replayer
    • AC adapter
    • Power cable
    • Case

    Specifications

    Audio Type

    Switching

    Brand

    Roland

    Dimensions

    10.4 × 8.5 × 3.4″

    Display

    4.3" TFT Color LCD: 480 × 272 Resolution

    Inputs/Outputs

    Video Inputs

    • (2) HDMI Type A
    Video Outputs
    • HDMI Type A
    • HDMI Type A (Preview)
    Audio Inputs
    • Embedded HDMI Audio
    • RCA R/L
    Audio Outputs
    • Embedded HDMI Audio
    • RCA R/L
    • 1/4" Headphone Jack
    Other Connectors
    • USB Type-A (for Flash Drives)
    • DC Power Input (12 to 17 V)
    • RJ-45, 1000BaseT for Remote Control (via Future Update)
    • RS-232 DB-9 for Remote Control (via Future Update)
    • CTL/EXP 1, 2: 1/4" TRS (via Future Update)

    Item Type

    Recorder and Switcher

    Video Formats

    1080p60/59.94
    1080i59.94/50
    720p60/59.94
    1920 × 1200 at 60 Hz (WUXGA, Reduced Blanking)
    1600 × 1200 at 60 Hz (UXGA)
    1400 × 1050 at 60 Hz (SXGA+)
    1366 × 768 at 60 Hz (FWXGA)
    1280 × 1024 at 60 Hz (SXGA)
    1280 × 800 at 60 Hz (WXGA)
    1024 × 768 at 60 Hz (XGA)
    800 × 600 at 60 Hz (SVGA)

    Weight

    4.63 lb
