SlingStudio Hub Production Kit

The SlingStudio Hub Production Kit is a package that allows for completely wireless camera switching, recording, and streaming of up to four 1080p 30 fps video signals to YouTube, Facebook Live, and other RTMP streaming services. Key features include:

  • Up to four-camera wireless streaming

  • Wireless camera link included for HDMI video sources

  • Up to three hours of streaming from one battery

  • iPad or Mac computer required!

Read More

Q & A

  • What if I need to shoot for longer than 2-3 hours?
    • While we do include an AC Adapter, you can rent additional batteries here. Do note that spare batteries do not include a charger, so you’ll have to use the power supply that comes standard with the SlingStudio Hub Production Kit.

    • The CameraLink transmitter runs off of an internal battery that is rated to last approximately 2 hours. For longer shoots, you can switch to a new, fully charged CameraLink with a brief video feed interruption. Additional CameraLinks can be found here.

  • Do I really need an iPad or Mac computer?
    • Yes! The entire setup process / interface requires an iPad or Mac. There is absolutely no way around this.

    • Since many people own an iPad of their own, we do not include one to try to keep cost down. However, check the compatibility list first to ensure yours is compatible.

    • If you do not own an iPad or Mac, we do rent the Apple iPad mini 4 (Wi-Fi + 4G LTE) 128GB.

  • Are HDMI cables included in this package?
    • No. Compatible cables can be found on the left of this page under the Recommended HDMI cables tab. The Hub and CameraLink have different HDMI sizes, so choose accordingly.

  • What is the operating range of the CameraLink?
    • The transmitter will work up to 300 feet away line-of-sight in an interference free environment.

  • Specifications

    Brand

    SlingStudio

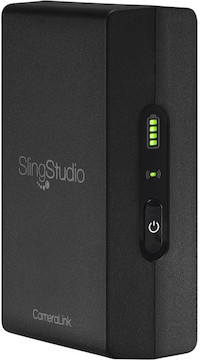

    CameraLink

    Video Input

    • 1x HDMI Type D (micro)
    Supported Video Encoding
    • 1080p60 up to 30 Mbps
    • 1080p30 up to 16 Mbps
    • 720p60 up to 16 Mbps
    • 720p30 up to 4 Mbps
    Supported Audio Encoding
    • AAC-LC at 320 kb/s
    • 2-channel 48 KHz, 16-bit (HDMI embedded)
    Internal Battery
    • Operation Time: 2+ hours
    • Recharge Time: 3-4 hours (Micro USB)
    Wireless
    • 802.11ac Standard
    • Up to 300’ transmission distance

    Item Type

    Monitoring

    Monitoring Type

    Streaming and Wireless

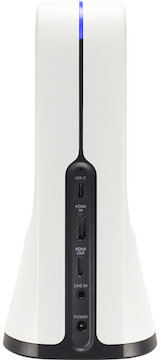

    Production Hub

    Inputs/Outputs

    • Video In: 1x HDMI Type A (full)
    • Video Out: 1x HDMI Type C (mini)
    • Analog Audio In: 3.5mm line-level (external preamp or mixer required)
    Wireless Video Support
    • 4x sources (1080p30/720p60/720p30)
    • 2x sources (1080p60)

    Recording Media
    • SDHC/SDXC
    • External drive compatible
    Multi-Stream Recording
    • 4x Video sources/inputs
    • 1x Quad view
    • 1x Program stream
    • 1x line-in (audio only)

    Recommended For

    New Products and New Products

    Video Effects

    Transitions

    • Cut
    • Dissolve
    • Wipe
    Compositions
    • Picture-in-picture
    • Split views
    Graphics
    • Chroma Key (green screen)
    • Text overlay
    • Lower-thirds (title and scoreboard)
    • Motion Graphics
    Graphics Support
    • JPG/PNG 1920×1080
    • MP4/MOV 1920×1080 (H.264 required, 4 GB maximum file size)
    Additional Support
    • Auto-Switching (interval or voice-activated)
    • Low-Delay/Video Conferencing Mode

    Includes

    Specifications

    Brand

    SlingStudio

    CameraLink

    Video Input

    • 1x HDMI Type D (micro)
    Supported Video Encoding
    • 1080p60 up to 30 Mbps
    • 1080p30 up to 16 Mbps
    • 720p60 up to 16 Mbps
    • 720p30 up to 4 Mbps
    Supported Audio Encoding
    • AAC-LC at 320 kb/s
    • 2-channel 48 KHz, 16-bit (HDMI embedded)
    Internal Battery
    • Operation Time: 2+ hours
    • Recharge Time: 3-4 hours (Micro USB)
    Wireless
    • 802.11ac Standard
    • Up to 300’ transmission distance

    Item Type

    Monitoring

    Monitoring Type

    Streaming and Wireless

    Production Hub

    Inputs/Outputs

    • Video In: 1x HDMI Type A (full)
    • Video Out: 1x HDMI Type C (mini)
    • Analog Audio In: 3.5mm line-level (external preamp or mixer required)
    Wireless Video Support
    • 4x sources (1080p30/720p60/720p30)
    • 2x sources (1080p60)

    Recording Media
    • SDHC/SDXC
    • External drive compatible
    Multi-Stream Recording
    • 4x Video sources/inputs
    • 1x Quad view
    • 1x Program stream
    • 1x line-in (audio only)

    Recommended For

    New Products and New Products

    Video Effects

    Transitions

    • Cut
    • Dissolve
    • Wipe
    Compositions
    • Picture-in-picture
    • Split views
    Graphics
    • Chroma Key (green screen)
    • Text overlay
    • Lower-thirds (title and scoreboard)
    • Motion Graphics
    Graphics Support
    • JPG/PNG 1920×1080
    • MP4/MOV 1920×1080 (H.264 required, 4 GB maximum file size)
    Additional Support
    • Auto-Switching (interval or voice-activated)
    • Low-Delay/Video Conferencing Mode
