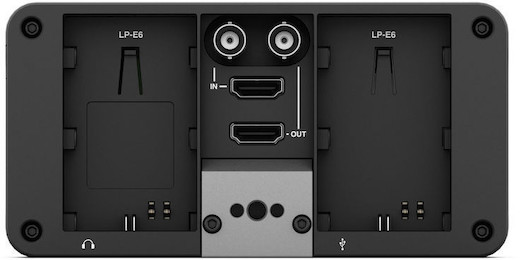

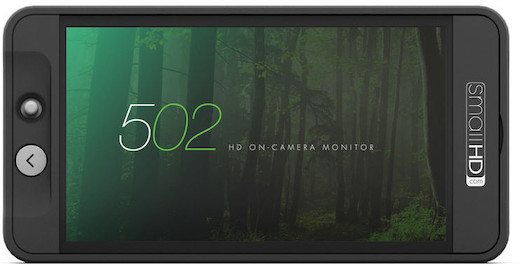

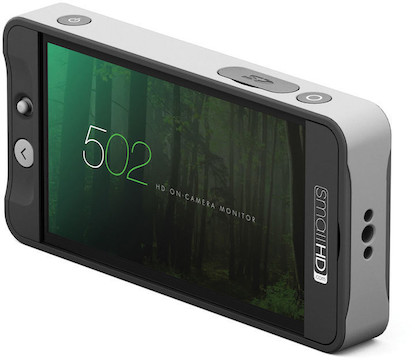

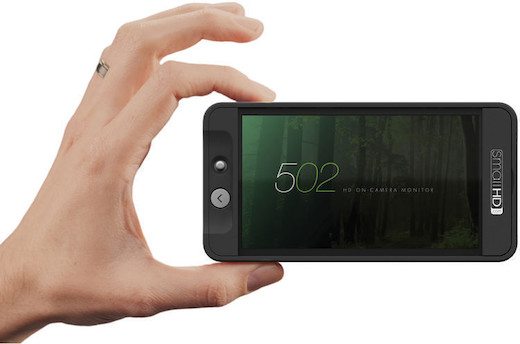

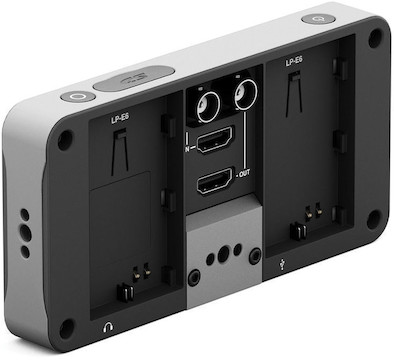

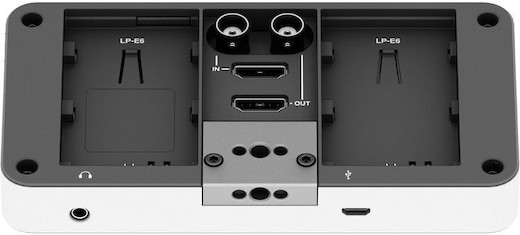

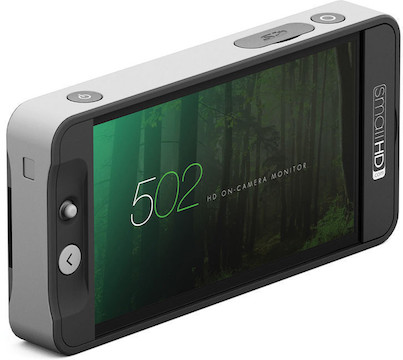

SmallHD 5" 502 HDMI / SDI On-Camera Field Monitor

Includes

502 monitor w/integrated LP-E6 dual battery plate
(2) Canon LP-E6 batteries
Canon LC-E6 charger
Hot shoe mount
Monitor arm
Redrock microMount
Porta Brace stuff sack

Resources

Manual

SmallHD 5" 502 HDMI / SDI On-Camera Field Monitor

The used SmallHD 5-inch 502 HDMI/SDI On-Camera Field Monitor is a small, high-resolution monitor perfect for on-camera and gimbal use. Key features include:

High-resolution monitor
Compact, lightweight construction
HDMI and SDI inputs and outputs
Highly configurable

Q & A

Does this rental include an AC adapter?

This rental doesn’t come standard with an AC adapter or big-battery solution, but we offer both as separate rental items. See the Recommended section on left-hand side of this page for options.

Does this rental include HDMI or SDI cables?

This rental doesn’t include HDMI or SDI cables. If you need HDMI/SDI cables, you can find them here.

Is this monitor compatible with the SmallHD Xrite Color Calibration Probe?

This monitor is currently not compatible with the SmallHD Xrite Color Calibration Probe

Is this monitor compatible with Paralinx and ikan products?

This monitor is not compatible with Paralinx and ikan products.

Specifications

Brand	SmallHD
Display	Screen Size 5“ Resolution 1920 × 1080 Pixel Density 441 PPI Brightness 400 nits Bit Depth 24-bit (8-bit processing)
Inputs/Outputs	Video Inputs 1x SDI 1x HDMI Video Outputs 1x SDI 1x HDMI SDI Input/Output Formats RGB/YCC 4:2:2 and 4:4:4 1080p: 23.98/24/25/30 1080pSF: 23.98/24/25/29.97 1080i: 50/59.94/60 720p: 50/59.94/60 HDMI Input Formats YCC 4:2:2, 8/10/12-bit in RGB & YCC 4:4:4 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080i: 50/59.94/60/100/119.88/120 720p: 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120 576p: 50/100/200 576i: 50/100/200 480p: 50/59.94/60/100/119.88/120/239.76/240 480i: 59.94/60/100/119.88/120/239.76/240 HDMI Output Formats 1080p: 23.98/24/25/30/50/59.94/60 1080pSF: 23.98/24/25/30 1080i: 50/59.94/60 720p: 50/59.94/60 Additional Inputs/Outputs Stereo Out (headphones)
Item Type	Monitoring & Recording
Monitoring & Recording Type	Monitor
Physical	Dimensions (L x W x D) 5.8” x 2.9” x .8” Weight (without batteries) Approximately .46 lbs Accessory Mounts 3x ¼-20 thread points
Power Supply	Power Draw Approximately 8 watts Battery Compatibility Dual Canon LP-E6 battery trays Approximate Operation Time (LP-E6) Approximately 65 minutes per battery Approximate Recharge Time (LP-E6/LC-E6) Approximately 130 minutes per battery Additional Power Compatibility SmallHD AC adapter for 500/700 Series SmallHD D-Tap with LP-E6 coupler

Includes

502 monitor w/integrated LP-E6 dual battery plate
(2) Canon LP-E6 batteries
Canon LC-E6 charger
Hot shoe mount
Monitor arm
Redrock microMount
Porta Brace stuff sack

Specifications

Brand	SmallHD
Display	Screen Size 5“ Resolution 1920 × 1080 Pixel Density 441 PPI Brightness 400 nits Bit Depth 24-bit (8-bit processing)
Inputs/Outputs	Video Inputs 1x SDI 1x HDMI Video Outputs 1x SDI 1x HDMI SDI Input/Output Formats RGB/YCC 4:2:2 and 4:4:4 1080p: 23.98/24/25/30 1080pSF: 23.98/24/25/29.97 1080i: 50/59.94/60 720p: 50/59.94/60 HDMI Input Formats YCC 4:2:2, 8/10/12-bit in RGB & YCC 4:4:4 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080i: 50/59.94/60/100/119.88/120 720p: 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120 576p: 50/100/200 576i: 50/100/200 480p: 50/59.94/60/100/119.88/120/239.76/240 480i: 59.94/60/100/119.88/120/239.76/240 HDMI Output Formats 1080p: 23.98/24/25/30/50/59.94/60 1080pSF: 23.98/24/25/30 1080i: 50/59.94/60 720p: 50/59.94/60 Additional Inputs/Outputs Stereo Out (headphones)
Item Type	Monitoring & Recording
Monitoring & Recording Type	Monitor
Physical	Dimensions (L x W x D) 5.8” x 2.9” x .8” Weight (without batteries) Approximately .46 lbs Accessory Mounts 3x ¼-20 thread points
Power Supply	Power Draw Approximately 8 watts Battery Compatibility Dual Canon LP-E6 battery trays Approximate Operation Time (LP-E6) Approximately 65 minutes per battery Approximate Recharge Time (LP-E6/LC-E6) Approximately 130 minutes per battery Additional Power Compatibility SmallHD AC adapter for 500/700 Series SmallHD D-Tap with LP-E6 coupler

Resources

Manual

Reviews

See Reviews
