SmallHD Cine 24" 4K High Bright Pro Monitor w/ V-Mount

$430.00
/
7 Day

Rental

Available 09/30/21

Renting this item will adjust your rental dates.

Interested in purchasing?

Learn More

Includes

  • Cine 24" monitor
  • Acrylic screen protector
  • (2) 1/4-20 cheese stick mounts
  • (2) Combo cheese stick mounts
  • Top handle

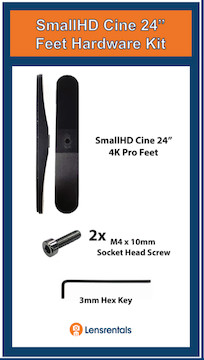

  • (2) Desktop feet
  • Vesa mount w/ 5/8" spigot
  • Dual V-Mount battery plate
  • AC adapter
  • Non-polarized cable
  • Case

Resources

  • Manual
  • SmallHD Cine 24" 4K High Bright Pro Monitor w/ V-Mount

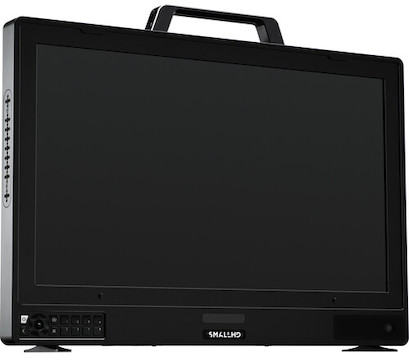

    The SmallHD Cine 24" 4K High Bright Pro Monitor w/ V-Mount is a V-mount battery compatible, large-format production monitor that can ingest and display 4K video via one of four 12-SDI inputs or one HDMI 2.0 Type-A input. Key features include:

    • 4K, large-format, off-camera monitor

    • 115% DCI-P3 color gamut coverage, 1000:1 contrast ratio

    • Dovetail Mounting Rail for battery and accessory mounting

    • V-mount compatible, batteries not included

    Read More

    Q & A

  • Are there any known issues with this product?
    • Yes. This monitor can’t currently output HDMI, doesn’t support dual or quad view over SDI, and doesn’t currently support audio through the 3.5mm (1/8") output.

  • Why can't I input HD over SDI?
    • The Cine 24" may experience issues ingesting Level B SDI mapping. If your HD SDI input is not recognized by the Cine 24", please swap to Level A SDI on your input source.

  • Do you offer a Gold Mount version?
    • Yes! If you’d prefer the Cine 24" with a Gold-Mount battery plate, you can find it here.

  • Specifications

    Brand

    SmallHD

    Display

    Screen Size

    • 24 in
    Resolution
    • 3840 × 2160
    Pixel Density
    • 93 PPI
    Bit Depth
    • 8-bit+FRC (1.07 billion colors)
    Color Gamut
    • 115% DCI-P3
    Contrast Ratio
    • 1000:1
    Brightness
    • 1350 cd/m2

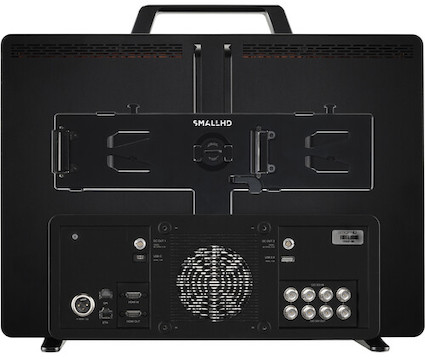

    Inputs/Outputs

    Video Inputs

    • (4) 12G-SDI
    • HDMI Type-A
    Video Outputs
    • (4) 12G-SDI
    • HDMI Type-A (not currently supported)
    SDI Input Formats
    • Up to UHD 4K/60p
    HDMI Input Formats
    • Up to DCI 4K/60p
    Additional Inputs/Outputs
    • USB Type-C
    • (2) USB Type-A
    • 3.5mm (1/8") Audio Output
    • XLR3 Power Input
    • (2) 2-pin Lemo Output 12V DC (2A)

    Item Type

    Monitoring

    Monitoring Type

    Monitor

    Physical

    Weight

    • 16.5 lb (monitor only)
    Mounting
    • 100mm VESA spaced threads
    • (36) 1/4"-20 female threads

    Power

    Input

    • 3-pin XLR (210W max, 12V-34V, 18A max)
    • Dual V-Mount battery plate
    Consumption
    • 28w (monitor only)
    • 209w (w/max access. power draw)

    Includes

    • Cine 24" monitor
    • Acrylic screen protector
    • (2) 1/4-20 cheese stick mounts
    • (2) Combo cheese stick mounts
    • Top handle
    • (2) Desktop feet
    • Vesa mount w/ 5/8" spigot
    • Dual V-Mount battery plate
    • AC adapter
    • Non-polarized cable
    • Case

    Specifications

    Brand

    SmallHD

    Display

    Screen Size

    • 24 in
    Resolution
    • 3840 × 2160
    Pixel Density
    • 93 PPI
    Bit Depth
    • 8-bit+FRC (1.07 billion colors)
    Color Gamut
    • 115% DCI-P3
    Contrast Ratio
    • 1000:1
    Brightness
    • 1350 cd/m2

    Inputs/Outputs

    Video Inputs

    • (4) 12G-SDI
    • HDMI Type-A
    Video Outputs
    • (4) 12G-SDI
    • HDMI Type-A (not currently supported)
    SDI Input Formats
    • Up to UHD 4K/60p
    HDMI Input Formats
    • Up to DCI 4K/60p
    Additional Inputs/Outputs
    • USB Type-C
    • (2) USB Type-A
    • 3.5mm (1/8") Audio Output
    • XLR3 Power Input
    • (2) 2-pin Lemo Output 12V DC (2A)

    Item Type

    Monitoring

    Monitoring Type

    Monitor

    Physical

    Weight

    • 16.5 lb (monitor only)
    Mounting
    • 100mm VESA spaced threads
    • (36) 1/4"-20 female threads

    Power

    Input

    • 3-pin XLR (210W max, 12V-34V, 18A max)
    • Dual V-Mount battery plate
    Consumption
    • 28w (monitor only)
    • 209w (w/max access. power draw)

    Resources

  • Manual
  • Reviews

    See Reviews
