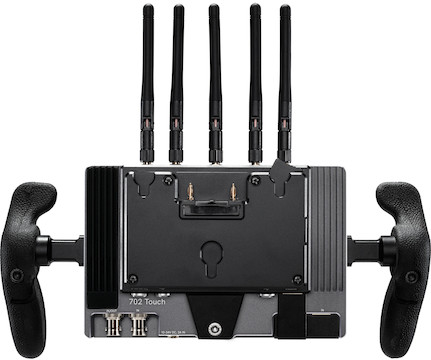

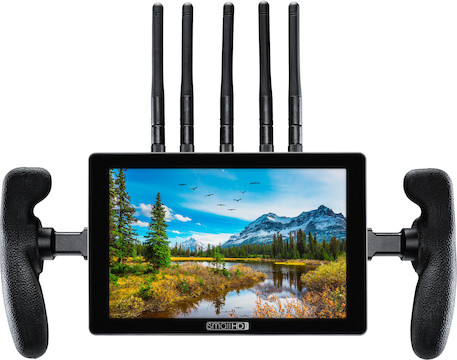

SmallHD Director's 702 Touch w/ Bolt 4K 1500 RX (Gold Mount)

$280.00
/
7 Day

Rental

Interested in purchasing?

Includes

SmallHD Director's 702 Touch w/ Bolt 4K 1500 RX (Gold Mount)

The SmallHD Director’s 702 Touch w/ Bolt 4K 1500 RX (Gold Mount) is a seamlessly integrated long-range wireless Director’s monitor solution in the Bolt 4K / Smart 7 ecosystem. Key features include:

  • Receive zero-delay 4K wireless video up to 1500 feet line-of-sight

  • 7-inch, 1920 × 1200, 1500 cd/m² display

  • SmallHD software toolset w/ universal cross-compatibility between all Bolt 4K devices

  • Batteries not included

Read More

Q & A

  • Does this rental include HDMI or SDI cables?
    • This rental doesn’t include HDMI or SDI cables. If you need them, you can find them here.

  • Does this rental include batteries or chargers?
    • No. If you need Gold Mount batteries or chargers, they can be rented separately here.

  • How many Bolt 4K receivers can be paired to one transmitter?
    • A Bolt 4K transmitter can send video to up to six receivers.

  • There are too many wireless kits! Which one do I choose?
    • We have a variety of wireless kits available designed to fit into just about any workflow. The key differences are the monitor, the Bolt 4K Module, and the battery plate. Each receiver is compatible with each other and either of the transmitter options, but there are some limitations.

    • 702 Touch vs INDIE 7: These are the monitors the kits include, and while both are great options, there are a few notable differences. The 702 Touch is slightly more expensive, features a maximum brightness of 1500 nits, 8-Bit color depth, and a DCI-P3 color space. The INDIE 7 is slightly cheaper, but has a dimmer 1000 nits, 10-Bit color depth, and displays a more narrow range of colors.

    • Bolt 4K 1500’ vs 750’: The wireless ranges found on the Bolt 4K modules is rated for either 1500’ or 750’. Which one you choose will depend on how large of a venue you’ll be shooting in. If you’re in a larger space and aren’t sure exactly how far apart the transmitter and receiver will be, it might be safer to pick the larger ranged options. Keep in mind, even if you use a transmitter rated for 1500 feet, if the receiver is a 750’ model, it’ll won’t receive a signal from distances greater than 750 feet.

    • V-Mount vs Gold Mount: We offer each of these kits with either a V-mount battery plate or a gold mount battery plate. If you’re already using a specific type of battery for other parts of your workflow, it would be convenient to choose a kit with the compatible battery plate.

    • Directors Monitor vs Standard: We offer versions of these kits that include the SmallHD Handles and Neck Strap kit, if you wish to turn your monitor into a Director’s Monitor. If you don’t need these, choose the standard model.

    • Remember, each of these kits will work with each other, just make sure the distance between the transmitter and receiver does not exceed the range of the Bolt 4K module with the lowest rated distance.

  • Specifications

    Brand

    SmallHD and Teradek

    Display

    Screen Type

    • 7“ IPS LCD
    Resolution
    • 1920 × 1200
    Pixel Density
    • 323 PPI
    Bit Depth
    • 8-bit display/12-bit color processing
    Brightness
    • 1500 nits

    Inputs/Outputs

    Video Inputs

    • 3G-SDI
    • HDMI Type A
    Video Outputs
    • 3G-SDIt
    • HDMI Type A
    3G-SDI Formats
    • 10-Bit 4:2:2 YCC
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 120/119.88/100/60/59.94/50
    • 720p: 60/59.94/50/30/29.97/25/24/23.98
    HDMI Formats
    • 8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC
    • RGB & YCC 4:4:4 @ 8/10/12-bits
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
    • 576p: 200/100/50
    • 480p: 240/239.76/120/119.88/60/59.94
    Additional Inputs/Outputs
    • ⅛” Headphone
    • Micro USB

    Item Type

    Monitoring

    Monitoring Type

    Wireless and Monitor

    Physical

    Dimensions

    • 7.09 × 4.67 × 1.29″
    Weight
    • 18.9 oz (without battery)

    System

    Bolt 4K

    Wireless Range

    1500’ line-of-sight

    Includes

    Specifications

    Brand

    SmallHD and Teradek

    Display

    Screen Type

    • 7“ IPS LCD
    Resolution
    • 1920 × 1200
    Pixel Density
    • 323 PPI
    Bit Depth
    • 8-bit display/12-bit color processing
    Brightness
    • 1500 nits

    Inputs/Outputs

    Video Inputs

    • 3G-SDI
    • HDMI Type A
    Video Outputs
    • 3G-SDIt
    • HDMI Type A
    3G-SDI Formats
    • 10-Bit 4:2:2 YCC
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 120/119.88/100/60/59.94/50
    • 720p: 60/59.94/50/30/29.97/25/24/23.98
    HDMI Formats
    • 8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC
    • RGB & YCC 4:4:4 @ 8/10/12-bits
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
    • 576p: 200/100/50
    • 480p: 240/239.76/120/119.88/60/59.94
    Additional Inputs/Outputs
    • ⅛” Headphone
    • Micro USB

    Item Type

    Monitoring

    Monitoring Type

    Wireless and Monitor

    Physical

    Dimensions

    • 7.09 × 4.67 × 1.29″
    Weight
    • 18.9 oz (without battery)

    System

    Bolt 4K

    Wireless Range

    1500’ line-of-sight
