Manfrotto 504HD Head w/ 546B 2-Stage Aluminum Tripod System

$141.00
/
8 Day

Rental

Interested in purchasing?

Includes

  • 504HD fluid head
  • 509PL QR Plate
  • (2) screws (1/4"-20)
  • Bushing
  • 504/509HLV Pan Bar
  • 546B tripod legs
  • Padded carry case

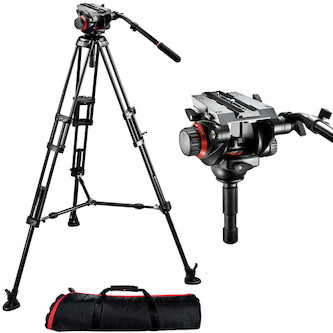

Manfrotto 504HD Head w/ 546B 2-Stage Aluminum Tripod System

The 504HD Head with 546B 2-Stage Aluminum Tripod System is a medium-duty fluid-head kit and the predecessor to the 504X w/ Alu Twin Tripod. Key features include:

  • 16.5-lb. maximum capacity

  • Four-step counterbalance

  • 75mm half ball

  • Mid-level spreader

Read More

Q & A

  • Does this tripod kit work well for heavy-duty slider use?
  • Does this tripod kit work well for general slider use?
    • Due to the the 504 head’s size and weight (approximately 7 lbs.), we don’t recommend using it with most of our sliders. For slider use, we recommend the 502 Head and 475B Tripod Kit.

  • How many pan bars are included with this tripod kit?
    • You’ll receive one pan bar with the rental of this tripod. If you need a second pan bar for a studio setup, we also rent spare Manfrotto 509HVL Pan Bars.

  • Specifications

    Brand

    Manfrotto

    Fluid Head

    Type

    • 504HD
    Camera Mounting Plate
    • 504 quick release
    • ¼-20 and ⅜ compatibility (screws included)
    Pan Arm
    • 504/509HLV Pan Bar
    Ball Base
    • 75mm
    Capacity
    • Up to 16.5 lbs. Weight
      • 6.3 lbs.

    Item Type

    Tripods and Tripod Kits

    Support Type

    Fluidhead Kits

    Tripod

    Type

    • 546B 2-Stage Tripod
    Capacity
    • Approximately 35 lbs.
    Height
    • Maximum: 60.63”
    • Minimum: 11.81”
    Size
    • 8.1 lbs.
    • 27.17” collapsed length
    Build
    • Aluminum
    • Mid-Leg spreader
    • 3x spiked feet with rubber overshoe
    • 75mm Top Casting

    Includes

    • 504HD fluid head
    • 509PL QR Plate
    • (2) screws (1/4"-20)
    • Bushing
    • 504/509HLV Pan Bar
    • 546B tripod legs
    • Padded carry case

    Specifications

    Brand

    Manfrotto

    Fluid Head

    Type

    • 504HD
    Camera Mounting Plate
    • 504 quick release
    • ¼-20 and ⅜ compatibility (screws included)
    Pan Arm
    • 504/509HLV Pan Bar
    Ball Base
    • 75mm
    Capacity
    • Up to 16.5 lbs. Weight
      • 6.3 lbs.

    Item Type

    Tripods and Tripod Kits

    Support Type

    Fluidhead Kits

    Tripod

    Type

    • 546B 2-Stage Tripod
    Capacity
    • Approximately 35 lbs.
    Height
    • Maximum: 60.63”
    • Minimum: 11.81”
    Size
    • 8.1 lbs.
    • 27.17” collapsed length
    Build
    • Aluminum
    • Mid-Leg spreader
    • 3x spiked feet with rubber overshoe
    • 75mm Top Casting
