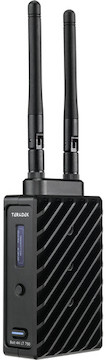

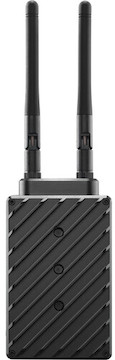

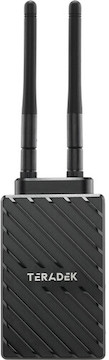

Teradek Bolt 4K LT HDMI Transmitter

$92.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

Teradek Bolt 4K LT HDMI Transmitter
D-Tap to LEMO power cable
AC adapter
USB 2.0 A to Type C cable
Wireless antenna (2)
Hot Shoe to 1/4-20" Adapter

Resources

Quick Start Guide

Manual

Teradek app - iOS

Teradek app - Android

Teradek Bolt 4K LT HDMI Transmitter

The Teradek Bolt 4K LT HDMI Transmitter is an HDMI-only zero-delay wireless transmitter, and is the predecessor to the Bolt 6 LT 750, which is available at a comparable price. Key features include:

Transmit wireless UHD 4K30p video up to 750 feet
HDMI monitoring; Rec. 2020 HDR 10-bit 4:2:2 color gamut
Compatible with Bolt 4K, Bolt 4K LT, and Bolt 6 series devices
Battery plates and batteries not included with this rental

Q & A

Is this transmitter compatible with previous Teradek Bolt Pro or XT models?

This transmitter is only compatible with Teradek Bolt 4K, Bolt 4K LT, and Bolt 6 series devices over the 5 GHz signal spectrum.

Does this rental include battery plates or batteries?

This rental does not include batteries or a way to attach batteries, but we do rent receivers with pass-through Gold Mount or V-Mount plates.

Does this rental include any mounting hardware?

No, this rental doesn’t include any mounting hardware.

Specifications

Brand	Teradek
Environmental	IP Rating None Operating Temperature 32 to 104°F
Format Support	Video Format (HDMI) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 Audio Format 2-Channel 24-Bit 48 kHz Timecode Support Yes

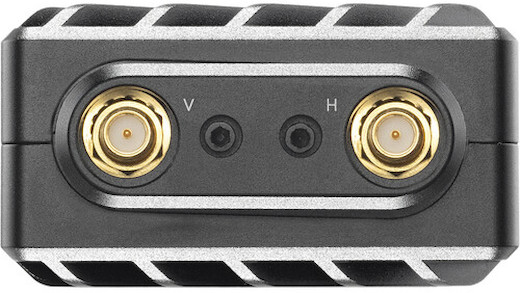

Inputs/Outputs	Antenna Ports 2x RP-SMA Female Video 1x HDMI Type A (HDMI 1.4b) Input 1x HDMI Type A (HDMI 1.4b) Loop Output Embedded Audio HDMI: 2-Channel Audio None Power I/O 1x LEMO 2-Pin (28 VDC) Input Other I/O 1x Micro-USB Input Encryption 256-Bit AES
Item Type	Monitoring
Mfr. Model Number	10-2206
Monitoring Type	Wireless

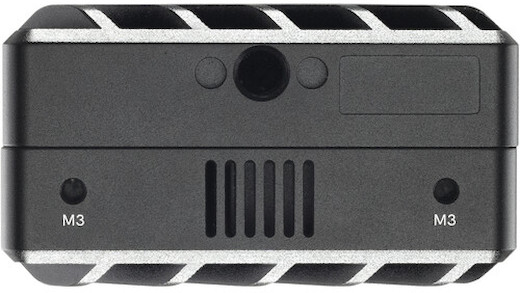

Physical	Mounting 1x 1/4"-20 Female Dimensions (L x W x H) 4.1 × 2.4 × 1.3″ Weight 0.5 lb.
Power	DC Input Power 6 to 28 VDC Battery Type 1x LP-E6, L-Series (Interchangeable Mount) Power Consumption 9 W
System	Bolt 4K
Wireless	Wireless Range 750’ / 228.6m (Line-of-Sight) Channel Bandwidth 40 MHz, 20 MHz Frequency Range (Non-DFS) US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz Frequency Range (DFS) US: 5.27 to 5.67 GHz Latency < 0.01 ms RF Power 19 dBm Wi-Fi Yes

See All

Includes

Teradek Bolt 4K LT HDMI Transmitter
D-Tap to LEMO power cable
AC adapter
USB 2.0 A to Type C cable
Wireless antenna (2)
Hot Shoe to 1/4-20" Adapter

Specifications

Brand	Teradek
Environmental	IP Rating None Operating Temperature 32 to 104°F
Format Support	Video Format (HDMI) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 Audio Format 2-Channel 24-Bit 48 kHz Timecode Support Yes
Inputs/Outputs	Antenna Ports 2x RP-SMA Female Video 1x HDMI Type A (HDMI 1.4b) Input 1x HDMI Type A (HDMI 1.4b) Loop Output Embedded Audio HDMI: 2-Channel Audio None Power I/O 1x LEMO 2-Pin (28 VDC) Input Other I/O 1x Micro-USB Input Encryption 256-Bit AES
Item Type	Monitoring
Mfr. Model Number	10-2206
Monitoring Type	Wireless
Physical	Mounting 1x 1/4"-20 Female Dimensions (L x W x H) 4.1 × 2.4 × 1.3″ Weight 0.5 lb.
Power	DC Input Power 6 to 28 VDC Battery Type 1x LP-E6, L-Series (Interchangeable Mount) Power Consumption 9 W
System	Bolt 4K
Wireless	Wireless Range 750’ / 228.6m (Line-of-Sight) Channel Bandwidth 40 MHz, 20 MHz Frequency Range (Non-DFS) US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz Frequency Range (DFS) US: 5.27 to 5.67 GHz Latency < 0.01 ms RF Power 19 dBm Wi-Fi Yes

See All

Resources

Quick Start Guide

Manual

Teradek app - iOS

Teradek app - Android
