Teradek Bolt 4K MAX 12G-SDI/HDMI Kit (V-Mount)

$860.00
/
7 Day

Rental

Interested in purchasing?

Includes

  • Bolt 4K MAX Tx

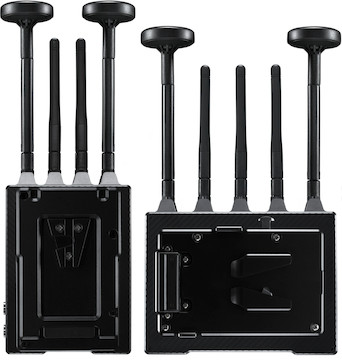

  • Tx V-Mount plates
  • Bolt 4K Max Rx
  • Rx V-Mount plates
  • D-tap to Lemo power cable
  • AC adapter
  • 5/8" to 3/8-16" stand adapter
  • USB 2.0 A to Micro cable
  • 5/8" to 3/8-16" stand adapter
  • (4) 2dBi V antenna
  • (5) H antenna
  • Hardware kit
  • Bolt pairing guide

Teradek Bolt 4K MAX 12G-SDI/HDMI Kit (V-Mount)

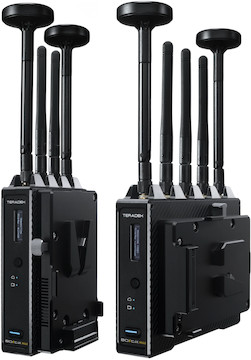

The Teradek Bolt 4K MAX 12G-SDI/HDMI Wireless Kit (V-Mount) is part of a ground-up redesign of the Bolt wireless video transmission system with 4K compatibility and more intuitive app control. Key features include:

  • Transmit encrypted wireless 4K/60p video up to 3000’ line-of-sight

  • 12G-SDI & HDMI 2.0 I/O signals with cross conversion

  • Compatible with Bolt 4K 750, Bolt 4K 1500, & Bolt 4K Max products

  • V-Mount batteries & charger not included

Read More

Q & A

  • Does this rental include any mounting hardware?

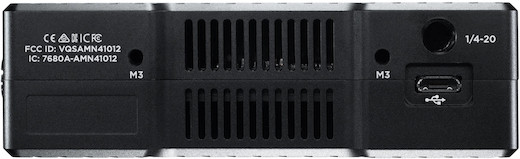

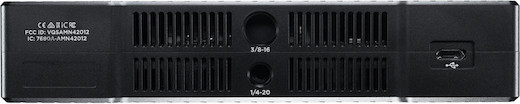

    • We include one 5/8" receiver to 3/8"-16 threaded stud stand adapter. The Rx features 1/4"-20 and 3/8"-16 threaded holes for mounting while the Tx has 1/4"-20 threaded holes and 1/4"-20 bolts for mounting.

  • Does this rental include V-Mount batteries?
    • This rental does not include V-Mount batteries or a charger, but they can be rented separately here.

  • Is this compatible with previous Teradek Bolt Pro or XT models?
    • This receiver is only compatible with Teradek Bolt 4K products like the 750, 1500, and Max.

  • Specifications

    Brand

    Teradek

    Item Type

    Monitoring

    Monitoring Type

    Wireless

    Receiver

    Outputs

    • 12G-SDI (2x)
    • HDMI 2.0 Type A (1x)
    Dimensions
    • 5.47 × 4.41 × 1.06″
    Weight (RX Only)
    • 15.24 oz
    Mount Compatibility
    • ¼-20"
    • M3 (2x)
    Multicast Capable
    • 6 (RX):1 (TX)

    System

    Bolt 4K

    Transmitter

    Inputs

    • 12G-SDI (1x)
    • HDMI 2.0 Type A (1x)
    Output
    • 12G-SDI Loop-out (1x)
    Dimensions
    • 5.2 × 3.58 × 1.06″
    Weight (TX Only)
    • 12.7 oz
    Mount Compatibility
    • ¼-20"
    • M3 (2x)
    Multicast Capable
    • 1 (TX):6 (RX)

    Video Processing

    Color Sampling

    • SDI: YCbCr 4:2:2 10-bit
    • HDMI: RGB 4:4:4 8-bit
    Supported Formats
    • 4Kp: 23.98/24/25/29.97/30/50/59.94/60
    • 1080p: 23.98/24/25/29.97/30/50/59.94/60
    • 1080psf: 23.98/24/25/29.97/30
    • 1080i: 50/59.94/60
    • 720p: 50/59.94/60
    • 480p: 50 576p59.94/60
    • 480i(NTSC)/576i(PAL)

    Wireless

    Latency

    • <0.001 sec
    Range
    • Up to 3000 ft line of sight (under ideal conditions)
    Non-DFS Frequencies
    • 5.19 ~ 5.23 GHz
    • 5.755 ~ 5.795 GHz (US only)
    DFS Frequencies
    • 5.27 ~ 5.67 GHz

    Includes

    • Bolt 4K MAX Tx
    • Tx V-Mount plates
    • Bolt 4K Max Rx
    • Rx V-Mount plates
    • D-tap to Lemo power cable
    • AC adapter
    • 5/8" to 3/8-16" stand adapter
    • USB 2.0 A to Micro cable
    • 5/8" to 3/8-16" stand adapter
    • (4) 2dBi V antenna
    • (5) H antenna
    • Hardware kit
    • Bolt pairing guide

    Specifications

    Brand

    Teradek

    Item Type

    Monitoring

    Monitoring Type

    Wireless

    Receiver

    Outputs

    • 12G-SDI (2x)
    • HDMI 2.0 Type A (1x)
    Dimensions
    • 5.47 × 4.41 × 1.06″
    Weight (RX Only)
    • 15.24 oz
    Mount Compatibility
    • ¼-20"
    • M3 (2x)
    Multicast Capable
    • 6 (RX):1 (TX)

    System

    Bolt 4K

    Transmitter

    Inputs

    • 12G-SDI (1x)
    • HDMI 2.0 Type A (1x)
    Output
    • 12G-SDI Loop-out (1x)
    Dimensions
    • 5.2 × 3.58 × 1.06″
    Weight (TX Only)
    • 12.7 oz
    Mount Compatibility
    • ¼-20"
    • M3 (2x)
    Multicast Capable
    • 1 (TX):6 (RX)

    Video Processing

    Color Sampling

    • SDI: YCbCr 4:2:2 10-bit
    • HDMI: RGB 4:4:4 8-bit
    Supported Formats
    • 4Kp: 23.98/24/25/29.97/30/50/59.94/60
    • 1080p: 23.98/24/25/29.97/30/50/59.94/60
    • 1080psf: 23.98/24/25/29.97/30
    • 1080i: 50/59.94/60
    • 720p: 50/59.94/60
    • 480p: 50 576p59.94/60
    • 480i(NTSC)/576i(PAL)

    Wireless

    Latency

    • <0.001 sec
    Range
    • Up to 3000 ft line of sight (under ideal conditions)
    Non-DFS Frequencies
    • 5.19 ~ 5.23 GHz
    • 5.755 ~ 5.795 GHz (US only)
    DFS Frequencies
    • 5.27 ~ 5.67 GHz
