Teradek Bolt 1000 XT 3G-SDI/HDMI Dual V-Mount Kit

Includes

  • Bolt 1000 XT 3G-SDI/HDMI TX
  • NP-F/LP-E6 bidirectional plate for TX
  • Bolt 1000 XT 3G-SDI/HDMI RX
  • M/F V-Mount plates for RX
  • D-Tap to Lemo power cable
  • AC adapter
  • (7) Wireless antennas – 2dBi
  • TX mounting bracket
  • (2) USB 2.0 A Male to Mini-B cable
  • 5/8" to 3/8-16" stand adapter

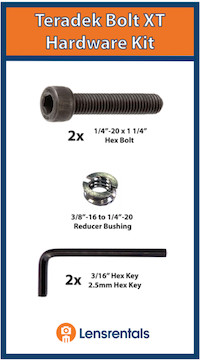

  • Hardware kit
  • Bolt pairing guide

Teradek Bolt 1000 XT 3G-SDI/HDMI Dual V-Mount Kit

While this Teradek kit is no longer available for rent, here’s a link to our current selections.

  • Transmit wireless, encrypted 1080/60p video without delay up to 1000-feet line-of-sight

  • Spectrum analyzer with channel selection

  • 1:1 kit with multiple powering options

  • Basic mounting hardware included

Read More

Q & A

  • What's the best way to pair this kit?
    • While pairing in the field without a computer is an option, we highly recommend using the Bolt Manager app and a laptop, at least for initial setup. Software pairing should be the first step, with field pairing only being used as necessary to troubleshoot dropouts or interference on location. We include USB-A cables, so you’ll just need a computer with enough USB-A ports to accommodate the devices. If you’re pairing multiple receivers to a single transmitter, a USB hub might be helpful. Instructions for both software pairing and field pairing are included in the rental.

  • Does this rental include batteries or chargers?
    • This rental does not include batteries or chargers but they are available as separate rental items. The receiver is compatible with standard v-mount brick batteries. The transmitter features a bi-directional plate that is compatible with your choice of Sony L-series or Canon LP-E6N battery.

    • If you have any questions regarding battery compatibility, contact us and a tech will be happy to discuss the best options for your shoot.

  • Does this rental include any mounting hardware?
    • The Bolt 1000 XTs feature several versatile mounting options including 1/4-20 threads on the transmitter and 3/8-16 ARRI standard mounts on the receiver. The receiver also features an integrated nato rail. If you need the nato lock and rail clamp, they are available by request.

  • Specifications

    Brand

    Teradek

    Item Type

    Monitoring

    Monitoring Type

    Wireless

    Receiver

    Outputs

    • HD/3G-SDI (2x)
    • HDMI Type A (1x)
    Dimensions
    • 5.4” x 3.5” x .95”
    Weight (RX Only)
    • 13.3 oz

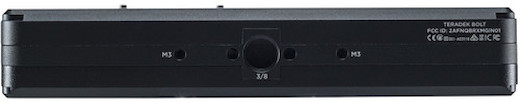

    Mount Compatibility
    • NATO rail
    • 3/8"-16
    • M3 (2x)
    Multicast Capable
    • 4 (RX):1 (TX)

    Transmitter

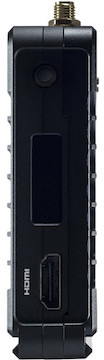

    Inputs

    • HD/3G-SDI (1x)
    • HDMI Type A (1x)
    Output
    • HD/3G-SDI Loop-out (1x)
    Dimensions
    • 0.95” x 2.6” x 4.47”
    Weight (TX Only)
    • 8oz
    Mount Compatibility
    • ¼-20"
    • 3/8-16"
    • M3 (2x)
    Multicast Capable
    • 1 (TX):4 (RX)

    Video Processing

    Color Sampling

    • SDI: YCbCr 4:2:2 8-bit/10-bit (without format conversion)
    • HDMI: RGB 4:4:4 8-bit
    Supported Formats
    • 1080p: 23.98/24/25/29.97/30/50/59.94/60
    • 1080psf: 23.98/24
    • 1080i: 50/59.94/60
    • 720p: 50/59.94/60
    LUT Support
    • Alexa Log C – 709
    • BMCC Film – 709
    • Log C – 709
    • SGamut – 709
    Lut Display Options
    • Full Screen
    • Split Screen

    Wireless

    Latency

    • <0.001 sec
    Range
    • Up to 1000’ line of sight (under ideal conditions)
    Non-DFS Frequencies
    • 5.19 ~ 5.23 GHz
    • 5.755 ~ 5.795 GHz (US only)
    DFS Frequencies
    • US: 5.27 ~ 5.55 GHz and 5.67 GHz
    • EU & JP: 5.27 ~ 5.67 GHz

    Includes

    • Bolt 1000 XT 3G-SDI/HDMI TX
    • NP-F/LP-E6 bidirectional plate for TX
    • Bolt 1000 XT 3G-SDI/HDMI RX
    • M/F V-Mount plates for RX
    • D-Tap to Lemo power cable
    • AC adapter
    • (7) Wireless antennas – 2dBi
    • TX mounting bracket
    • (2) USB 2.0 A Male to Mini-B cable
    • 5/8" to 3/8-16" stand adapter
    • Hardware kit
    • Bolt pairing guide

    Specifications

    Brand

    Teradek

    Item Type

    Monitoring

    Monitoring Type

    Wireless

    Receiver

    Outputs

    • HD/3G-SDI (2x)
    • HDMI Type A (1x)
    Dimensions
    • 5.4” x 3.5” x .95”
    Weight (RX Only)
    • 13.3 oz
    Mount Compatibility
    • NATO rail
    • 3/8"-16
    • M3 (2x)
    Multicast Capable
    • 4 (RX):1 (TX)

    Transmitter

    Inputs

    • HD/3G-SDI (1x)
    • HDMI Type A (1x)
    Output
    • HD/3G-SDI Loop-out (1x)
    Dimensions
    • 0.95” x 2.6” x 4.47”
    Weight (TX Only)
    • 8oz
    Mount Compatibility
    • ¼-20"
    • 3/8-16"
    • M3 (2x)
    Multicast Capable
    • 1 (TX):4 (RX)

    Video Processing

    Color Sampling

    • SDI: YCbCr 4:2:2 8-bit/10-bit (without format conversion)
    • HDMI: RGB 4:4:4 8-bit
    Supported Formats
    • 1080p: 23.98/24/25/29.97/30/50/59.94/60
    • 1080psf: 23.98/24
    • 1080i: 50/59.94/60
    • 720p: 50/59.94/60
    LUT Support
    • Alexa Log C – 709
    • BMCC Film – 709
    • Log C – 709
    • SGamut – 709
    Lut Display Options
    • Full Screen
    • Split Screen

    Wireless

    Latency

    • <0.001 sec
    Range
    • Up to 1000’ line of sight (under ideal conditions)
    Non-DFS Frequencies
    • 5.19 ~ 5.23 GHz
    • 5.755 ~ 5.795 GHz (US only)
    DFS Frequencies
    • US: 5.27 ~ 5.55 GHz and 5.67 GHz
    • EU & JP: 5.27 ~ 5.67 GHz
