Teradek Bolt Pro 1000 3G-SDI/HDMI Dual V-Mount Receiver

$218.00
/
7 Day

Rental

Interested in purchasing?

Learn More

Includes

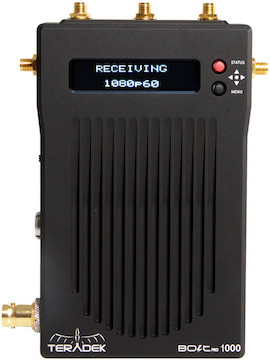

  • Bolt Pro 1000 3G-SDI/HDMI Receiver

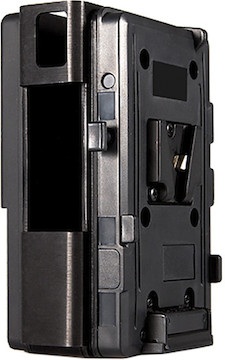

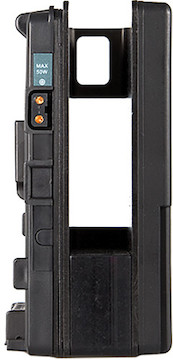

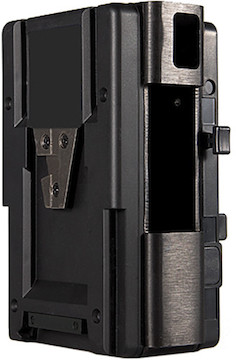

  • Dual V-Mount Plate for Receiver
  • D-Tap to Lemo power cable
  • AC adapter
  • (5) Wireless antennas
  • 5/8" to 1/4-20" stand adapter
  • Hard case

Resources

  • User Guide
  • 081422341809
    703221662396295303057981225479330521

    Teradek Bolt Pro 1000 3G-SDI/HDMI Dual V-Mount Receiver

    The Teradek Bolt Pro 1000 3G-SDI/HDMI Dual V-Mount Receiver is an add-on unit for the Teradek Bolt Pro 1000 3G-SDI/HDMI Dual V-Mount Kit. Key features include:

    • Add-on Receiver

    • Lossless video up to 1000’ with no delay

    • Built-in HDMI to SDI converter

    • V-Mount batteries not included!

    Read More

    LR's Take

    In General


    Wireless transmissions are always risky but the Teradek Bolt 1000 is a solid, utilitarian tool when hardwiring isn’t an option. The spectrum analyzer, onboard interface, and clever integration of p...

    Read More

    Q & A

  • What's the best way to pair this receiver?
    • While pairing in the field without a computer is an option, we highly recommend using the Bolt Manager app and a laptop, at least for initial setup. Software pairing should be the first step, with field pairing only being used as necessary to troubleshoot dropouts or interference on location. We include USB-A cables, so you’ll just need a computer with enough USB-A ports to accommodate the devices. If you’re pairing multiple receivers to a single transmitter, a USB hub might be helpful. Instructions for both software pairing and field pairing are included in the rental.

  • Are V-Mount batteries and chargers included?
    • Since we have multiple V-Mount battery and charger options, we’ve elected to not include any with the rental. However, you can find our available options in the Recommended section on the left-hand side of the page.

    • We also include one AC adapter and one D-Tap to Lemo Power Cable with this rental.

  • Does the Bolt Pro 1000 really work up to 1000ft?
    • The 1000ft range is a theoretical maximum distance in absolutely perfect conditions. Actual performance varies greatly depending on the location. Tests at our Memphis headquarters usually get about 150ft indoors and 300ft outdoors.

  • Are any video cables included?
    • With there being so many different variations of HDMI and SDI cables you could possibly need depending on your rig, we’ve elected to not bundle any video cables with the rental.

    • You can find our selection of HDMI and SDI cables here, as well as the Recommended section on the left-hand side of this page.

  • Specifications

    Brand

    Teradek

    Inputs/Outputs

    Inputs

    • 1x HD/3G-SDI
    • 1x HDMI Type A
    Outputs
    • None

    Item Type

    Recorder and Monitoring

    Monitoring Type

    Wireless

    Physical

    Dimensions

    • 5.5” x 3.5” x 1.0”
    Weight
    • 13.3oz
    Accessory Mount
    • ¼-20 female mount compatible

    Video Processing

    Supported Resolutions

    • 1080p: 23.98/24/25/29.97/30/50/59.94/60
    • 1080psf: 23.98/24/25/29.97/30
    • 1080i: 50/59.94/60
    • 720p: 50/59.94/60
    Color Sampling
    • SDI: 4:2:2 10-bit
    • HDMI: 4:4:4 8-bit
    LUT Support
    • Yes (Bolt Manager required)

    Wireless

    Latency

    • <0.001 sec
    Range
    • Up to 1000’ line of sight (only under ideal conditions)
    Multicast Capable
    • Yes
    • 1 (TX):4 (RX)
    Frequencies
    • Non-DFS
      • 5.19 ~ 5.23 GHz
      • 5.755 ~ 5.795 GHz (US only)
    • DFS
      • US: 5.27 ~ 5.55 GHz and 5.67 GHz
      • EU & JP: 5.27 ~ 5.67 GHz

    Includes

    • Bolt Pro 1000 3G-SDI/HDMI Receiver
    • Dual V-Mount Plate for Receiver
    • D-Tap to Lemo power cable
    • AC adapter
    • (5) Wireless antennas
    • 5/8" to 1/4-20" stand adapter
    • Hard case

    Specifications

    Brand

    Teradek

    Inputs/Outputs

    Inputs

    • 1x HD/3G-SDI
    • 1x HDMI Type A
    Outputs
    • None

    Item Type

    Recorder and Monitoring

    Monitoring Type

    Wireless

    Physical

    Dimensions

    • 5.5” x 3.5” x 1.0”
    Weight
    • 13.3oz
    Accessory Mount
    • ¼-20 female mount compatible

    Video Processing

    Supported Resolutions

    • 1080p: 23.98/24/25/29.97/30/50/59.94/60
    • 1080psf: 23.98/24/25/29.97/30
    • 1080i: 50/59.94/60
    • 720p: 50/59.94/60
    Color Sampling
    • SDI: 4:2:2 10-bit
    • HDMI: 4:4:4 8-bit
    LUT Support
    • Yes (Bolt Manager required)

    Wireless

    Latency

    • <0.001 sec
    Range
    • Up to 1000’ line of sight (only under ideal conditions)
    Multicast Capable
    • Yes
    • 1 (TX):4 (RX)
    Frequencies
    • Non-DFS
      • 5.19 ~ 5.23 GHz
      • 5.755 ~ 5.795 GHz (US only)
    • DFS
      • US: 5.27 ~ 5.55 GHz and 5.67 GHz
      • EU & JP: 5.27 ~ 5.67 GHz
