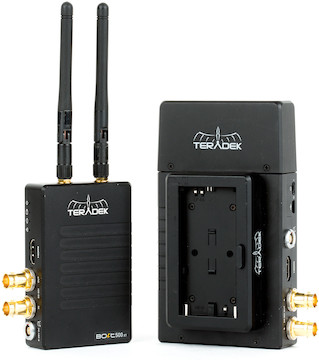

Teradek Bolt 500 XT 3G-SDI/HDMI Wireless Kit

Includes

Not Included

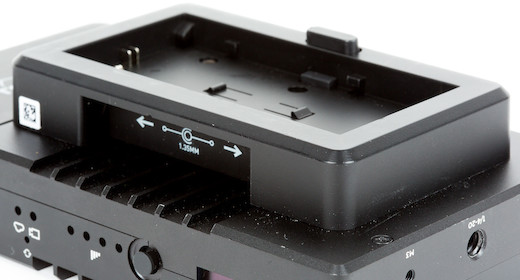

Sony NP-F or Canon LP-E6N Batteries

Resources

  • Manual
  • Teradek Bolt 500 XT 3G-SDI/HDMI Wireless Kit

    While this Teradek kit is no longer available for rent, here’s a link to our current selections.

    • 1080/60p video up to 500-feet line-of-sight

    • Spectrum analyzer for signal strength monitoring

    • 1:1 kit with multiple powering options

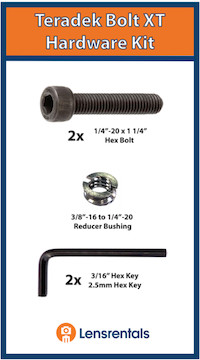

    • Basic mounting hardware included

    Read More

    Q & A

  • Does this rental include a battery?
  • What's the best way to pair this kit?
    • While pairing in the field without a computer is an option, we highly recommend using the Bolt Manager app and a laptop, at least for initial setup. Software pairing should be the first step, with field pairing only being used as necessary to troubleshoot dropouts or interference on location. We include USB-A cables, so you’ll just need a computer with enough USB-A ports to accommodate the devices. If you’re pairing multiple receivers to a single transmitter, a USB hub might be helpful. Instructions for both software pairing and field pairing are included in the rental.

  • Does this rental include HDMI or SDI cables?
    • This rental doesn’t include HDMI or SDI cables. If you need them, we offer HDMI cables and SDI cables as separate rental items.

  • Does the Bolt 500 XT really work at up to 500 feet?
    • The 500-foot range is a theoretical maximum distance in absolutely perfect conditions. Actual performance varies greatly depending on the location. Tests at our Memphis headquarters usually get about 50 feet indoors and 100 feet outdoors.

  • Specifications

    Brand

    Teradek

    Item Type

    Monitoring

    Monitoring Type

    Wireless

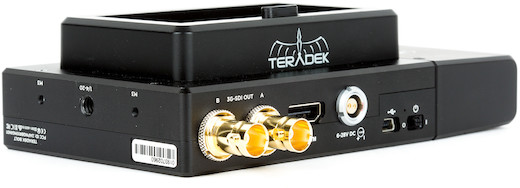

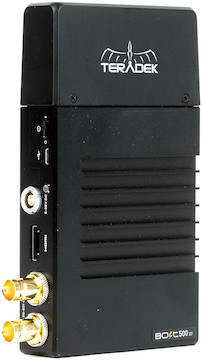

    Receiver

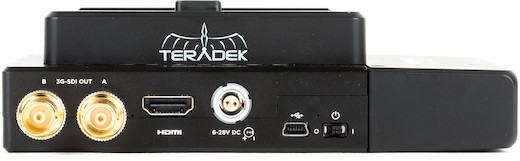

    Outputs

    • 2x HD/3G-SDI
    • 1x HDMI Type A
    Dimensions
    • 6” x 3.4” x 1”
    Weight (RX Only)
    • 10.5 oz
    Mount Compatibility
    • ¼-20
    Multicast Capable
    • 4 (RX):1 (TX)

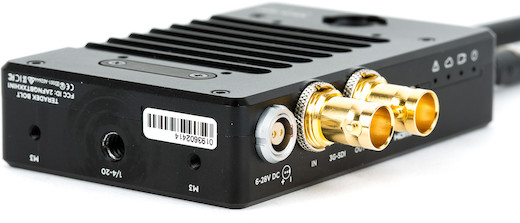

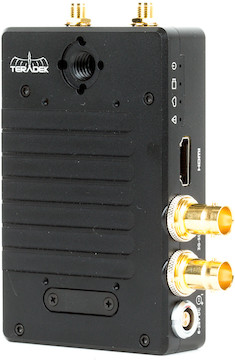

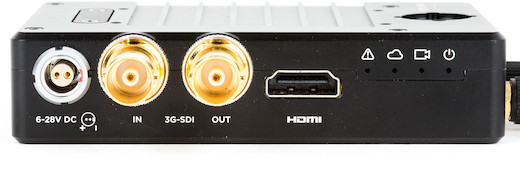

    Transmitter

    Inputs

    • 1x HD/3G-SDI
    • 1x HDMI Type A
    Output
    • 1x HD/3G-SDI Loop-out
    Dimensions
    • 0.95” x 2.6” x 4.47”
    Weight
    • 8oz
    Mount Compatibility
    • ¼-20
    • ARRI 3/8"
    Multicast Capable
    • 1 (TX):4 (RX)

    Video Processing

    Color Sampling

    • SDI: YCbCr 4:2:2 8-bit (with format conversion
    • HDMI: RGB 4:4:4 8-bit
    Supported Formats
    • 1080p: 23.98/24/25/29.97/30/50/59.94/60
    • 1080psf: 23.98/24/25/29.97/30
    • 1080i: 50/59.94/60
    • 720p: 50/59.94/60

    Wireless

    Latency

    • <0.001 sec
    Range
    • Up to 500’ line of sight (under ideal conditions)
    Non-DFS Frequencies
    • 5.19 ~ 5.23 GHz
    • 5.755 ~ 5.795 GHz (US only)
    DFS Frequencies
    • US: 5.27 ~ 5.55 GHz and 5.67 GHz
    • EU & JP: 5.27 ~ 5.67 GHz
    Channel Bandwidth
    • 12x 40MHz
