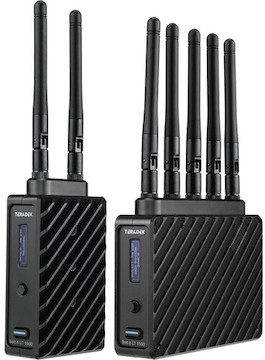

Teradek Bolt 6 LT 1500 3G-SDI/HDMI Kit (Gold Mount)

$364.00

7 Day

Rental

Available Monday

Renting this item will adjust your rental dates.

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

Teradek Bolt 6 LT 1500 Transmitter
Gold Mount Receiver
USB to Micro B Cable
2-pin LEMO to D-Tap Cable
AC Adapter
Hot Shoe to 1/4-20"
5/8 Receiver w/ 1/4-20 Thread
Gold Mount Plate (Female)
Gold Mount Plate (Male)
(7) Antennas
(3) Mushroom Antennas

Resources

Manual

Teradek Bolt 6 LT 1500 3G-SDI/HDMI Kit (Gold Mount)

The Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Kit (Gold Mount) consists of a wireless transmitter and receiver that can wirelessly receive up to 4K30 video with an included Gold Mount battery plate for fuel. Key features include:

HDMI and 3G-SDI inputs and outputs
Powered by Gold Mount
Transmit up to 4K30 video
Compatible with Bolt 4K LT TX/RX units

Q & A

Does this rental include Gold Mount batteries?

Nah, just the power cables included with the kit. We have a lengthy list of Gold Mount power located in the recommended section of your screen!

Can I use previous Bolt 4K devices with this kit?

Absolutely! This kit is cross-compatible with all previous Bolt 4K devices & Bolt 6 devices.

Specifications

Brand	Teradek
Environmental	Transmitter IP Rating None Operating Temperature 32 to 72°F Receiver IP Rating None Operating Temperature 32 to 72°F
Format Support	Transmitter Audio Format 2-Channel 24-Bit 48 kHz Timecode Support Yes Receiver Audio Format 2-Channel 24-Bit 48 kHz Timecode Support Yes
Frequency Range	Transmitter Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz Receiver Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz
General	Transmitter Material of Construction Aluminum Polycarbonate Dimensions 4.1 × 2.4 × 1.3″ Weight 7.3 oz Receiver Material of Construction Aluminum Polycarbonate Dimensions 4.8 × 3.7 × 1.1″ Excluding Battery Plate Weight 10.3 oz Excluding Battery Plate
Inputs/Outputs	Transmitter Antenna I/O 2 x RP-SMA Female Video I/O 1 x HDMI 1.4b Input 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Loop Output Embedded Audio HDMI: 2-Channel SDI: 2-Channel Audio I/O None Power I/O 1 x LEMO 2-Pin (28 VDC) Input Other I/O 1 x Micro-USB Input Encryption 256-Bit AES Receiver Antenna I/O 5 x RP-SMA Female Video I/O 1 x HDMI 1.4b Output 1 x BNC (3G-SDI) Output Embedded Audio HDMI: 2-Channel SDI: 2-Channel Audio I/O None Power I/O 1 x LEMO 2-Pin (28 VDC) Input Other I/O 1 x Micro-USB Input Encryption 256-Bit AES
Item Type	Monitoring & Recording
Monitoring & Recording Type	Transmitter, Receiver, and Kit
Mounting	Transmitter 1 × 1/4"-20 Female Receiver 1 × 1/4"-20 Female 1 × 3/8"-16 Female
Power	Transmitter DC Input Power 6 to 28 VDC Power Consumption 9 W Receiver DC Input Power 6 to 28 VDC Battery Type 1 x Gold Mount (Interchangeable Mount) Power Consumption 11 W
Video Format	Transmitter HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 Receiver HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94
Wireless	Transmitter Wireless Range 1500’ Channel Bandwidth 40 MHz, 20 MHz Latency <0.01 ms RF Power 23 dBm Wi-Fi None Bluetooth Yes Receiver Wireless Range 1500’ Channel Bandwidth 40 MHz, 20 MHz Latency <0.01 ms RF Power 21 dBm Wi-Fi None Bluetooth Yes

See All

Includes

Teradek Bolt 6 LT 1500 Transmitter
Gold Mount Receiver
USB to Micro B Cable
2-pin LEMO to D-Tap Cable
AC Adapter
Hot Shoe to 1/4-20"
5/8 Receiver w/ 1/4-20 Thread
Gold Mount Plate (Female)
Gold Mount Plate (Male)
(7) Antennas
(3) Mushroom Antennas

Specifications

Brand	Teradek
Environmental	Transmitter IP Rating None Operating Temperature 32 to 72°F Receiver IP Rating None Operating Temperature 32 to 72°F
Format Support	Transmitter Audio Format 2-Channel 24-Bit 48 kHz Timecode Support Yes Receiver Audio Format 2-Channel 24-Bit 48 kHz Timecode Support Yes
Frequency Range	Transmitter Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz Receiver Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz
General	Transmitter Material of Construction Aluminum Polycarbonate Dimensions 4.1 × 2.4 × 1.3″ Weight 7.3 oz Receiver Material of Construction Aluminum Polycarbonate Dimensions 4.8 × 3.7 × 1.1″ Excluding Battery Plate Weight 10.3 oz Excluding Battery Plate
Inputs/Outputs	Transmitter Antenna I/O 2 x RP-SMA Female Video I/O 1 x HDMI 1.4b Input 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Loop Output Embedded Audio HDMI: 2-Channel SDI: 2-Channel Audio I/O None Power I/O 1 x LEMO 2-Pin (28 VDC) Input Other I/O 1 x Micro-USB Input Encryption 256-Bit AES Receiver Antenna I/O 5 x RP-SMA Female Video I/O 1 x HDMI 1.4b Output 1 x BNC (3G-SDI) Output Embedded Audio HDMI: 2-Channel SDI: 2-Channel Audio I/O None Power I/O 1 x LEMO 2-Pin (28 VDC) Input Other I/O 1 x Micro-USB Input Encryption 256-Bit AES
Item Type	Monitoring & Recording
Monitoring & Recording Type	Transmitter, Receiver, and Kit
Mounting	Transmitter 1 × 1/4"-20 Female Receiver 1 × 1/4"-20 Female 1 × 3/8"-16 Female
Power	Transmitter DC Input Power 6 to 28 VDC Power Consumption 9 W Receiver DC Input Power 6 to 28 VDC Battery Type 1 x Gold Mount (Interchangeable Mount) Power Consumption 11 W
Video Format	Transmitter HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 Receiver HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94
Wireless	Transmitter Wireless Range 1500’ Channel Bandwidth 40 MHz, 20 MHz Latency <0.01 ms RF Power 23 dBm Wi-Fi None Bluetooth Yes Receiver Wireless Range 1500’ Channel Bandwidth 40 MHz, 20 MHz Latency <0.01 ms RF Power 21 dBm Wi-Fi None Bluetooth Yes
