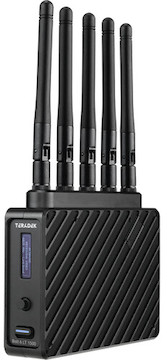

Teradek Bolt 6 LT 1500 3G-SDI/HDMI Receiver (Gold Mount)

$219.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

Teradek Bolt 6 LT 1500 Receiver (Gold Mount)
(5) Antennas
(2) Mushroom antennas
5/8 Receiver w/ 1/4-20 Threading
Gold Mount Plate (Female)
Gold Mount Plate (Male)
AC Adapter
2-pin LEMO D-Tap Cable
USB 2.0 A Male to Micro B

Resources

Manual

Teradek Bolt 6 LT 1500 3G-SDI/HDMI Receiver (Gold Mount)

The Teradek Bolt 6 LT 1500 3G-SDI/HDMI Receiver (Gold Mount) enables you to receive 4K30 HD video from up to 1500 feet away and includes a Gold Mount battery plate for fuel. Key features include:

Supports new 6 GHz frequency band
SDI & HDMI outputs with zero delay
Receive 4K30 video
Gold Mount battery plate

Q & A

Is there a V-Mount version of this receiver?

Absolutely! You can find it here.

Are Gold Mount batteries included in this rental?

Nah, but we have a huge selection of GM batteries available for rent. Check out the recommended section of your screen for options!

Is this receiver compatible with other Bolt series?

Yep! It’s compatible with previous Bolt 6 and Bolt 4K devices!

Specifications

Brand	Teradek
Environmental	IP Rating None Operating Temperature 32 to 72°F
Format Support	Audio Format 2-Channel 24-Bit 48 kHz Timecode Support Yes
Frequency Range	Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz
General	Material of Construction Aluminum Polycarbonate Dimensions 4.8 × 3.7 × 1.1″ Excluding Battery Plate Weight 10.3 oz
Inputs/Outputs	Antenna I/O 5 x RP-SMA Female Video I/O 1 x HDMI 1.4b Output 1 x BNC (3G-SDI) Output Embedded Audio HDMI: 2-Channel SDI: 2-Channel Audio I/O None Power I/O 1 x LEMO 2-Pin (28 VDC) Input Other I/O 1 x Micro-USB Input Encryption 256-Bit AES
Item Type	Monitoring & Recording
Monitoring & Recording Type	Receiver
Mounting	1 × 1/4"-20 Female 1 × 3/8"-16 Female
Power	DC Input Power 6 to 28 VDC Battery Type 1 x Gold Mount (Interchangeable Mount) Power Consumption 11 W
Video Format	HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94
Wireless	Wireless Range 1500’ (Line-of-Sight) Channel Bandwidth 40 MHz, 20 MHz Latency <0.01 ms RF Power 21 dBm Wi-Fi None Bluetooth Yes

See All

Includes

Teradek Bolt 6 LT 1500 Receiver (Gold Mount)
(5) Antennas
(2) Mushroom antennas
5/8 Receiver w/ 1/4-20 Threading
Gold Mount Plate (Female)
Gold Mount Plate (Male)
AC Adapter
2-pin LEMO D-Tap Cable
USB 2.0 A Male to Micro B

Specifications

Brand	Teradek
Environmental	IP Rating None Operating Temperature 32 to 72°F
Format Support	Audio Format 2-Channel 24-Bit 48 kHz Timecode Support Yes
Frequency Range	Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz
General	Material of Construction Aluminum Polycarbonate Dimensions 4.8 × 3.7 × 1.1″ Excluding Battery Plate Weight 10.3 oz
Inputs/Outputs	Antenna I/O 5 x RP-SMA Female Video I/O 1 x HDMI 1.4b Output 1 x BNC (3G-SDI) Output Embedded Audio HDMI: 2-Channel SDI: 2-Channel Audio I/O None Power I/O 1 x LEMO 2-Pin (28 VDC) Input Other I/O 1 x Micro-USB Input Encryption 256-Bit AES
Item Type	Monitoring & Recording
Monitoring & Recording Type	Receiver
Mounting	1 × 1/4"-20 Female 1 × 3/8"-16 Female
Power	DC Input Power 6 to 28 VDC Battery Type 1 x Gold Mount (Interchangeable Mount) Power Consumption 11 W
Video Format	HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94
Wireless	Wireless Range 1500’ (Line-of-Sight) Channel Bandwidth 40 MHz, 20 MHz Latency <0.01 ms RF Power 21 dBm Wi-Fi None Bluetooth Yes

See All

Resources

Manual

Reviews

See Reviews
