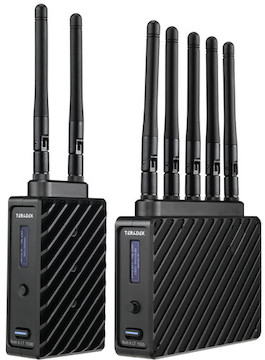

Radio…Live Transmission… With the Bolt 6 LT 1500 3G-SDI/HDMI Transmitter, you can receive lossless UHD 4K30 4K video from 1500 feet away, and transmit up to six receivers all at the same time. This transmitter contains the same form factor as its predecessor, the Teradek Bolt 4K LT, but stands out with its improved metadata, range, and compatibility. All Bolt 6 and Bolt 4K devices are cross-compatible with this unit, leaving your options for receivers pretty broad!

Zero Delay Unit. Although this transmitter offers zero-delay frequencies using a Bolt 4K device over its 5 GHz band, you need a Bolt 6 device to use the new 6 GHz band. Additionally, this unit offers built-in AES-256 encryption to protect your video from prying eyes, supports the transmission of timecode and start/stop triggers from the camera, and provides noise rejection and improved long-range mode to keep your video clean no matter how many devices are using the wireless spectrum.

Design & Additional Features. This unit is crafted from aluminum, making it a small and lightweight option for transmission. Need to mount it? It’s simple. A 1/4"-20 mounting thread is available to mount your transmitter on a variety of cameras, cages, or rigs. The Bolt Manager software and Bolt app for iOS and Android are easily connected via Bluetooth, and provides a spectrum analyzer, channel selection tools, and remote configuration.

Receiver Kit. The Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Receiver receives up to UHD 4K30 video with 10-bit HDR, and features improved metadata, range, and compatibility over its predecessors. This receiver is compatible with all Bolt 6 transmitters using the newly available 6 GHz frequency band and with Bolt 4K transmitter using the 5 GHz signal spectrum, both of which can simultaneously transmit up to six receivers from up to 1500 feet away.

Inputs, Outputs, & Encryption. This unit can output SDI and HDMI with cross conversion of the two from a transmitter. Dual SDI outputs on the receiver provide more options for viewing the transmitted image. The built-in AES-256 encryption and RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 LT system also supports the transmission of time code and start/stop triggers. Additionally included is improved “long range” mode, SDI Eye Pattern Tool to check SDI cable integrity, and a 2-pin DC input for fuel.

Designed With You In Mind. This receiver has a lightweight, slim, aluminum & polycarbonate chassis and features a bright OLED display. Need to mount it? No worries, 1/4"-20 and M3 mounting threads are included to mount your receiver on a variety of monitors or rigs. This unit allows you to use a wireless iOS/Android app via Bluetooth and features a spectrum analyzer and remote configuration.

V-Mount Fuel. This unit comes complete with a V-Mount battery plate, enabling power to the receiver in a power demanding environments. A 2-pin DC input is also included for fuel needs.
