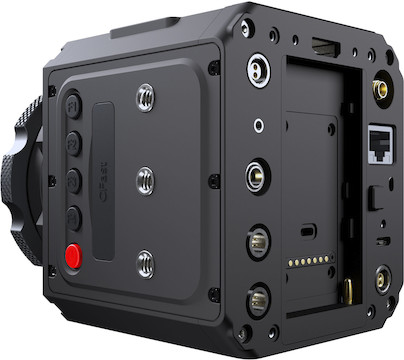

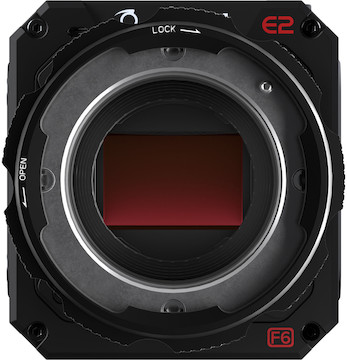

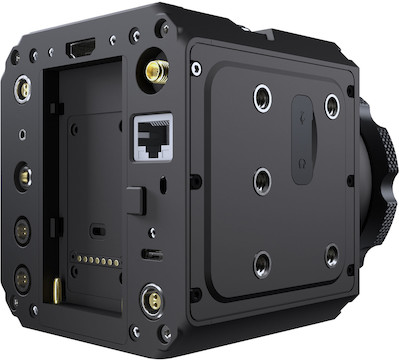

Z CAM E2-F6 Full-Frame 6K Cinema Camera (PL)

$185.00

7 Day

Rental

Available 09/16/24

Renting this item will adjust your rental dates.

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

E2-F6
PL mount
eND module cover
2-Pin LEMO d-tap power cable
D-Tap to 2.5mm barrel adapter
DV-F590 battery
AC-VQ1051D charger
Polarized cable
RP-SMA antenna

Resources

Manual

Z Camera App (Android)

Z Camera App (iOS)

Z CAM E2-F6 Full-Frame 6K Cinema Camera (PL)

The Z CAM E2-F6 Full-Frame 6K Cinema Camera (PL) is an ultra-compact full-frame camera capable of ZRAW and HEVC recording. It builds on the ergonomics and features of the previous Z CAM E2 Camera. Key features include:

37.09 × 24.75 mm, full-frame, CMOS sensor with 15-stop dynamic range
Records in 12-bit ZRAW at DCI 4K & 10-bit H.265 at up to 6244 × 4168p to CFast 2.0 media
PL mount for compatibility with most PL-mount cinema lenses
Powered by common Sony L-series (NP-F) batteries

Q & A

How do I access the web remote?

Once you’ve successfully connected to the Z Cam, launch a web browser and enter the following into the URL: http://10.98.33.1/www/index.html

What is the Z Cam’s default password?

The default password is 12345678.

Specifications

Brand	Z Cam
Camcorder Type	Cinema
Camera Type	Camcorder
Dimensions	3.6″ × 3.9″ × 4.8″
Imaging	Sensor Type: Full Frame CMOS Size: 37.09 × 24.725 Effective Pixels 26 MP Maximum Resolution 6064 × 4040 (Open Gate) Bit Depth 12-bit (ZRAW) 10-bit 4:2:0 (H.265) 8-bit 4:2:0 (H.264) Dynamic Range Up to 15 stops ISO Dual Native 400/2500
Inputs/Outputs	Audio Input 1/8" (3.5mm) stereo Audio Output 1/8" (3.5mm) stereo Video Output HDMI Type A Additional I/O USB Type C 2.5mm LANC RJ45 LAN DB-9 (RS-232) Wireless 2.4 GHz WiFi
Item Type	Camera
Mfr. Model Number	E2-F6, EM102
Power Supply	Input DC 6.8V ~ 16.8V (2-pin LEMO socket), with LEMO connector Output DC 12V (2-pin LEMO socket) Battery Compatibility Sony NP-F series compatible, 6.8V ~ 8.4V
Recording	Format Video: MOV, MP4 Audio: AAC, PCM Encoder ZRAW* / H.265 Resolutions & Frame Rate 6064×4040 @30fps 6064×3196 @48fps 6064×2560 @60fps 5760×3240 @48fps 5376×4032 @30fps 4848×4040 @30fps 4096×2160 @72fps 4096×1728 @120fps 3840×2160 @72fps 1920×1080 @120fps Media CFast 2.0 Bit Rate 300 Mbps max for H.265 & H.264 1.2 Gbps for ZRAW File System exFAT
Weight	2.4 lbs.
Wireless	5G, 802.11n with external antenna port

See All

Includes

E2-F6
PL mount
eND module cover
2-Pin LEMO d-tap power cable
D-Tap to 2.5mm barrel adapter
DV-F590 battery
AC-VQ1051D charger
Polarized cable
RP-SMA antenna

Specifications

Brand	Z Cam
Camcorder Type	Cinema
Camera Type	Camcorder
Dimensions	3.6″ × 3.9″ × 4.8″
Imaging	Sensor Type: Full Frame CMOS Size: 37.09 × 24.725 Effective Pixels 26 MP Maximum Resolution 6064 × 4040 (Open Gate) Bit Depth 12-bit (ZRAW) 10-bit 4:2:0 (H.265) 8-bit 4:2:0 (H.264) Dynamic Range Up to 15 stops ISO Dual Native 400/2500
Inputs/Outputs	Audio Input 1/8" (3.5mm) stereo Audio Output 1/8" (3.5mm) stereo Video Output HDMI Type A Additional I/O USB Type C 2.5mm LANC RJ45 LAN DB-9 (RS-232) Wireless 2.4 GHz WiFi
Item Type	Camera
Mfr. Model Number	E2-F6, EM102
Power Supply	Input DC 6.8V ~ 16.8V (2-pin LEMO socket), with LEMO connector Output DC 12V (2-pin LEMO socket) Battery Compatibility Sony NP-F series compatible, 6.8V ~ 8.4V
Recording	Format Video: MOV, MP4 Audio: AAC, PCM Encoder ZRAW* / H.265 Resolutions & Frame Rate 6064×4040 @30fps 6064×3196 @48fps 6064×2560 @60fps 5760×3240 @48fps 5376×4032 @30fps 4848×4040 @30fps 4096×2160 @72fps 4096×1728 @120fps 3840×2160 @72fps 1920×1080 @120fps Media CFast 2.0 Bit Rate 300 Mbps max for H.265 & H.264 1.2 Gbps for ZRAW File System exFAT
Weight	2.4 lbs.
Wireless	5G, 802.11n with external antenna port
