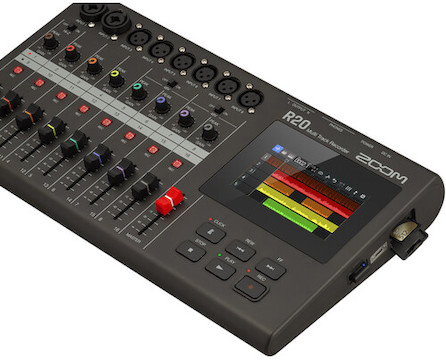

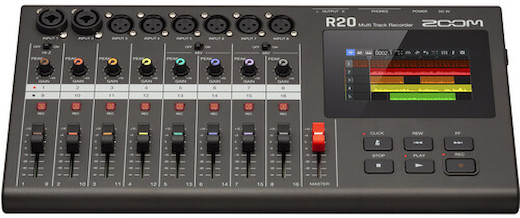

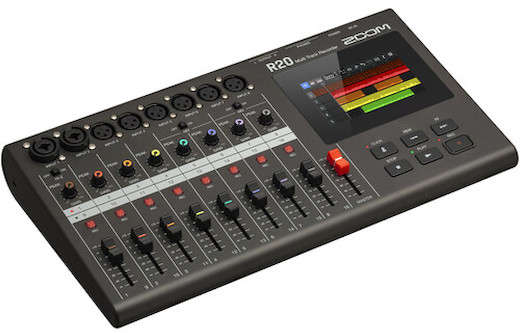

Zoom R20 Portable Multitrack Recorder

Zoom R20 Portable Multitrack Recorder

The Zoom R20 Portable Multitrack Recorder is an all-in-one tabletop audio recording, editing, and mixing solution that untethers your recording project from a computer. It includes an array of preamps and effects. Key features include:

  • Standalone multitrack recorder or 8×4 USB interface

  • DAW-style touchscreen interface; color-coded controls

  • 16-track recorder with simultaneous 8-track recording

  • Built-in effects, synths, and drum loops

Read More

Q & A

  • Does this recorder have known issues with any DAWs?
    • As of June 2022, this recorder won’t work properly with ProTools version 2022.04. It will work with previous versions of ProTools. You can find out more here.

    • We’ll update this Q&A when Zoom has an update to this issue.

  • Specifications

    Audio Type

    Field Recorder

    Brand

    Zoom

    Compatibility

    OS Compatibility

    • macOS
    • Windows
    Supported Drivers/API & Plug-Ins
    • macOS Class-Compliant (No Driver Needed)
    • Windows Driver Downloadable from Manufacturer
    Required Hardware
    • Available USB Port

    Connectivity

    Analog Audio I/O

    • 1x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
    • 1x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
    • 6x XLR 3-Pin Balanced Mic/Line Input
    • 2x 1/4" TRS Balanced Line Output
    • 1x 1/4" TRS Unbalanced Headphone Output
    Phantom Power
    • 48 V, Selectable On/Off (on 4 Channels)
    Digital Audio I/O
    • None
    Host Connection / USB
    • 1x USB Type-C (USB 2.0)
    USB (Non-Host)
    • 1x USB Type-A (Remote)
    Sync I/O
    • None
    Network I/O
    • None
    MIDI I/O
    • None
    Wireless Connectivity
    • None

    Digital Audio

    Audio File Formats

    • BWF
    Sample Rates
    • 44.1 kHz (BWF)
    Bit Depths
    • 16 / 24-Bit
    Sync Sources
    • Internal

    General

    Form Factor

    • Tabletop
    Number of Tracks
    • WAV: 8
    Maximum Simultaneous Tracks
    • 8x Recording / 16x Playback (at 44.1 kHz)
    Display
    • 4.3" Color LCD Touchscreen
    Maximum Sampling Rate
    • 44.1 kHz / 24-Bit
    Number of Microphone Preamps
    • 8
    Built-In Microphone
    • None
    Input Level Adjustment
    • 8x Knob
    Number of Headphone Mixes
    • 1x Master
    Sample Pads
    • None

    Item Type

    Audio

    Mfr. Model Number

    ZR20

    See All

    Includes

    • Zoom R20 Recorder
    • AC adapter
    • 1/4" to 1/8" adapter
    • Case

    Specifications

    Audio Type

    Field Recorder

    Brand

    Zoom

    Compatibility

    OS Compatibility

    • macOS
    • Windows
    Supported Drivers/API & Plug-Ins
    • macOS Class-Compliant (No Driver Needed)
    • Windows Driver Downloadable from Manufacturer
    Required Hardware
    • Available USB Port

    Connectivity

    Analog Audio I/O

    • 1x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
    • 1x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
    • 6x XLR 3-Pin Balanced Mic/Line Input
    • 2x 1/4" TRS Balanced Line Output
    • 1x 1/4" TRS Unbalanced Headphone Output
    Phantom Power
    • 48 V, Selectable On/Off (on 4 Channels)
    Digital Audio I/O
    • None
    Host Connection / USB
    • 1x USB Type-C (USB 2.0)
    USB (Non-Host)
    • 1x USB Type-A (Remote)
    Sync I/O
    • None
    Network I/O
    • None
    MIDI I/O
    • None
    Wireless Connectivity
    • None

    Digital Audio

    Audio File Formats

    • BWF
    Sample Rates
    • 44.1 kHz (BWF)
    Bit Depths
    • 16 / 24-Bit
    Sync Sources
    • Internal

    General

    Form Factor

    • Tabletop
    Number of Tracks
    • WAV: 8
    Maximum Simultaneous Tracks
    • 8x Recording / 16x Playback (at 44.1 kHz)
    Display
    • 4.3" Color LCD Touchscreen
    Maximum Sampling Rate
    • 44.1 kHz / 24-Bit
    Number of Microphone Preamps
    • 8
    Built-In Microphone
    • None
    Input Level Adjustment
    • 8x Knob
    Number of Headphone Mixes
    • 1x Master
    Sample Pads
    • None

    Item Type

    Audio

    Mfr. Model Number

    ZR20

    See All
