The Atomos Shogun 7 is a compact, 7.2-inch single channel 4K HDMI /SDI HDR monitor-recorder with an integrated 4x HD ISO SDI recorder and switcher. Key features include:
15-stop HDR dynamic range; 10-bit signal processor
Capture RAW up to 5.7k 30p, 4k 60p, or 2k 240p
Switches and records up to 4x HD ISO SDI inputs and program out
Improved, more durable construction

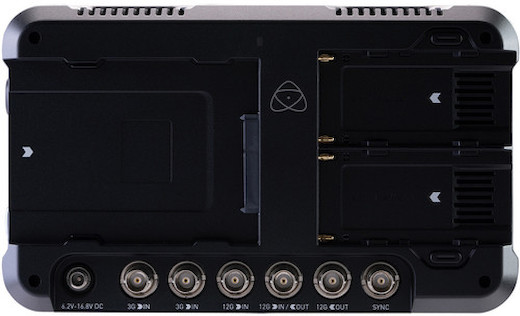

4K Connectivity and Recording. Like the Shogun Inferno, the Shogun 7 has support for quad, dual, or single BNC connections. In addition to multiple SDI inputs, the Shogun 7 also supports HDMI 2.0v for 4K capture up to 60p. Full recording format options include ProRes RAW, ProRes, CinemaDNG, and DNxHD.

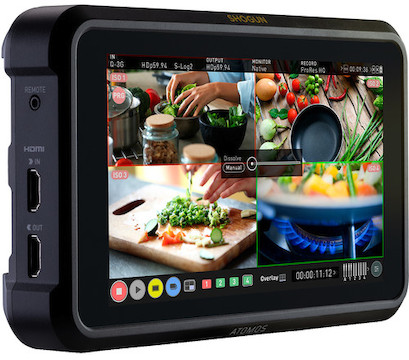

Four Source Switching / Recording. The Atomos Shogun 7 HDR Pro/Cinema Monitor-Recorder-Switcher is capable of processing up to four 1080p60 signals over SDI with built-in multiview for simple, touchscreen switching. The ISO recording feature allows you to capture each, individual camera signals with matched resolutions and frame rates simultaneously in addition to your program out for a live edit. Need to stream? No problem, the Shogun 7 allows you to set your program out to SDI or HDMI for flexible delivery options!

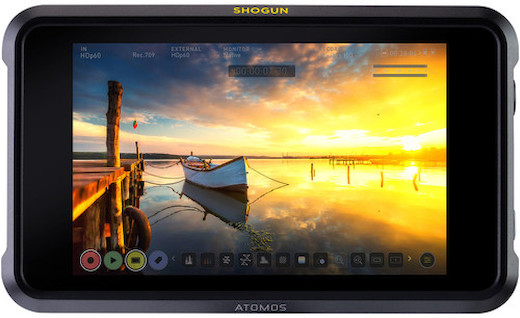

Improved Display. The Shogun 7’s 1500 cd/m² display features Atomos’ 360 zone backlight, boasting an impressive 15+ stops of dynamic range for incredibly accurate color reproduction that can be viewed even in brightest of environments.
AtomOS 10. The Shogun 7 runs the latest Atomos operating system featuring an intuitive user interface and one touch tool setup. The Shogun 7 also allows for instant playback, slow motion, and frame analysis for in-the-field review.
More Rugged Construction. The Shogun 7 was rethought with a focus on real-world production environments. The improved housing panels feature reinforced panels at the top and bottom 1/4-20 mounts. Dual Sony L-Series battery plate enable longer record times and allow hot swapping for a full day of shooting.
SSDs Not Included. This rental doesn’t include an SSD, but they’re available as separate rental items.
Updated Models Available. If you’re looking for a similar device with more capabilities at a cheaper price point, we have the Shogun CONNECT 7-inch Cloud-Enabled Monitor / Recorder available for rent.
