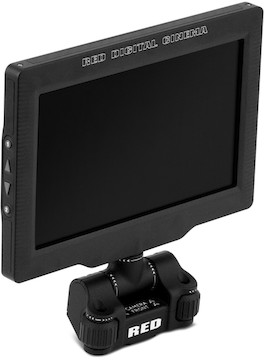

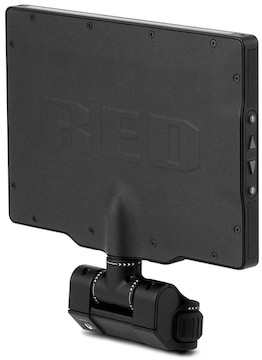

RED DSMC2 Touch 7" LCD

The RED DSMC2 Touch 7-inch LCD is an accessory touchscreen for your RED DSMC2 camera and the predecessor to the RED DSMC2 Touch 7-inch Ultra-Brite LCD Direct Mount. Key features include:

Brand	RED
Camera Type	Camcorder
Color Depth	8-bit RGB, 4:4:4 progressive scan (16.7 million colors)
Contrast	1000:1
Display	Screen Size 7“ Resolution 1920 x 1136 Pixel Density 323 PPI Bit Depth 8-bit Brightness 350 cd/m²
Display Colors	70% NTSC
Item Type	Monitoring and Camera
Material	Aluminum Carbon Fiber
Maximum Power Consumption	5.5 W (typical)
Monitoring Type	Monitor
Operating Temperature	32°F to 104°F
Orientation	Landscape 180° rotation
Physical	Dimensions 7.15 × 7.28 × 0.51” Weight 1.21 lbs. Accessory Mounts 2x M4 captive screws, ¼-20 mounting hole in base
Pixel Density	323 pixels per inch (ppi)
Refresh Rate	60 Hz
Response Time	23 ms (black to white)
Storage Temperature	–4°F to 122°F
Viewing Angle	± 85° all axes

Specifications
