Alphatron EVF-035W-3G Electronic Viewfinder

$112.00
/
7 Day

Rental

Interested in purchasing?

Learn More

Includes

  • Alphatron EVF
  • NP-F970 Battery
  • Battery Charger
  • Mounting Arm
  • Universal Rail Mount
  • HDMI to HDMI-mini Adapter
472261554437

Alphatron EVF-035W-3G Electronic Viewfinder

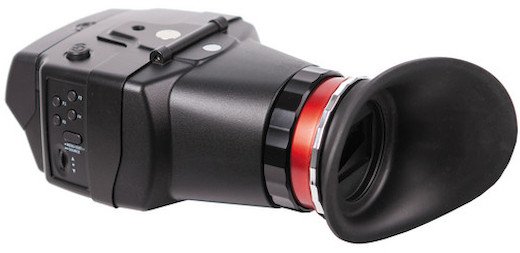

The Alphatron EVF-035W-3G Electronic Viewfinder is a high quality SDI viewfinder. Key features include:

  • mini-HDMI to SDI Conversion. With both SDI and mini-HDMI inputs and outputs, the viewfinder offers loop out / conversion out options.
  • 3.54" LED-Backlit LCD. Provides a 24-bit RGB display at 960 × 640 in 16:9 ratio. Its brightness is at 500 nit and contrast ratio at 1000:1, with a viewing angle of 160 × 160°. It features an adjustable diopter and a manual lens shutter for protection of the LCD.
  • Various Built-In Features. Adjustable features include Brightness, Contrast, Color Temperature, Sharpness, various Scan modes, Markers, User Aspect Zoom, and Blue Gun. Professional features available are 3G Level A/B, Audio Meter, Time Code, Range Error, Zebra, Luma y’ Zone Check, Focus Assist, and Internal Colorbar and Pluge Pattern.
  • Battery Life. The viewfinder can run for close to 8 hours on a single Sony NP-F970; however, it can run off of AB Gold Mount or V-mount batteries using an optional D-Tap cable.

Specifications

Basic Features

Brightness, Contrast, Color Temperature, Sharpness, Various Scan Mode, and Markers, User Aspect, Zoom, Blue Only

Brand

Alphatron

Camera Support Type

Viewfinder

Display

Retina LCD (LED Backlight) and 3,54” (960×640, 16:9) 500cd/㎡ 1000 : 1 24bit RGB 160˚(H) / 160˚(V)

Interface

Input 1 HDMI, 1 BNC (3G/HD/SD-SDI) Output 1 HDMI 1 BNC (HD/SD-SDI)

Item Type

Monitoring and Accessory

Monitoring Type

Viewfinder

Pro Features

HD Video 3G Level A/B, Audio Level Meter, Time Code Display, Range Error,, Zebra Pattern, Luma(y’) Zone Check, Focus Assist, Waveform & Vectorscope,, Internal Colourbar + Pluge Pattern, HDMI-to-HDSDI Conversion Out,, and HDMI~HDMI A Loop Through, SDI~SDI A Loop Through

Includes

  • Alphatron EVF
  • NP-F970 Battery
  • Battery Charger
  • Mounting Arm
  • Universal Rail Mount
  • HDMI to HDMI-mini Adapter

Specifications

Basic Features

Brightness, Contrast, Color Temperature, Sharpness, Various Scan Mode, and Markers, User Aspect, Zoom, Blue Only

Brand

Alphatron

Camera Support Type

Viewfinder

Display

Retina LCD (LED Backlight) and 3,54” (960×640, 16:9) 500cd/㎡ 1000 : 1 24bit RGB 160˚(H) / 160˚(V)

Interface

Input 1 HDMI, 1 BNC (3G/HD/SD-SDI) Output 1 HDMI 1 BNC (HD/SD-SDI)

Item Type

Monitoring and Accessory

Monitoring Type

Viewfinder

Pro Features

HD Video 3G Level A/B, Audio Level Meter, Time Code Display, Range Error,, Zebra Pattern, Luma(y’) Zone Check, Focus Assist, Waveform & Vectorscope,, Internal Colourbar + Pluge Pattern, HDMI-to-HDSDI Conversion Out,, and HDMI~HDMI A Loop Through, SDI~SDI A Loop Through
