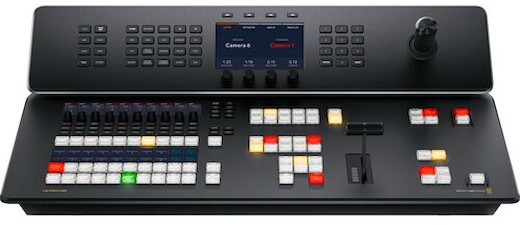

Blackmagic Design ATEM Television Studio Pro 4K8 Switcher

$405.00
/
7 Day

Rental

Includes

  • Blackmagic ATEM Television Studio 4K8 Switcher
  • SKB iSeries 2617-12 Blackmagic HD8 Case
  • 3 Prong Power Cord 6ft
  • Monoprice SlimRun Cat6A Ethernet (7ft / Yellow)
  • LR Thunderbolt 4 USB 6ft Cable

Resources

  • Manual
  • Blackmagic Design ATEM Television Studio Pro 4K8 Switcher

    The Blackmagic Design ATEM Television Studio Pro 4K8 Switcher is an all-in-one live streaming switcher designed to be a great addition to any streaming production. Key features include:

    • Streaming support, USB & M.2 recording

    • Eight 12G-SDI inputs

    • Customizable electronic LCDs

    • Redesigned buttons and layout

    Read More

    Q & A

  • Are there longer ethernet cable options?
  • Will this device allow for online streaming?
    • Yep! This updated switcher includes a built-in hardware streaming engine that allows you to live stream globally.

  • Is there an ISO version of this switcher?
    • There is no ISO version of the 4K8. This model will only record the program output of the switcher to USB-C SSDs. However, you should be aware that the recordings are HD and not 4K when recording to disk.

  • Specifications

    Audio Type

    Switching

    Brand

    Blackmagic

    Connectivity Other I/O
    • 1 x BNC Reference Input
    • 1 x BNC Reference Output
    • 1 x BNC Timecode
    • 1 x BNC Timecode
    • 4 x RJ45 LAN Input/Output
    • 1 x RJ45 Talkback Input/Output
    • 1 x RJ12 Remote Input/Output
    • 2 x USB-C Output
    Video Standard Compliance
    • SMPTE 292M/296M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10
    Transport Protocols
    • RTMP
    Display Screen Resolution
    • 1366 × 768
    Environmental

    Operating Temperature

    • 32.0 to 72.0°F
    Storage Temperature
    • -4 to 140°F
    Operating Humidity
    • 0 to 90%
    Storage Humidity
    • 0 to 90%

    General

    Available M/E Layers

    • 4 M/E
    Effect Types
    • 1 x DVE, Stinger
    • 4 x Chroma Key
    • 7 x Luma Key
    Downstream Keys
    • 2 x Chroma, Luma, DVE
    Generators
    • 7 x Pattern
    • 2 x Color
    Audio Mixing
    • 58-Channel Mixing

    Hardware

    OS Compatibility

    • macOS 12 to 13 or Later
    • Windows 10 to 11
      *As of April, 2023: Check with manufacturer for the most up-to-date compatibility
    Wi-Fi
    • None
    Bluetooth
    • None
    Power I/O
    • 1 x IEC C14 (100 to 240 VAC) Input
    • 1 x XLR 4-Pin (12 VDC) Input

    Input

    Number of Video Input Sources

    • 8
    Video Inputs
    • 8 x BNC (12G-SDI)
    FemaleAudio Inputs
    • 1 x BNC MADI Female
    • 1 × 2RCA Stereo Analog Female
    • 2 x XLR 3-Pin Analog Female
    • 1 x XLR 5-Pin Female
    Embedded Audio Input
    • SDI

    See All
