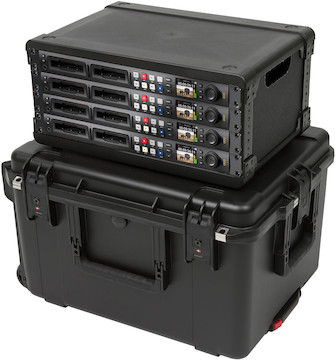

Blackmagic Design HyperDeck Studio HD Pro 4-Pack

$369.00
/
7 Day

Rental

Includes

  • (4) HyperDeck Studio HD Pro
  • (4) 6-foot Cat6A Ethernet cable
  • (4) 3-prong universal power cord
  • 4U rack cage
  • Wheeled case

Blackmagic Design HyperDeck Studio HD Pro 4-Pack

Enhance your next Blackmagic Design ATEM switcher-based production with external solid state decks using our Blackmagic Design HyperDeck Studio HD Pro 4-Pack. Key features include:

  • 4x broadcast decks for capture / playback over 6G-SDI or HDMI 2.0

  • Supports up to 422 10-bit using ProRes, DNx, and H.264

  • Record to SATA-II / III SSD, SD card, or USB-C external drive

  • On-board display, search dial, and illuminated transport controls

Read More

Q & A

  • How many HyperDecks can be connected to a single ATEM?
    • You can connect up to four HyperDecks to any ATEM running firmware version 6.8 or newer.

  • Will I need anything else?
    • This rental does not include SSDs, video cables, or an ATEM switcher.

    • When used with an ATEM switcher, you will need some form of ethernet hub (not included). If you have any questions about using the HyperDeck with your existing network contact us and a tech will be happy to help you determine if this is the right gear for you.

  • Specifications

    Brand

    Blackmagic

    Display

    Built-in LCD for video, audio and timecode monitoring

    Inputs/Outputs

    Video Inputs

    • 1x 1.5G/3G/6G-SDI
    • 1x HDMI 2.0
    Video Outputs
    • 1x 1.5G/3G/6G-SDI
    • 1x HDMI 2.0
    Audio Outputs
    • 1/4" headphone jack
    Reference
    • 1x BNC in
    • 1x BNC out
    Timecode
    • 1x 3-pin XLR in
    • 1x 3-pin XLR out
    Computer Interface
    • 1 x USB Type-C 3.0 (up to 5Gb/s)
    Ethernet
    • 1Gb/s

    Item Type

    Switcher

    Memory Type

    (2) 2.5" SATA-II / III, SD card, or USB-C external drive

    Sample Rate

    Video: 4:2:2
    Audio: 48kHz/24-bit

    Supported Codecs

    H.264

    • High SDI (4:2:2 10-bit)
    • High (4:2:0 8-bit)
    • Medium (4:2:0 8-bit)
    • Low (4:2:0 8-bit)
    ProRes
    • HQ
    • 422
    • LT
    • Proxy
    DNxHR
    • HQX
    • HQX MXF
    • SQ
    • SQ MXF
    • LB
    • LB MXF

    Supported Frame Rates

    720p

    • 50
    • 59.94
    • 60
    1080p
    • 23.976
    • 24
    • 25
    • 29.97
    • 30
    1080i
    • 50
    • 59.94
    • 60
    2K DCI
    • 23.98
    • 24
    • 25
    • 29.97
    • 30
    4K UHD
    • 23.976
    • 24
    • 25
    • 29.97
    • 30
    4K DCI
    • 23.98
    • 24
    • 25
    • 29.97
    • 30

    Includes

    • (4) HyperDeck Studio HD Pro
    • (4) 6-foot Cat6A Ethernet cable
    • (4) 3-prong universal power cord
    • 4U rack cage
    • Wheeled case

    Specifications

    Brand

    Blackmagic

    Display

    Built-in LCD for video, audio and timecode monitoring

    Inputs/Outputs

    Video Inputs

    • 1x 1.5G/3G/6G-SDI
    • 1x HDMI 2.0
    Video Outputs
    • 1x 1.5G/3G/6G-SDI
    • 1x HDMI 2.0
    Audio Outputs
    • 1/4" headphone jack
    Reference
    • 1x BNC in
    • 1x BNC out
    Timecode
    • 1x 3-pin XLR in
    • 1x 3-pin XLR out
    Computer Interface
    • 1 x USB Type-C 3.0 (up to 5Gb/s)
    Ethernet
    • 1Gb/s

    Item Type

    Switcher

    Memory Type

    (2) 2.5" SATA-II / III, SD card, or USB-C external drive

    Sample Rate

    Video: 4:2:2
    Audio: 48kHz/24-bit

    Supported Codecs

    H.264

    • High SDI (4:2:2 10-bit)
    • High (4:2:0 8-bit)
    • Medium (4:2:0 8-bit)
    • Low (4:2:0 8-bit)
    ProRes
    • HQ
    • 422
    • LT
    • Proxy
    DNxHR
    • HQX
    • HQX MXF
    • SQ
    • SQ MXF
    • LB
    • LB MXF

    Supported Frame Rates

    720p

    • 50
    • 59.94
    • 60
    1080p
    • 23.976
    • 24
    • 25
    • 29.97
    • 30
    1080i
    • 50
    • 59.94
    • 60
    2K DCI
    • 23.98
    • 24
    • 25
    • 29.97
    • 30
    4K UHD
    • 23.976
    • 24
    • 25
    • 29.97
    • 30
    4K DCI
    • 23.98
    • 24
    • 25
    • 29.97
    • 30

    Reviews

    See Reviews
