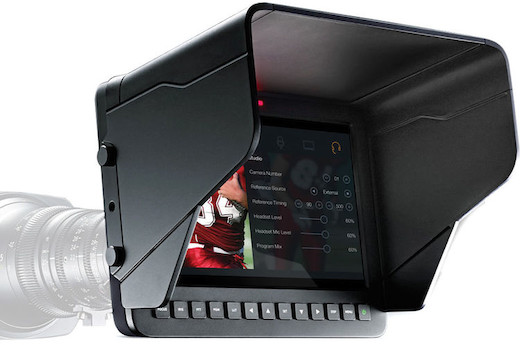

Blackmagic Design Studio Camera HD

Includes

  • Blackmagic Design Studio Camera
  • Monitor hood
  • AC adapter

Resources

  • Manual
  • Blackmagic Design Studio Camera HD

    While we no longer rent this product, we do carry the Blackmagic Design Studio Camera 4K 2. You may also find alternatives in the Recommended section on the left-hand side of this page.

    • Massive 10.1-inch, 1,920 × 1,200 TFT-LCD display

    • Feature-rich design for multi-camera productions

    • Active Micro 4/3 mount

    • Excellent value

    Read More

    LR's Take

    In General


    BMD is on to a good idea here, astutely recognizing a video trend toward compact, affordable multi-camera shoots. It has a huge LCD and works great with the Blackmagic Atem. However, the lack of in...

    Read More

    Q & A

  • Does this rental include a 3G or 6G Optical Module?
    • This rental doesn’t include a 3G or 6G Optical Module. If you’d like one, please request it in the Special Instructions box during checkout.

  • Does this camera support servo zoom?
  • Does this rental include DaVinci Resolve?
    • Due to copyright, we can’t include DaVinci Resolve with rentals. You may download DaVinci Resolve Lite for free here.

  • Does this camera include a hot shoe mount or adapter?
    • This camera doesn’t include a hot shoe mount or adapter. If you want to use any shoe-mountable accessories, you may rent one here.

  • Can I mount this camera to a tripod?
    • Yes. Please note that this camera only has 3/8”-16 tripod threads. If you want to mount this camera to a tripod, that tripod must have a 3/8”-16 screw.

  • What’s this camera’s crop factor?
    • Any lens’s focal length, no matter what brand or mount, will be multiplied by 2.88 when used with this camera. For example, a 50mm lens on this camera will look like a 144mm lens would on a full-frame camera. For more information, please consult this crop-factor article.

  • Does this camera have a built-in recording function?
    • This camera doesn’t have a built-in recording function. You’ll need to rent an external video recorder to capture footage.

  • Does this rental include a lens?
    • This rental doesn’t include a lens.

  • Specifications

    Brand

    Blackmagic

    Camcorder Type

    Cinema

    Camera Type

    Camcorder

    Imaging

    Sensor

    • Type: S16
    • Size: 12.48 × 7.02mm
    Crop Factor
    • Approximately x2.88
    Dynamic Range
    • 13 Stops

    Inputs/Outputs

    Video Input

    • 1x 1.5G/3G SDI
    Video Output
    • 1x 1.5G/3G SDI
    Audio Inputs
    • 1x XLR Analog
    • Mic/Line switchable
    • 48+ Supported
    Additional Inputs/Outputs
    • Remote: 1x 2.5mm LANC
    • Reference: Tri-Sync or Black Burst
    • Optical Fiber I/O (module by request)

    Item Type

    Camera

    Monitoring

    Display Screen

    • 10.1” TFT-LCD
    • 1920 × 1200
    Display Type
    • Fullscreen Live View
    • Fullscreen Program View
    Audio
    • Camera/Input
    • Fixed Wing Plug compatible for talkback/audio
    Tally
    • Front/Rear

    Mount

    Micro 4/3rds

    See All

    Includes

    • Blackmagic Design Studio Camera
    • Monitor hood
    • AC adapter

    Specifications

    Brand

    Blackmagic

    Camcorder Type

    Cinema

    Camera Type

    Camcorder

    Imaging

    Sensor

    • Type: S16
    • Size: 12.48 × 7.02mm
    Crop Factor
    • Approximately x2.88
    Dynamic Range
    • 13 Stops

    Inputs/Outputs

    Video Input

    • 1x 1.5G/3G SDI
    Video Output
    • 1x 1.5G/3G SDI
    Audio Inputs
    • 1x XLR Analog
    • Mic/Line switchable
    • 48+ Supported
    Additional Inputs/Outputs
    • Remote: 1x 2.5mm LANC
    • Reference: Tri-Sync or Black Burst
    • Optical Fiber I/O (module by request)

    Item Type

    Camera

    Monitoring

    Display Screen

    • 10.1” TFT-LCD
    • 1920 × 1200
    Display Type
    • Fullscreen Live View
    • Fullscreen Program View
    Audio
    • Camera/Input
    • Fixed Wing Plug compatible for talkback/audio
    Tally
    • Front/Rear

    Mount

    Micro 4/3rds

    See All

    Resources

  • Manual
  • Reviews

    See Reviews

    Blackmagic Design Studio Camera HD

    $103.00
    /
    7 Day

    Rental
