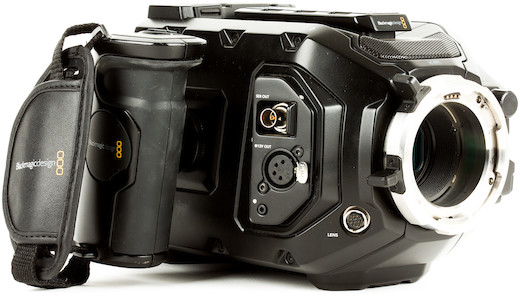

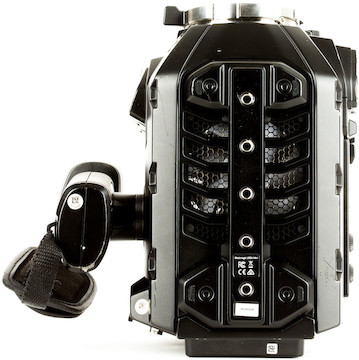

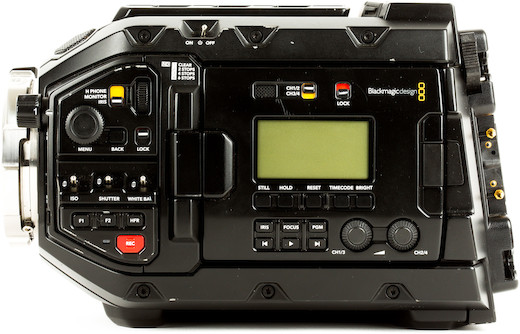

Blackmagic Design URSA Mini Pro 4.6K (PL)

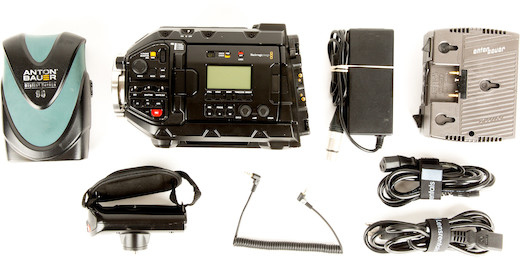

Includes

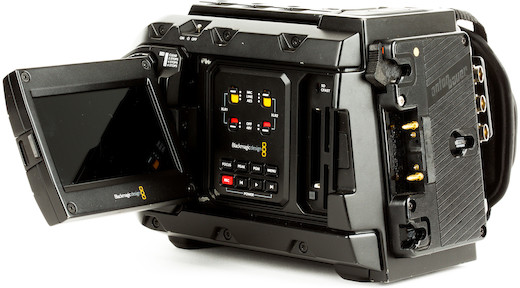

URSA Mini Pro 4.6K Camera

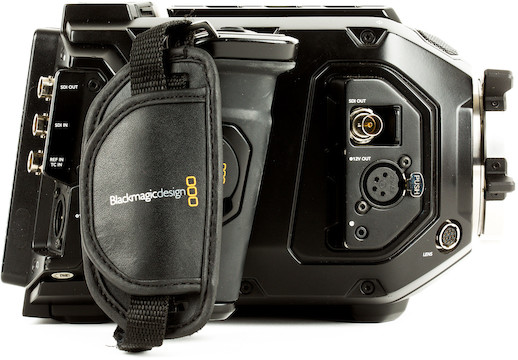

Side handle

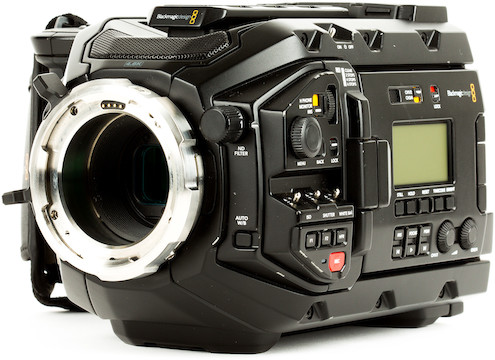

PL lens mount (attached)
12-inch coiled LANC cable
AC adapter

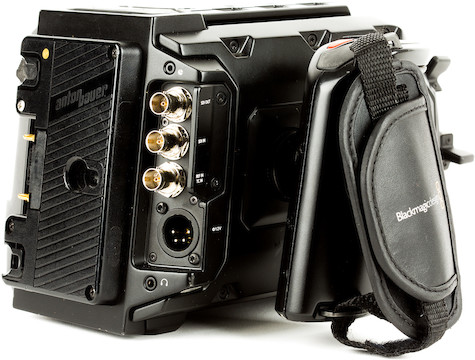

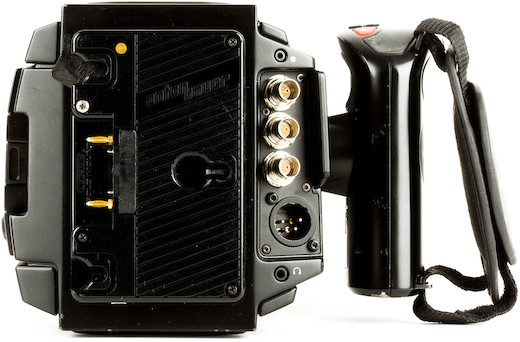

Gold Mount battery plate
Anton Bauer Digital 90 Gold Mount Battery
Anton Bauer Twin 60 Charger

Resources

Diagrams

Manual

DaVinci Resolve

Blackmagic Design URSA Mini Pro 4.6K (PL)

While we no longer rent this product, we do carry the URSA Mini Pro 4.6K G2. Key features include:

4.6K Super 35mm sensor
External controls
Fifteen-stop dynamic range
PL mount

Joshua's Take

Video Tech

The Pro version of the URSA Mini adds new features that should make for less finger tap dancing around the touchscreen menus. An ND filter wheel is the best new addition in my opinion, but tactile ...

Q & A

Will this camera record CinemaDNG?

No. As of the most recent firmware update, this camera will only record Blackmagic RAW, not CinemaDNG.

Are there any recording limitations with using SD memory?

RAW HD and 4K/30p ProRes can be recorded to UHS-II SD memory cards. You can find a list of manufacturer-recommended SD cards and formats they support here.

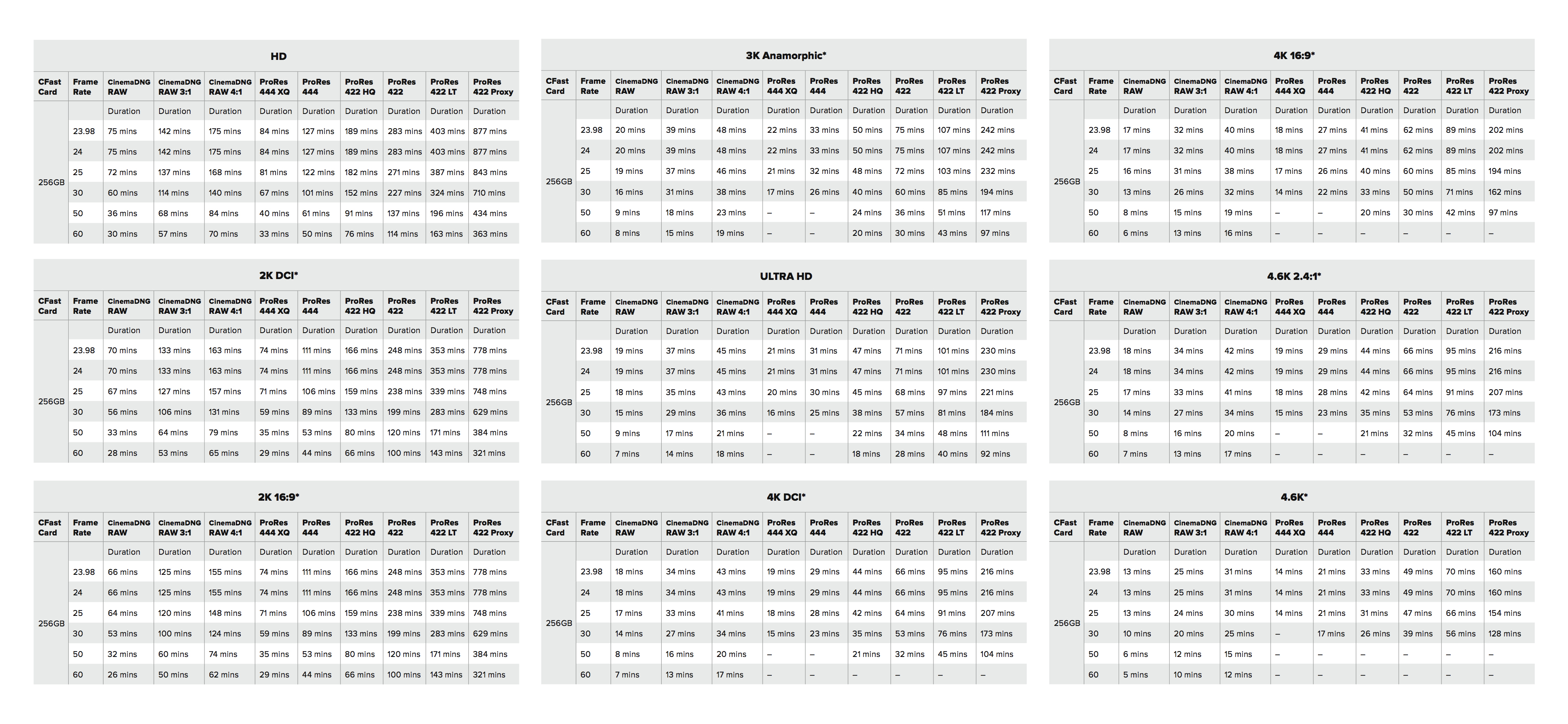

If you’re looking to record in higher resolutions and frame rates, you’ll need to use CFast 2.0 memory cards. You can find a list of manufacturer-recommended CFast 2.0 cards and formats they support here.

Does this rental include DaVinci Resolve?

Due to copyright, we can’t include DaVinci Resolve with rentals. You may download DaVinci Resolve Lite for free here.

Specifications

Brand	Blackmagic
Camcorder Type	Cinema
Camera Type	Camcorder
Dimensions	8" 8.2″ × 5.8″
Dynamic Range	15 stops
Effective Resolution	4608 × 2592
Frame Rates	23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
Inputs/Outputs	Video Inputs 1x BNC (12G-SDI) Video Outputs 2x BNC (12G-SDI) clean output & monitor output
Item Type	Camera and Cinema Cameras
Microphone	2x built-in cardioid microphones (-10dB pad and low-cut filter)
Mount	PL Mount
Power Input	4-pin XLR input for external power supply or battery; 12-pin molex connector on rear battery plate
Power Output	12V output (4-pin XLR) for EVF; 12V regulated output 12-pin molex connector
Recording Formats	CinemaDNG Raw (Uncompressed or Lossless 3:1/4:1 Compressed): 4608 × 2592, 4096 × 2304, 4608 × 1920, 3072 × 2560, 2048 × 1152; Apple ProRes: 4608 × 2592, 4608 × 1920, 4096 × 2304, 4096 × 2160, 3072 × 2560, 2048 × 1152, 2048 × 1080, 1920 × 1080
Reference	Tri-Sync/Black Burst/Timecode
Sensor Size	25.34 × 14.25 mm (Super 35)
Storage Rates	4608 × 2592: Uncompressed CinemaDNG Raw – 513MB/s, CinemaDNG Raw 3:1 – 180 MB/s, CinemaDNG Raw 4:1 – 135 MB/s 3840 × 2160: Apple ProRes 444 XQ – 312.5 MB/s, Apple ProRes 444 – 165 MB/s, Apple ProRes 422 HQ – 110 MB/s, Apple ProRes 422 – 73.6 MB/s, Apple ProRes 422 LT – 51 MB/s, Apple ProRes Proxy – 22.4 MB/s 1920 × 1080: Apple ProRes 444 XQ – 62.5 MB/s, Apple ProRes 444 – 41.25 MB/s, Apple ProRes 422 HQ – 27.5 MB/s, Apple ProRes 422 – 18.4 MB/s, Apple ProRes 422 LT – 12.75 MB/s, Apple ProRes Proxy – 5.6 MB/s; Rates based on 30 frames per second.
Supported Standards	SDI Compliance: SMPTE 292M, SMPTE 424 Level B, Draft SMPTE 2081-1, Draft SMPTE 2082-1; SDI Audio Sampling: 48 kHz and 24-bit
USB	USB Type C for software updates
Weight	5.0 lbs.
