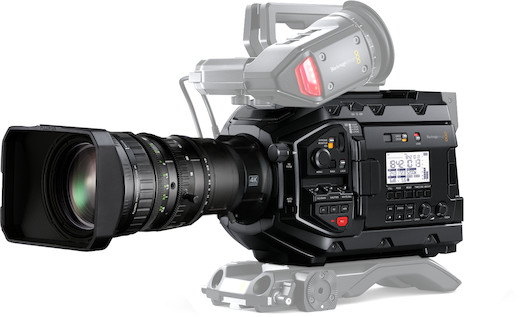

Blackmagic URSA Broadcast (B4) w/ Fujinon LA16x8BRM-XB1A

Includes

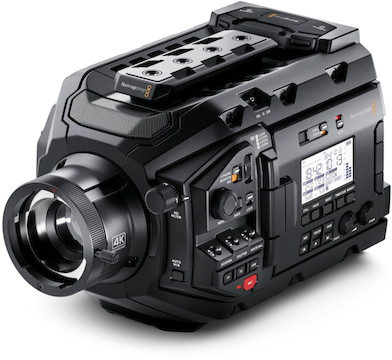

Blackmagic URSA Broadcast Camera (B4)
Fujinon LA16x8BRM lens w/ servo
Hard case

Resources

Blackmagic URSA Broadcast (B4) w/ Fujinon LA16x8BRM-XB1A

While we no longer rent this product, we do carry the Blackmagic URSA Broadcast G2 (B4) w/ Fujinon XA20SX8.5BERM. You may also find alternatives here.

UHD 4K sensor capable of recording up to 60 fps

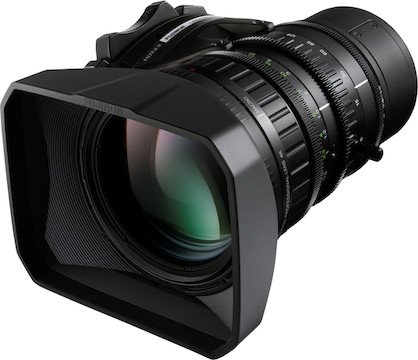

Fujinon LA16x8BRM 16x 8mm-128mm f/1.9-2.8 zoom lens w/ servo
Records to CFast 2.0 or UHS-II SD media (not included)
Designed for 4K 2/3-inch type sensor coverage when used with B4 mount and lenses

Q & A

Is this camera/lens combo compatible with any zoom controllers?

Any of our Libec LANC controllers or Manfrotto pan bar are capable of triggering record or engaging the servo zoom from the camera’s LANC port. Iris and focus can only be controlled through the camera body or lens when paired with these remotes.
For a more sophisticated, studio style control kit, we recommend the Fujinon MS-X1.

Do you offer an all-in-one kit for this?

We sure do! We offer the Blackmagic Design Ursa Broadcast Studio Kit as a way to get you going as a more complete kit with a different lens. The only other things you’ll need to add are a tripod and some media, if necessary. If you have any questions, please contact us.

Does this B4 lens feature an extender?

No. This lens does not feature an extender. We do offer the Fujinon XA20SX8.5BERM-K3 B4 Lens for 2/3 Sensors as a separate rental item. If you need a focal length beyond that, contact us and we will be happy to help you determine the right gear for your shoot.

Do you rent this camera without the lens?

Yep! So many customers requested this option that we now offer the Blackmagic URSA Broadcast Camera as a stand-alone item for those of you who already own lenses and other accessories.

Does this rental include DaVinci Resolve?

Due to copyright, we can’t include DaVinci Resolve with rentals. You may download DaVinci Resolve for free here.

Will this camera work with any B4 lens?

Yes. Any B4 mount broadcast lens for 2/3-inch systems will mount to this camera. A broadcast lens control connector is also available for lens power and control of compatible lenses.

Are there any recording limitations with using SD memory?

Raw HD and 4K/30p ProRes can be recorded to UHS-II SD memory cards. You can find a list of manufacturer-recommended SD cards and formats they support here.
If you’re looking to record in higher resolutions and frame rates, you’ll need to use CFast 2.0 memory cards. You can find a list of manufacturer-recommended CFast 2.0 cards and formats they support here.

Specifications

Autofocus	Manual Focus Only
Brand	Blackmagic
Camera Type	Camcorder
Dimensions	8″ × 8.2″ × 5.8″
Dynamic Range	12 stops+
Effective Resolution	3840 × 2160
Focal Length	8.0-128.0
Frame Rates	23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
Hood Included	Yes
Image Stabilization	No
Inputs/Outputs	Video Inputs 1x BNC (12G-SDI) Video Outputs 2x BNC (12G-SDI) clean output & monitor output
Item Type	Camera and Lens
Lens Type	Specialty
Max Aperture	1.9
Microphone	2x built-in cardioid microphones (-10dB pad and low-cut filter)
Minimum Aperture	22.0
Mount	B4
Power Input	4-pin XLR input for external power supply or battery; 12-pin molex connector on rear battery plate
Power Output	12V output (4-pin XLR) for EVF; 12V regulated output 12-pin molex connector
Reference	Tri-Sync/Black Burst/Timecode
Sensor Size	13.056mm x 7.344mm (2/3-inch)
Supported Standards	SDI Compliance: SMPTE 292M, SMPTE 424 Level B, Draft SMPTE 2081-1, Draft SMPTE 2082-1; SDI Audio Sampling: 48 kHz and 24-bit
USB	USB Type C for software updates
Weight	5.1 lbs.

See All

Includes

Blackmagic URSA Broadcast Camera (B4)
Fujinon LA16x8BRM lens w/ servo
Hard case

Specifications

Autofocus	Manual Focus Only
Brand	Blackmagic
Camera Type	Camcorder
Dimensions	8″ × 8.2″ × 5.8″
Dynamic Range	12 stops+
Effective Resolution	3840 × 2160
Focal Length	8.0-128.0
Frame Rates	23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
Hood Included	Yes
Image Stabilization	No
Inputs/Outputs	Video Inputs 1x BNC (12G-SDI) Video Outputs 2x BNC (12G-SDI) clean output & monitor output
Item Type	Camera and Lens
Lens Type	Specialty
Max Aperture	1.9
Microphone	2x built-in cardioid microphones (-10dB pad and low-cut filter)
Minimum Aperture	22.0
Mount	B4
Power Input	4-pin XLR input for external power supply or battery; 12-pin molex connector on rear battery plate
Power Output	12V output (4-pin XLR) for EVF; 12V regulated output 12-pin molex connector
Reference	Tri-Sync/Black Burst/Timecode
Sensor Size	13.056mm x 7.344mm (2/3-inch)
Supported Standards	SDI Compliance: SMPTE 292M, SMPTE 424 Level B, Draft SMPTE 2081-1, Draft SMPTE 2082-1; SDI Audio Sampling: 48 kHz and 24-bit
USB	USB Type C for software updates
Weight	5.1 lbs.

See All

Resources

Manual

Reviews

See Reviews

Lensrentals.com offers rentals ranging in length from 1 to 90 days. The shopping cart will automatically update the quoted price as you adjust the length of your rental. Our most common rental periods are shown below:

No Coverage

Lenscap

LenscapPlus

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$80.00	$443.00	$523.00	$174.33
4 days	$86.00	$469.00	$555.00	$138.75
7 days	$114.00	$600.00	$714.00	$102.00
10 days	$154.00	$784.00	$938.00	$93.80
14 days	$200.00	$994.00	$1194.00	$85.29
21 days	$268.00	$1309.00	$1577.00	$75.10
30 days	$336.00	$1624.00	$1960.00	$65.33
45 days	$439.00	$2096.00	$2535.00	$56.33
60 days	$513.00	$2438.00	$2951.00	$49.18
90 days	$661.00	$3120.00	$3781.00	$42.01

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$53.00	$443.00	$496.00	$165.33
4 days	$57.00	$469.00	$526.00	$131.50
7 days	$76.00	$600.00	$676.00	$96.57
10 days	$103.00	$784.00	$887.00	$88.70
14 days	$133.00	$994.00	$1127.00	$80.50
21 days	$179.00	$1309.00	$1488.00	$70.86
30 days	$224.00	$1624.00	$1848.00	$61.60
45 days	$293.00	$2096.00	$2389.00	$53.09
60 days	$342.00	$2438.00	$2780.00	$46.33
90 days	$441.00	$3120.00	$3561.00	$39.57

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$443.00	$147.67
4 days	$469.00	$117.25
7 days	$600.00	$85.71
10 days	$784.00	$78.40
14 days	$994.00	$71.00
21 days	$1309.00	$62.33
30 days	$1624.00	$54.13
45 days	$2096.00	$46.58
60 days	$2438.00	$40.63
90 days	$3120.00	$34.67
