DJI SDR Transmission Receiver

$30.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

DJI SDR Transmission Receiver

Resources

Camera Compatibility List

Quick Start Guide

Manual

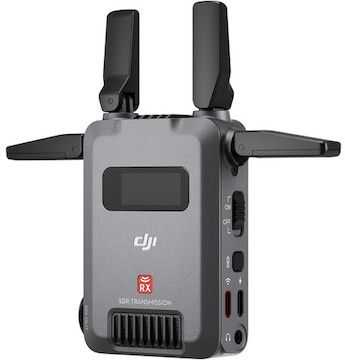

DJI SDR Transmission Receiver

The DJI SDR Transmission Receiver can be added to the SDR Transmission Combo for stable, long-range transmission. Key features include:

Receive & output up to 1080p60 video
SDR technology
HDMI & 3G-SDI video outputs
Wireless range of up to 1.9 miles

Q & A

Does this rental include batteries or cables?

No, this rental will only include the receiver.
If you are looking to use this system with a phone or tablet, we have the DJI Tablet Holder for SDR Transmission Receiver and DJI Phone Holder for SDR Transmission Receiver available for rental separately. These kits will include the required cables for use.
Need to just add a cable to your order? They’re a bit on the longer side, but we do have 3ft TB4 and 6ft TB4 cables available as well. We are looking to add to our inventory of compatible cables as they become available.

Is this compatible with the DJI Transmission system?

No, the DJI Transmission with High-Bright Monitor Combo operates with a different wireless protocol compared to the SDR Tri-Bandwidth Technology on the DJI SDR Transmission Combo.

Specifications

Brand	DJI
Format Support	Audio Format PCM Audio Wireless Video Compression Compressed Timecode Support No
Frequency Range	Non-DFS Frequencies 2.4 to 2.4835 GHz 5.725 to 5.85 GHz DFS Frequencies 5.47 to 5.725 GHz
Inputs/Outputs	Video I/O 1x HDMI (Unspecified Signal) Output 1x BNC (3G-SDI) Output 1x USB-C (Unspecified Signal) Output Embedded Audio HDMI/SDI/USB/Wireless Audio I/O 1x 1/8" / 3.5 mm Headphone Output Power I/O 1x USB-C (2 A / 9 VDC) Input Other I/O 1x USB-C (Firmware) Input
Item Type	Monitoring & Recording
Material	Plastic
Monitoring & Recording Type	Receiver
Mounting	1x 1/4"-20 Female (Bottom)
Operating Temperature	32 to 104°F
Physical	Dimensions 3.4 × 2.5 × 1.3″ (Excluding Antenna) Weight 5.11 oz (Including Antenna)
Power	Input Power 6.8 to 17.2 VDC 9 VDC at 2 A Battery Type 1x L-Series Power Consumption 8.3 W
Video Format	HDMI/SDI/USB 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Wireless	Wireless Range 1.9 Miles (Line-of-Sight) 656.2’ (Without Quality Loss) Channel Bandwidth 20 MHz Latency 35 ms RF Power 30 dBm Wi-Fi Wi-Fi 6 (802.11ax); Tri-Band (2.4 & 5 + 5 GHz) with MU-MIMO Support (2 × 2) Bluetooth No Mobile App Compatible Yes: Android & iOS Cellular Support No

See All

Includes

DJI SDR Transmission Receiver

Specifications

Brand	DJI
Format Support	Audio Format PCM Audio Wireless Video Compression Compressed Timecode Support No
Frequency Range	Non-DFS Frequencies 2.4 to 2.4835 GHz 5.725 to 5.85 GHz DFS Frequencies 5.47 to 5.725 GHz
Inputs/Outputs	Video I/O 1x HDMI (Unspecified Signal) Output 1x BNC (3G-SDI) Output 1x USB-C (Unspecified Signal) Output Embedded Audio HDMI/SDI/USB/Wireless Audio I/O 1x 1/8" / 3.5 mm Headphone Output Power I/O 1x USB-C (2 A / 9 VDC) Input Other I/O 1x USB-C (Firmware) Input
Item Type	Monitoring & Recording
Material	Plastic
Monitoring & Recording Type	Receiver
Mounting	1x 1/4"-20 Female (Bottom)
Operating Temperature	32 to 104°F
Physical	Dimensions 3.4 × 2.5 × 1.3″ (Excluding Antenna) Weight 5.11 oz (Including Antenna)
Power	Input Power 6.8 to 17.2 VDC 9 VDC at 2 A Battery Type 1x L-Series Power Consumption 8.3 W
Video Format	HDMI/SDI/USB 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Wireless	Wireless Range 1.9 Miles (Line-of-Sight) 656.2’ (Without Quality Loss) Channel Bandwidth 20 MHz Latency 35 ms RF Power 30 dBm Wi-Fi Wi-Fi 6 (802.11ax); Tri-Band (2.4 & 5 + 5 GHz) with MU-MIMO Support (2 × 2) Bluetooth No Mobile App Compatible Yes: Android & iOS Cellular Support No

See All

Resources

Camera Compatibility List

Quick Start Guide

Manual

Reviews

See Reviews

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$6.00	$21.00	$27.00	$9.00
4 days	$7.00	$23.00	$30.00	$7.50
7 days	$9.00	$30.00	$39.00	$5.57
10 days	$12.00	$41.00	$53.00	$5.30
14 days	$16.00	$53.00	$69.00	$4.93
21 days	$21.00	$71.00	$92.00	$4.38
30 days	$27.00	$89.00	$116.00	$3.87
45 days	$35.00	$116.00	$151.00	$3.36
60 days	$41.00	$135.00	$176.00	$2.93
90 days	$52.00	$174.00	$226.00	$2.51

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$4.00	$21.00	$25.00	$8.33
4 days	$5.00	$23.00	$28.00	$7.00
7 days	$6.00	$30.00	$36.00	$5.14
10 days	$8.00	$41.00	$49.00	$4.90
14 days	$11.00	$53.00	$64.00	$4.57
21 days	$14.00	$71.00	$85.00	$4.05
30 days	$18.00	$89.00	$107.00	$3.57
45 days	$23.00	$116.00	$139.00	$3.09
60 days	$27.00	$135.00	$162.00	$2.70
90 days	$35.00	$174.00	$209.00	$2.32

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$21.00	$7.00
4 days	$23.00	$5.75
7 days	$30.00	$4.29
10 days	$41.00	$4.10
14 days	$53.00	$3.79
21 days	$71.00	$3.38
30 days	$89.00	$2.97
45 days	$116.00	$2.58
60 days	$135.00	$2.25
90 days	$174.00	$1.93
