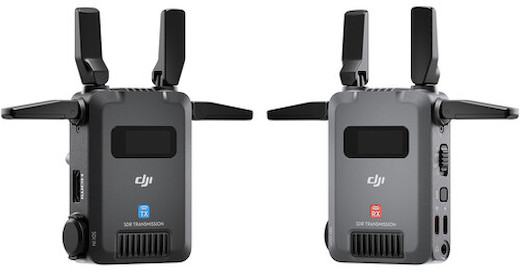

SDR Tri-Bandwidth Technology. The DJI SDR Transmission Combo is a transmitter and receiver duo designed with SDR tri-bandwidth technology to provide transmission distances up to 1.9 miles (10,000 feet) with a minimal latency of just 35 ms. This DJI SDR Transmission Transmitter is capable of transmitting 1080p60 footage to an endless amount of DJI SDR Transmission Receivers, this system is ideal for crowded production sets. This technology supports enhanced stability, interference resistance, penetration capabilities, auto-frequency hopping across the 2.4 GHz, 5.8 GHz, and DFS frequency bands, and even lets you transmit directly to your smartphone!

Receiving End. The included DJI SDR Transmission Receiver works in tandem with the transmitter to deliver stable, long distance 1080p60 transmission. Add as many of these receivers to the system as you’d like, because the amount is quite literally endless! The system is supported by the Ronin application on your iOS mobile device, and offers local recording, playback, and mainstream monitoring assistance tools such as LUTs, peaking, waveform, and false color. With the transmitter connected to the Ronin app in Broadcast mode, you can even switch between multiple cameras for quick and seamless monitoring.

Feature Packed System. Both the receiver and transmitter are supported with SDR technology, which allows metadata transmission from mainstream cinema cameras like ARRI and RED via the SDI input. To activate one-on-one real-time voice communication between the receiver and transmitter, a Voice Call feature is available on both devices. This allows for seamless, personal dialogue between the cinematographer and director as you please!

Gimbal Friendly. A perfect fit for RS gimbal setups, the SDR Transmission system supports PTP control over cameras through the Ronin app. The app will display functions like aperture, shutter, and ISO, allow you to adjust them as needed, and even remotely start/stop recording. For compatible cameras, please refer to the compatibility list.

Versatile Ports Available. The receiver provides the HDMI, SDI BNC, and USB-C outputs, and the transmitter provides the HDMI, SDI BNC, and USB-C inputs. Each device also sports a 3.5mm jack. The transmitter is capable of outputting up to three SDR and two WiFi signals in unison, while the receiver’s USB-C port can directly connect to a smartphone or tablet for remote monitoring.

Power Trip. Both the transmitter and receiver can be powered through their USB-C ports and a USB-C cable, but can also be powered by an L-Series battery. The transmitter can be powered through the DJI RS 4 Pro, RS 4, or RS 3 Pro gimbals with the included gimbal mount adapter.
