DJI SDR Transmission Transmitter

$30.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

DJI SDR Transmission Transmitter
DJI SDR TX 90° Gimbal Mounting Plate
DJI SDR Transmission Thumbscrew 1/4-20 × 1.5

Resources

Camera Compatibility List

Quick Start Guide

Manual

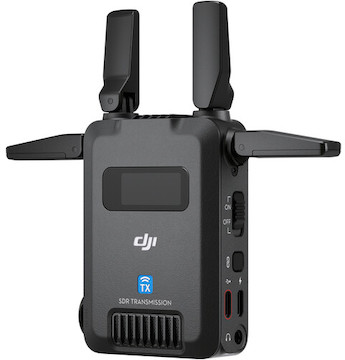

DJI SDR Transmission Transmitter

The DJI SDR Transmission Transmitter uses SDR technology to produce stable, long-range transmission for crowded production sets. Key features include:

Input & transmit up to 1080p60 video
Ronin gimbal compatible
HDMI & 3G-SDI video input
Wireless range of up to 1.9 miles

Q & A

Will this rental include any batteries or cables?

No, just the transmitter and gimbal mounting plate.
Need to add a cable to your order? They’re a bit on the longer side, but we do have 3ft TB4 and 6ft TB4 cables available as well. We are looking to add to our inventory of compatible cables as they become available.

Is this compatible with the DJI Transmission system?

No, the DJI Transmission with High-Bright Monitor Combo operates with a different wireless protocol compared to the SDR Tri-Bandwidth Technology on the DJI SDR Transmission Combo.

Specifications

Brand	DJI
Format Support	Audio Format PCM Audio Wireless Video Compression Compressed Timecode Support No
Frequency Range	Non-DFS Frequencies 2.4 to 2.4835 GHz 5.725 to 5.85 GHz DFS Frequencies 5.47 to 5.725 GHz
General	Operating Conditions 32 to 104°F Material of Construction Plastic Dimensions 3.4 × 2.5 × 1.3″ (Excluding Antenna) Weight 5.11 oz (Including Antenna)
Inputs/Outputs	Antenna I/O No Video I/O 1x HDMI (Unspecified Signal) Input 1x BNC (Unspecified SDI) Input Embedded Audio HDMI/SDI/USB/Wireless Audio I/O 1x 1/8" / 3.5 mm Headphone Output Power I/O 1x USB-C (2 A / 9 VDC) Input Other I/O 1x USB-C (Firmware) Input
Item Type	Monitoring & Recording
Monitoring & Recording Type	Transmitter
Mounting	1x 1/4"-20 Female (Bottom)
Power	Input Power 6.8 to 17.2 VDC 9 VDC at 2 A Battery Type 1x L-Series Power Consumption 8.2 W
Video Formats	HDMI/SDI/USB 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Wireless	Wireless Range 1.9 Miles (Line-of-Sight) 656.2’ (Without Quality Loss) Channel Bandwidth 20 MHz Latency 35 ms RF Power 30 dBm Wi-Fi Wi-Fi 6 (802.11ax); Tri-Band (2.4 & 5 + 5 GHz) with MU-MIMO Support (2 × 2) Bluetooth No Mobile App Compatible Yes: Android & iOS Cellular Support No

See All

Includes

DJI SDR Transmission Transmitter
DJI SDR TX 90° Gimbal Mounting Plate
DJI SDR Transmission Thumbscrew 1/4-20 × 1.5

Specifications

Brand	DJI
Format Support	Audio Format PCM Audio Wireless Video Compression Compressed Timecode Support No
Frequency Range	Non-DFS Frequencies 2.4 to 2.4835 GHz 5.725 to 5.85 GHz DFS Frequencies 5.47 to 5.725 GHz
General	Operating Conditions 32 to 104°F Material of Construction Plastic Dimensions 3.4 × 2.5 × 1.3″ (Excluding Antenna) Weight 5.11 oz (Including Antenna)
Inputs/Outputs	Antenna I/O No Video I/O 1x HDMI (Unspecified Signal) Input 1x BNC (Unspecified SDI) Input Embedded Audio HDMI/SDI/USB/Wireless Audio I/O 1x 1/8" / 3.5 mm Headphone Output Power I/O 1x USB-C (2 A / 9 VDC) Input Other I/O 1x USB-C (Firmware) Input
Item Type	Monitoring & Recording
Monitoring & Recording Type	Transmitter
Mounting	1x 1/4"-20 Female (Bottom)
Power	Input Power 6.8 to 17.2 VDC 9 VDC at 2 A Battery Type 1x L-Series Power Consumption 8.2 W
Video Formats	HDMI/SDI/USB 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Wireless	Wireless Range 1.9 Miles (Line-of-Sight) 656.2’ (Without Quality Loss) Channel Bandwidth 20 MHz Latency 35 ms RF Power 30 dBm Wi-Fi Wi-Fi 6 (802.11ax); Tri-Band (2.4 & 5 + 5 GHz) with MU-MIMO Support (2 × 2) Bluetooth No Mobile App Compatible Yes: Android & iOS Cellular Support No
