RED EPIC-W GEMINI 5K S35 Brain

Includes

  • RED EPIC-W GEMINI Brain w/integrated media bay
  • AC Power Adapter (DSMC) w/power cable
  • DSMC2 Base Expander
  • DSMC2 Lemo A Adapter
  • DSMC2 Standard OLPF (installed)
189178510625
157719479626981480969386469536778746

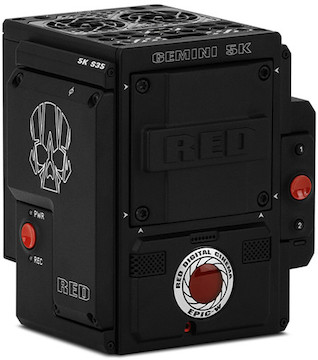

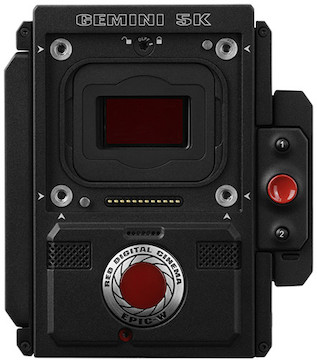

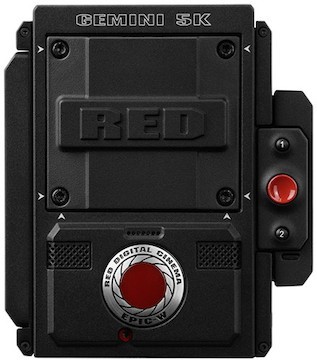

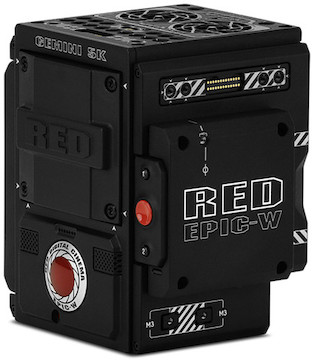

RED EPIC-W GEMINI 5K S35 Brain

While we no longer rent this product, we do carry the RED DSMC2 GEMINI 5K S35 Brain. Additionally, you may find alternatives on the left-hand side of this page (see Recommended section).

  • 5K, Super 35, dual-ISO, CMOS sensor

  • Frame rates up tp to 96fps at 5K & 300fps at 2K

  • Full-sensor 4K ProRes & DNx

  • Fully compatible with RED DSMC2 components

Read More

Q & A

  • Are there any known power compatibility issues with this brain?
    • Wooden Cable-less battery plates used with DSMC2 brains running firmware version 7.1 or newer require a firmware update to the plate before it can be recognized as a compatible module by the camera.

    • We’ve updated our copies in-house so if you rent a DSMC2 brain and cable-less plate from us, you’re all set! If you source a cable-less plate from somewhere else, you can go here for instructions on how to update the plate yourself.

  • Does this rental include a lens mount?
    • This rental does not include a lens mount. Links to available lens mounts can be found under the “Recommended” tab on the left side of this page or by searching here.

  • What do I need to operate this camera?
  • Specifications

    Brand

    RED

    Camcorder Type

    Cinema

    Camera Type

    Camcorder

    Imaging

    Maximum Resolution

    • 5120 × 3000
    Sensor
    • Type: Super 35, CMOS
    • Size: 30.72 × 18.00 mm (35.61mm diagonal)
    • Color Filter: Bayer
    • Shutter Type: Rolling
    Crop Factor
    • Approximately x 1.22
    ISO
    • Dynamic Range: 16.5 Stops
    • Sensitivity: 800 – 3200
    • Base ISO: 800 and 3200

    Inputs/Outputs

    Audio Inputs

    • 3.5mm (1/8") stereo mini-jack
    Audio Output
    • 3.5mm (1/8") stereo mini-jack
    Video Out
    • HDMI Type-A
    • BNC 3G-SDI
    Additional Inputs/Outputs
    • Sync: 1 × 4-pin 00B LEMO socket
    • Control: 1 × 4-pin 00B LEMO socket
    • DC In: 6-pin 1B LEMO socket

    Item Type

    Camera

    Physical

    Dimensions (W x H x D)

    • 4.57 × 4.76 × 1.50″
    Weight
    • 7.16 oz
    Accessory Mounts
    • Tripod Base: ¼-20 and ⅜-16
    • Additional: M3 and ¼-20

    Recording

    Formats

    • Video: REDCODE RAW, ProRes, DNx
    • Audio: 2-Channel 24-Bit 48.0 kHz
    Modes
    • REDCODE RAW: 5120 × 3000 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60 fps
    • ProRes422HQ 4:2:2: 4096 × 2160 at 23.98, 24, 25, 29.97 fps
    • ProRes422 4:2:2: 4096 × 2160 at 24, 25, 29.97 fps, 2048 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
    • ProRes422 4:2:2: 4096 × 2160 at 24, 25, 29.97 fps, 2048 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
    • ProRes422HQ 4:2:2: 2048 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
    • DNxHR 4:2:2 12-Bit: 4096 × 2160 at 23.98, 24, 25, 29.97 fps, 2048 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
    • DNxHR 4:2:2 8-Bit: 4096 × 2160 at 23.98, 24, 25, 29.97 fps
    • DNxHD 4:4:4 10-Bit: 1920 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
    • DNxHD 4:2:2 10-Bit: 1920 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
    • DNxHD 4:2:2 8-Bit: 1920 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
    Media
    • Mini-Mag

    Includes

    • RED EPIC-W GEMINI Brain w/integrated media bay
    • AC Power Adapter (DSMC) w/power cable
    • DSMC2 Base Expander
    • DSMC2 Lemo A Adapter
    • DSMC2 Standard OLPF (installed)

    Specifications

    Brand

    RED

    Camcorder Type

    Cinema

    Camera Type

    Camcorder

    Imaging

    Maximum Resolution

    • 5120 × 3000
    Sensor
    • Type: Super 35, CMOS
    • Size: 30.72 × 18.00 mm (35.61mm diagonal)
    • Color Filter: Bayer
    • Shutter Type: Rolling
    Crop Factor
    • Approximately x 1.22
    ISO
    • Dynamic Range: 16.5 Stops
    • Sensitivity: 800 – 3200
    • Base ISO: 800 and 3200

    Inputs/Outputs

    Audio Inputs

    • 3.5mm (1/8") stereo mini-jack
    Audio Output
    • 3.5mm (1/8") stereo mini-jack
    Video Out
    • HDMI Type-A
    • BNC 3G-SDI
    Additional Inputs/Outputs
    • Sync: 1 × 4-pin 00B LEMO socket
    • Control: 1 × 4-pin 00B LEMO socket
    • DC In: 6-pin 1B LEMO socket

    Item Type

    Camera

    Physical

    Dimensions (W x H x D)

    • 4.57 × 4.76 × 1.50″
    Weight
    • 7.16 oz
    Accessory Mounts
    • Tripod Base: ¼-20 and ⅜-16
    • Additional: M3 and ¼-20

    Recording

    Formats

    • Video: REDCODE RAW, ProRes, DNx
    • Audio: 2-Channel 24-Bit 48.0 kHz
    Modes
    • REDCODE RAW: 5120 × 3000 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60 fps
    • ProRes422HQ 4:2:2: 4096 × 2160 at 23.98, 24, 25, 29.97 fps
    • ProRes422 4:2:2: 4096 × 2160 at 24, 25, 29.97 fps, 2048 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
    • ProRes422 4:2:2: 4096 × 2160 at 24, 25, 29.97 fps, 2048 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
    • ProRes422HQ 4:2:2: 2048 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
    • DNxHR 4:2:2 12-Bit: 4096 × 2160 at 23.98, 24, 25, 29.97 fps, 2048 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
    • DNxHR 4:2:2 8-Bit: 4096 × 2160 at 23.98, 24, 25, 29.97 fps
    • DNxHD 4:4:4 10-Bit: 1920 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
    • DNxHD 4:2:2 10-Bit: 1920 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
    • DNxHD 4:2:2 8-Bit: 1920 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
    Media
    • Mini-Mag

    RED EPIC-W GEMINI 5K S35 Brain

    $1080.00
    /
    7 Day

    Rental
