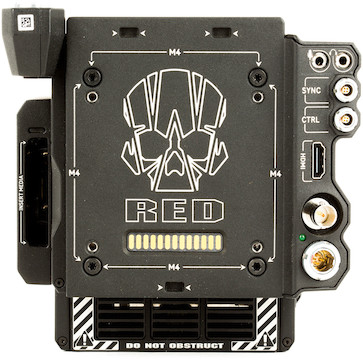

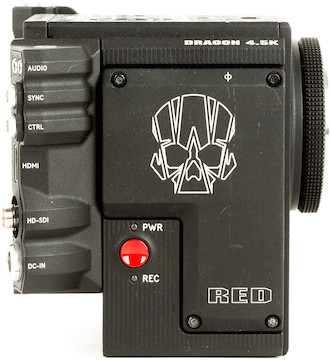

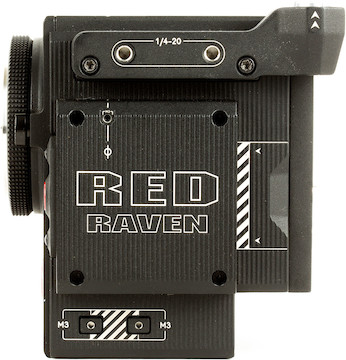

RED RAVEN Brain

Includes

RED RAVEN w/integrated media bay and EF lens mount
AC Power Adapter (DSMC) w/power cable

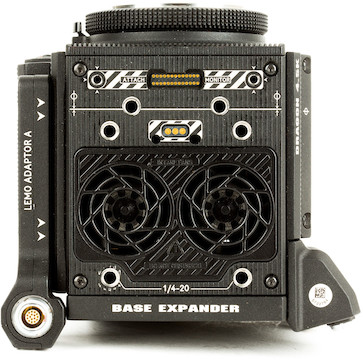

DSMC2 Base Expander
DSMC2 Lemo A Adapter

Resources

Raven Operation Guide

Red Tools

Sample R3D Files

RED RAVEN Brain

The used RED Raven Brain is the smallest, most affordable RED camera to date. Key features include:

RED Dragon sensor with a 1.87 crop factor
4K capture at up to 120 fps
Integrated Canon EF mount
Compact build and intuitive layout

LR's Take

In General

The RED Raven is the perfect mix of everything we love about RED innovation without the headache of making sure to remember every modular detail. We’ve seen a complete novice master this camera in ...

Q & A

What do I need to operate this camera?

At minimum, you’ll need these items to operate this camera: a RED Mini-Mag SSD; a RED Mini-Mag Station; and a menu-interface solution such as the RED DSMC2 Sidekick (external monitor required for live view), a RED Touch LCD, or a DSMC2 Touch LCD.

Are there any known power compatibility issues with this brain?

Wooden Cable-less battery plates used with DSMC2 brains running firmware version 7.1 or newer require a firmware update to the plate before it can be recognized as a compatible module by the camera.
We’ve updated our copies in-house so if you rent a DSMC2 brain and cable-less plate from us, you’re all set! If you source a cable-less plate from somewhere else, you can go here for instructions on how to update the plate yourself.

Are REDMAG SSDs compatible with this camera?

REDMAG SSDs aren’t compatible with this camera.

Specifications

Audio	Integrated dual channel digital stereo microphones, uncompressed, 24-bit 48 kHz Optional 2 additional channels with DSMC2 expander module, uncompressed, 24-bit 48 kHz
Brand	RED
Camcorder Type	Cinema
Camera Type	Camcorder
DC Input	Proprietary Connector
Data Rates	Up to 140 MB/s using RED MINI-MAG
Dynamic Range	16.5 stops

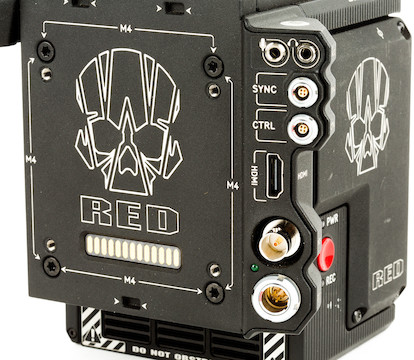

Inputs/Outputs	Video Outputs HD-SDI Output BNC (10-bit) HDMI Output Type A
Item Type	Camera and Cinema Cameras
Maximum Frame Rates	Full Format (1.9:1): 4.5K (4608 X 2160): 120 fps 4K (4096 × 2160): 120 fps 3K (3072 × 1620): 150 fps 2K (2048 × 1080): 240 fps Scope (2.4:1): 4.5K (4608 × 1944): 120 fps 4K (4096 × 1782): 150 fps 3K (3072 × 1296): 200 fps 2K (2048 × 864): 300 fps *REDCODE values and max frame rates may vary based on selected acquisition format, aspect ratio, project time base, and SSD.
Memory Type	Red Mini-Mag SSD
Recording Formats	REDCODE: 3:1-22:1 REDCODE for 4.5K Full Format (4608 × 2160) at 24 fps 8:1-22:1 REDCODE for 4.5K Full Format (4608 × 2160) at 60 fps 3:1-22:1 REDCODE for 4K Full Format (4096 × 2160) at 24 fps 7:1-22:1 REDCODE for 4K Full Format (4096 × 2160) at 60 fps Apple ProRes: 2048 × 1080: ProRes 422 LT/422/422 HQ up to 60 fps AVID DNx: 1920 × 1080: DNxHD LB 8-bit up to 60 fps and
Sensor	RED DRAGON 9.9 Megapixel CMOS
Sensor Size	23.0 mm x 10.8 mm (Diagonal: 25.5 mm)
Weight	3.5 lbs (BRAIN with Integrated Media Bay and Canon Lens Mount)
