SmallHD Cine 7 HDMI / SDI Gold Mount Monitor w/ ARRI Control

$158.00
/
7 Day

Rental

Available 10/22/24

Renting this item will adjust your rental dates.

Interested in purchasing?

Includes

  • Cine 7 monitor w/ ARRI control upgrade
  • 36" Alexa Mini/Amira control cable
  • Gold Mount battery plate
  • D-tap to 2-pin LEMO power cable
  • Soft bag

Not Included

  • Gold Mount batteries
  • Mounting hardware

Resources

  • User Guide
  • SmallHD Cine 7 HDMI / SDI Gold Mount Monitor w/ ARRI Control

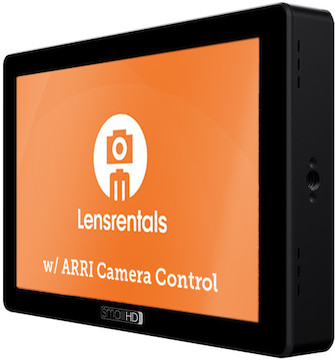

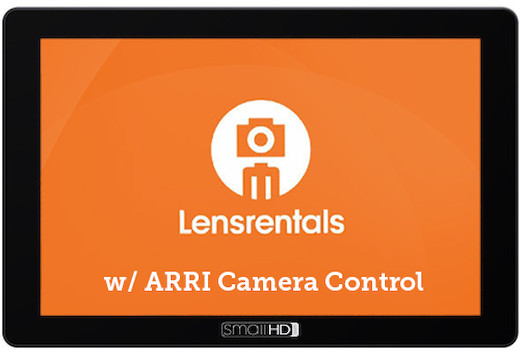

    The SmallHD Cine 7 HDMI / SDI Gold Mount Monitor w/ ARRI Control is a daylight viewable, 7" 1920 × 1200 monitor, upgraded for ARRI Alexa Mini and Amira camera control. Key features include:

    • Control basic ARRI Alexa Mini, Amira settings

    • Assign scopes, overlays, and monitoring tools to swipeable pages

    • Rugged 7-inch 1920 × 1200, high bright display

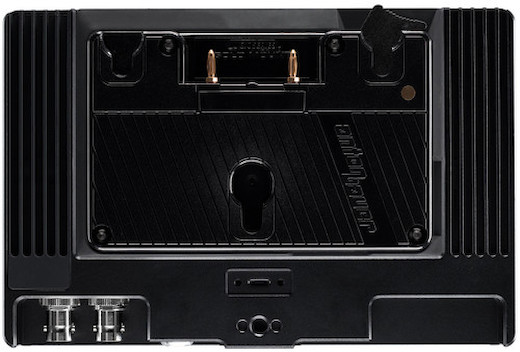

    • D-Tap and Gold Mount battery plate included

    Read More

    Q & A

  • Is this monitor only for ARRI cameras?
    • This monitor features basic camera control for ARRI ALEXA Mini, ALEXA Mini LF, and AMIRA cameras. If you’d like a comparable monitor without a camera control option, we recommend the SmallHD 702 Touch.

  • Does this monitor work with the ARRI ALEXA Mini LF?
  • Is mounting hardware included?
    • No. You’ll need your own monitor arm with a 1/4"-20 threaded screw to attach this monitor to a camera rig.

  • How is this monitor powered?
    • We include a D-Tap power cable and Gold Mount battery plate with this monitor. We do not include Gold Mount batteries or a charger but we have options available separately.

  • Does this rental include HDMI or SDI cables?
    • This rental doesn’t include HDMI or SDI cables. If you need HDMI/SDI cables, you can find them here.

  • Specifications

    Brand

    SmallHD

    Display

    Screen Type

    • 7“ IPS LCD
    Resolution
    • 1920 × 1200
    Pixel Density
    • 322 PPI
    Bit Depth
    • 10-bit display/16-bit color processing
    Brightness
    • 1800 nits

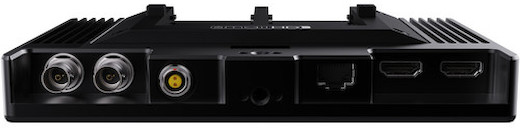

    Inputs/Outputs

    Video Inputs

    • 3G-SDI
    • HDMI Type A
    Video Outputs
    • 3G-SDI
    • HDMI Type A
    3G-SDI Formats
    • 10-Bit 4:2:2 YCC
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 120/119.88/100/60/59.94/50
    • 720p: 60/59.94/50/30/29.97/25/24/23.98
    • 576p: 200/100/50
    • 576i: 200/100/50
    • 480p: 240/239.76/120/119.88/100/60/59.94
    • 480i: 240/239.76/120/119.88/100/60/59.94
    HDMI Formats
    • 8/10/12/16-Bit 4:4:4/4:2:2 YCC
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 120/119.88/100/60/59.94/50
    • 720p: 60/59.94/50/30/29.97/25/24/23.98
    • 576i: 50
    • 480i: 59.94
    Additional Inputs/Outputs
    • ⅛” Headphone
    • Micro USB

    Item Type

    Monitoring and Production Monitors

    Monitoring Type

    Monitor

    Physical

    Dimensions

    • 7.09 × 4.67 × 1.29″
    Weight
    • 20 oz (without battery)

    Includes

    • Cine 7 monitor w/ ARRI control upgrade
    • 36" Alexa Mini/Amira control cable
    • Gold Mount battery plate
    • D-tap to 2-pin LEMO power cable
    • Soft bag

    Not Included

    • Gold Mount batteries
    • Mounting hardware

    Specifications

    Brand

    SmallHD

    Display

    Screen Type

    • 7“ IPS LCD
    Resolution
    • 1920 × 1200
    Pixel Density
    • 322 PPI
    Bit Depth
    • 10-bit display/16-bit color processing
    Brightness
    • 1800 nits

    Inputs/Outputs

    Video Inputs

    • 3G-SDI
    • HDMI Type A
    Video Outputs
    • 3G-SDI
    • HDMI Type A
    3G-SDI Formats
    • 10-Bit 4:2:2 YCC
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 120/119.88/100/60/59.94/50
    • 720p: 60/59.94/50/30/29.97/25/24/23.98
    • 576p: 200/100/50
    • 576i: 200/100/50
    • 480p: 240/239.76/120/119.88/100/60/59.94
    • 480i: 240/239.76/120/119.88/100/60/59.94
    HDMI Formats
    • 8/10/12/16-Bit 4:4:4/4:2:2 YCC
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 120/119.88/100/60/59.94/50
    • 720p: 60/59.94/50/30/29.97/25/24/23.98
    • 576i: 50
    • 480i: 59.94
    Additional Inputs/Outputs
    • ⅛” Headphone
    • Micro USB

    Item Type

    Monitoring and Production Monitors

    Monitoring Type

    Monitor

    Physical

    Dimensions

    • 7.09 × 4.67 × 1.29″
    Weight
    • 20 oz (without battery)
